YH50V-JRF (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )2Y,3Y#

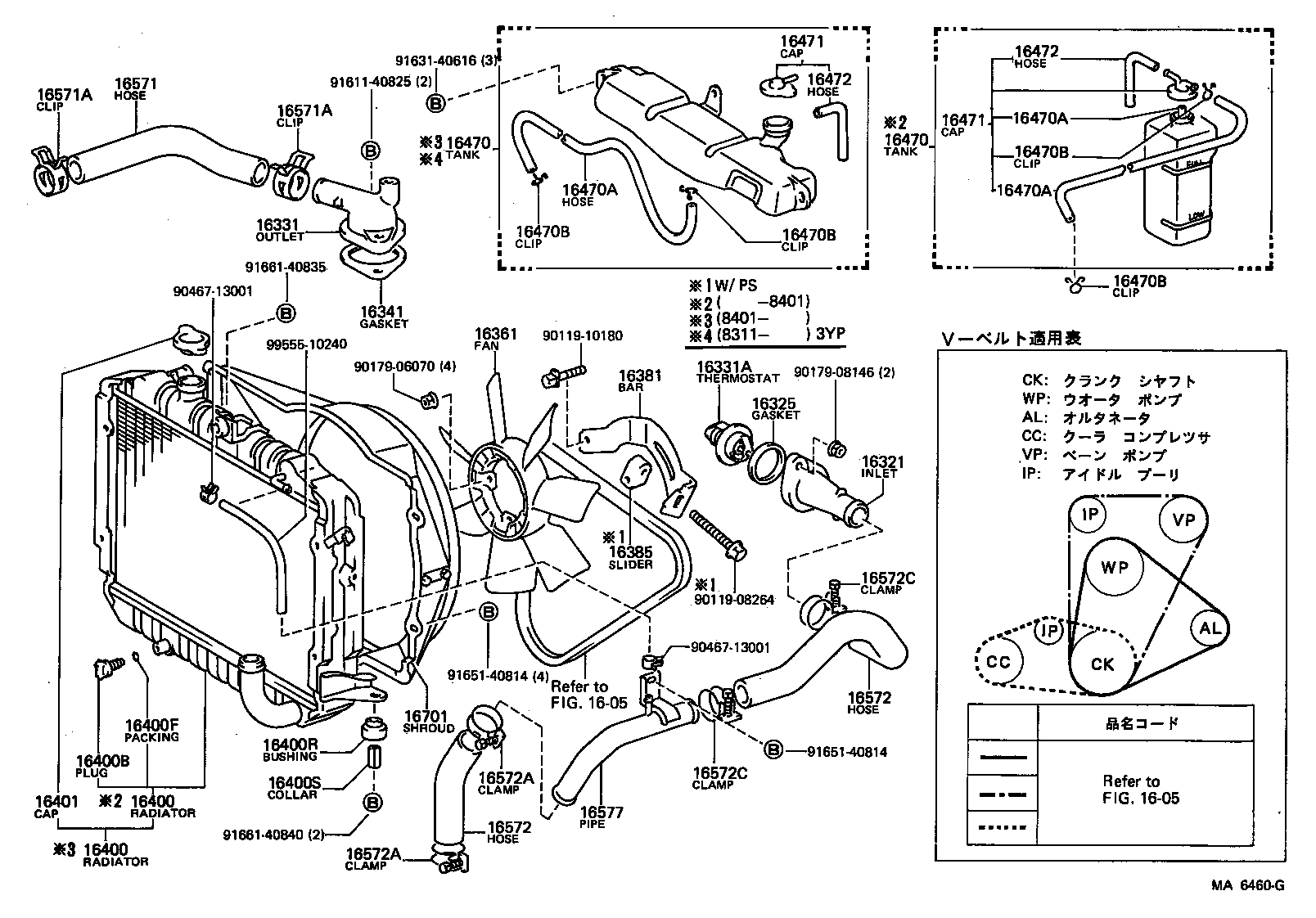

Click highlighted areas on diagram

diagram 1605 1605 16321 16325 16331 16331A 16341 16361 16381 16385 16400 16400 16400B 16400F 16400R 16400S 16401 16470 16470 16470A 16470A 16470A 16470B 16470B 16470B 16470B 16471 16471 16472 16472 16571 16571A 16571A 16572 16572 16572A 16572A 16572C 16572C 16577 16701 9011908264 9011910180 9017906070 9017908146 9046713001 9046713001 9161140825 9163140616 9165140814 9165140814 9166140835 9166140840 9955510240
Part # Description Qty Price
16321 - INLET, WATER
16321-71010

2Y,3Y#..YH5#,6#,71

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63010

2Y,3Y#..YH5#,6#,71

 1
16331 - OUTLET, WATER
16331-71010

2Y,3Y#..YH5#,6#,71

 1
16331A - THERMOSTAT
90916-03046

2Y,3Y#..YH5#,6#,71

*WAX 82−95

 1
16341 - GASKET, WATER OUTLET
16341-71010

2Y,3Y#..YH5#,6#,71

 1
16361 - FAN
16361-38010

2Y,3Y#..YH5#,6#,71

 1
16381 - BAR, FAN BELT ADJUSTING
16381-71010

2Y,3Y#..YH5#,6#,71

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-71010

2Y,3Y#..YH5#,6#,71

W/PS

 1
16400 - RADIATOR ASSY
16410-72040

2Y..YH50

 1
16400 - RADIATOR ASSY
16410-72040

2Y..YH50

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24200

2Y,3Y#..YH5#,6#,71

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24200

2Y,3Y#..YH5#,6#,71

 1
16400R - BUSHING(FOR RADIATOR)
90540-10019

2Y,3Y#..YH5#,6#,71

 2
16400S - COLLAR(FOR RADIATOR)
90440-11042

2Y,3Y#..YH5#,6#,71

 2
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

2Y,3Y#..YH5#,6#,71

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54030

2Y,3Y#..YH5#,61,71

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-54030

2Y,3Y#..YH5#,61,71

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

2Y,3Y#..YH5#,61,71

*H,L=900

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

2Y,3Y#..YH5#,61,71

*H,L=900

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90099-33534

2Y,3Y#..YH5#,61,71

*H,L=900

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y#..YH5#,6#,71

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y#..YH5#,6#,71

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y#..YH5#,6#,71

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

2Y,3Y#..YH5#,6#,71

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54040

2Y,3Y#..YH5#,61,71

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-54040

2Y,3Y#..YH5#,61,71

 1
16472 - HOSE, BREATHER
85338-30010

2Y,3Y#..YH5#,61,71

 1
16472 - HOSE, BREATHER
85338-30010

2Y,3Y#..YH5#,61,71

 1
16571 - HOSE, RADIATOR, INLET
16571-72020

2Y,3Y#..YH5#,6#,71

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y,3Y#..YH5#,6#,71

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

2Y,3Y#..YH5#,6#,71

 2
16572 - HOSE, RADIATOR, OUTLET
16572-72020

2Y,3Y#..YH5#,6#,71

WATER PUMP SIDE

 1
16573-54030

2Y,3Y#..YH5#,6#,71

RADIATOR SIDE

 1
16572 - HOSE, RADIATOR, OUTLET
16572-72020

2Y,3Y#..YH5#,6#,71

WATER PUMP SIDE

 1
16573-54030

2Y,3Y#..YH5#,6#,71

RADIATOR SIDE

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

2Y,3Y#..YH5#,6#,71

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90460-47036

2Y,3Y#..YH5#,6#,71

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10440

2Y,3Y#..YH5#,6#,71

 2
16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)
96111-10440

2Y,3Y#..YH5#,6#,71

 2
16577 - PIPE, RADIATOR, NO.7
16577-72010

2Y,3Y#..YH5#,6#,71

 1
16701 - SHROUD SUB-ASSY, FAN
16701-72010

2Y,3Y#..YH5#,6#,71

 1
Common parts
90119-08264
90119-10180
90179-06070
90179-08146
90467-13001
91611-40825
91631-40616
91651-40814
91661-40835
91661-40840
99555-10240
