YH50V-JRF (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )2Y,3Y#

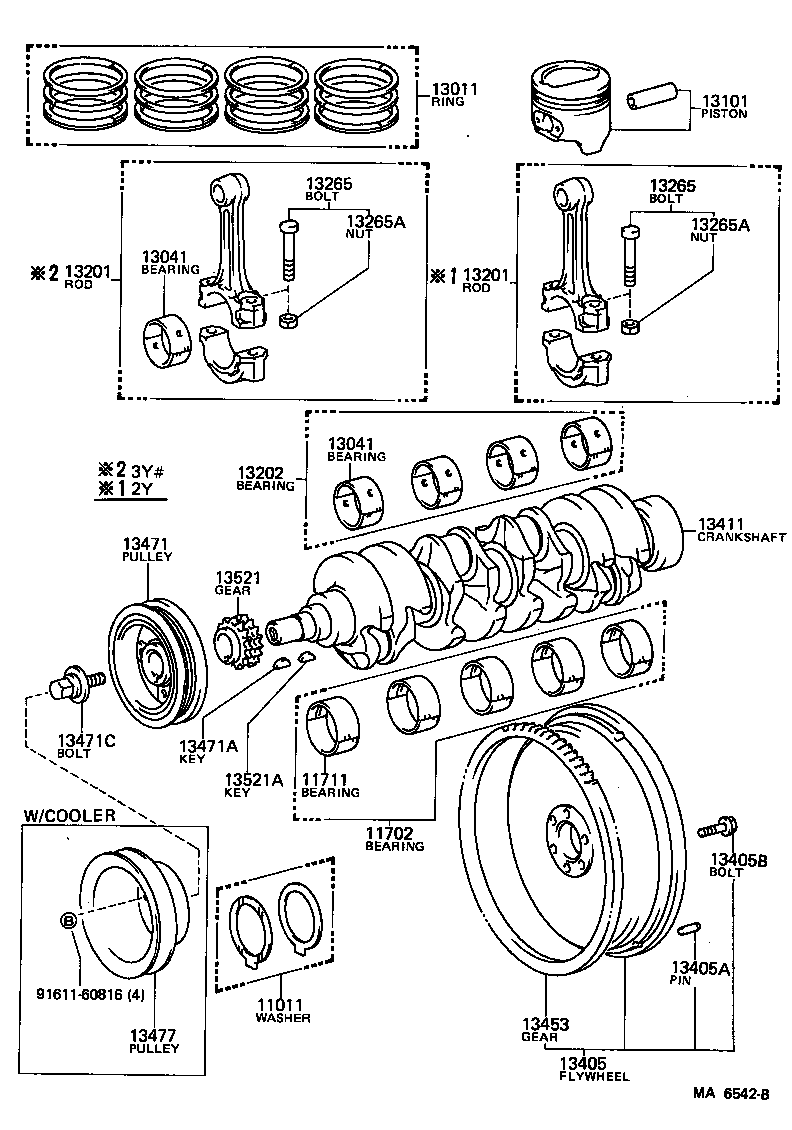

Click highlighted areas on diagram

diagram 11011 11702 11711 13011 13041 13041 13101 13201 13201 13202 13265 13265 13265A 13265A 13405 13405A 13405B 13411 13453 13471 13471A 13471C 13477 13521 13521A 9161160816
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-25010

2Y,3Y#..YH5#,6#,71

STD

 1
11711 - BEARING, CRANKSHAFT
11701-7102001

2Y,3Y#..YH5#,6#,71

MARK"1",MARK 1

 5
11701-7102002

2Y,3Y#..YH5#,6#,71

MARK"2",MARK 2

 5
11701-7102003

2Y,3Y#..YH5#,6#,71

MARK"3",MARK 3

 5
13011 - RING SET, PISTON
13011-71020

2Y,3Y#..YH5#,6#,71

STD,STD

 1
13013-71020

2Y,3Y#..YH5#,6#,71

O/S 0.50,O/S 0.50

 1
13015-71020

2Y,3Y#..YH5#,6#,71

O/S 1.00,O/S 1.00

 1
13014-71020

2Y,3Y#..YH5#,6#,71

O/S 0.75,O/S 0.75

 1
13041 - BEARING, CONNECTING ROD
13041-7102107

2Y,3Y#..YH5#,6#,71

MARK"7",MARK 7

 4
13041-7102106

2Y,3Y#..YH5#,6#,71

MARK"6",MARK 6

 4
13041-7102108

2Y,3Y#..YH5#,6#,71

MARK"8",MARK 8

 4
13041 - BEARING, CONNECTING ROD
13041-7102107

2Y,3Y#..YH5#,6#,71

MARK"7",MARK 7

 4
13041-7102106

2Y,3Y#..YH5#,6#,71

MARK"6",MARK 6

 4
13041-7102108

2Y,3Y#..YH5#,6#,71

MARK"8",MARK 8

 4
13101 - PISTON SUB-ASSY, W/PIN
13104-72010

2Y..YH50

O/S 0.75,O/S 0.75

 4
13103-72010

2Y..YH50

O/S 0.50,O/S 0.50

 4
13105-72010

2Y..YH50

O/S 1.00,O/S 1.00

 4
13101-72010

2Y..YH50

STD,STD

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-71011

2Y..YH50

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-71011

2Y..YH50

 4
13265 - BOLT, CONNECTING ROD
13265-29025

2Y,3Y#..YH5#,6#,71

 8
13265 - BOLT, CONNECTING ROD
13265-29025

2Y,3Y#..YH5#,6#,71

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2Y,3Y#..YH5#,61,71

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09195

2Y,3Y#..YH5#,61,71

 8
13405 - FLYWHEEL SUB-ASSY
13405-79055

2Y..YH50

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-08054

2Y,3Y#..YH5#,6#,71..MTM

長さ=23,外径=8,L=23,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90105-10042

2Y,3Y#..YH5#,6#,71..MTM

 6
13411 - CRANKSHAFT
13411-72010

2Y..YH50

 1
13453 - GEAR, FLYWHEEL RING
13453-20010

2Y,3Y#..YH5#,6#,71..MTM

N=115

 1
13471 - PULLEY, CRANKSHAFT
13408-71010

2Y,3Y#..YH5#,6#,71

 1
13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
90280-05010

2Y,3Y#..YH5#,6#,71

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90105-14013

2Y,3Y#..YH5#,6#,71

 1
13477 - PULLEY, CRANKSHAFT, NO.2
88451-28010

2Y,3Y#..YH5#,6#,71

W/COOLER

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-33010

2Y,3Y#..YH5#,6#,71

N=18

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-05010

2Y,3Y#..YH5#,6#,71

 1
Common parts
91611-60816
