YH50V-JDFE (1982)
Toyota Hiace Van,Wagon
(8212- )LH60,61,YH61..ST ; (8212- )LH5#,66,7#,YH5#,62,71..COM,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26020 |
LH5#,6#,7#..(COM,V)..ST |
1 | ||
| 77017-26010 |
YH61..ST;YH5#,62,71..COM,V |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26080 |
LH5#,6#,7#..(COM,V)..ST |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 90923-01274 |
LH5#,6#,7#..(COM,V)..ST |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LH5#,6#,7# |
1 | ||
| 77023-12050 |
YH5#,6#,71 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
YH5#,6#,71 |
1 | ||
| 77310-35061 |
LH5#,6#,7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-26110 |
YH50,52,6#,71..ST |
1 | ||
| 77100-26120 |
LH5#,6#,7#..(COM,V)..ST |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-26010 |
LH5#,6#,7#..ST |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-95J00 |
YH50,61..V LPG PACKAGE |
1 | ||
| 77201-26040 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-24012 |
LH5#,6#,7#,YH5#,6#,71..ST *H,L=340 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-26040 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-95J00 |
LH5#,6#,7#,YH5#,61,71..(COM,V)..ST |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26150 |
YH5#..VSG |
1 | ||
| 77205-95J01 |
YH50..LPG LPG PACKAGE |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26150 |
YH5#..VSG |
1 | ||
| 77205-95J01 |
YH50..LPG LPG PACKAGE |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26150 |
YH5#..VSG |
1 | ||
| 77205-95J01 |
YH50..LPG LPG PACKAGE |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 95332-08030 |
LH5#,6#,7# *H,L=280,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 95332-08030 |
LH5#,6#,7# *H,L=280,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
YH61..ST;YH5#,62,71..COM,V *H,L=300 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
YH61..ST;YH5#,62,71..COM,V *H,L=300 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-26060 |
YH5#,6#,71 |
1 | ||
| 77255 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-26140 |
YH5#..VSG |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
YH5#,6#,71 *H,L=180 |
1 | ||
| 77255B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.2) | ||||
| 90923-01274 |
YH61..ST;YH5#,62,71..COM,V |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-26030 |
YH5#,6#,71..ST |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06060 |
YH5#,6#,71 *H,L=500 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-26010 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-26010 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 77267 - COVER, FUEL EVAPORATIVE TUBE | ||||
| 77267-26020 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26050 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-26070 |
YH5#..VSG |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-26070 |
YH5#..VSG |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-26070 |
YH5#..VSG |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-13001 |
LH5#,6#,7# L=460 |
1 | ||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-13001 |
LH5#,6#,7# L=460 |
1 | ||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LH5#,6#,7#,YH5#,6#,71..COM,V *H,L=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LH5#,6#,7#,YH5#,6#,71..COM,V *H,L=300 |
1 | ||
| 77293 - PACKING, FUEL TANK, LOWER | ||||
| 77293-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77340-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
LH5#,6#,7# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60050 |
YH5#,6#,71 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-14096 |
YH5#,6#,71 *H,L=490,TO FEED PIPE |
1 | ||
| 95411-10630 |
YH5#,6#,71 *H,L=100,ﾏｰｸ=#6,3 WAY |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-14096 |
YH5#,6#,71 *H,L=490,TO FEED PIPE |
1 | ||
| 95411-10630 |
YH5#,6#,71 *H,L=100,ﾏｰｸ=#6,3 WAY |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 90445-14102 |
YH5#,6#,71 *H,L=60 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95332-08060 |
YH5#,6#,71 *H,L=440 |
1 | ||
| 77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 23818-72010 |
YH5#,6#,71 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
YH5#,6#,71 |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26050 |
YH5#,6#,71 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YH5#,6#,71 *H,L=200 |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90445-08224 |
YH5#,6#,71 *H,L=1300 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-32010 |
YH5#,6#,71 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-26010 |
YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-06070 | ||||
| 90461-08474 | ||||
| 90461-08484 | ||||
| 90461-08583 | ||||
| 90461-08649 | ||||
| 90461-10606 | ||||
| 90461-10620 | ||||
| 90462-16028 | ||||
| 90464-00132 | ||||
| 90464-00232 | ||||
| 90464-00239 | ||||
| 90464-00301 | ||||
| 90480-01104 | ||||
| 90480-01137 | ||||
| 90480-14003 | ||||
| 90480-31001 | ||||
| 90480-92001 | ||||
| 90541-09024 | ||||
| 90949-01060 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 91656-40816 | ||||
| 91656-40820 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 93381-16012 | ||||
| 96111-10620 | ||||
| 96112-10250 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20906 | ||||

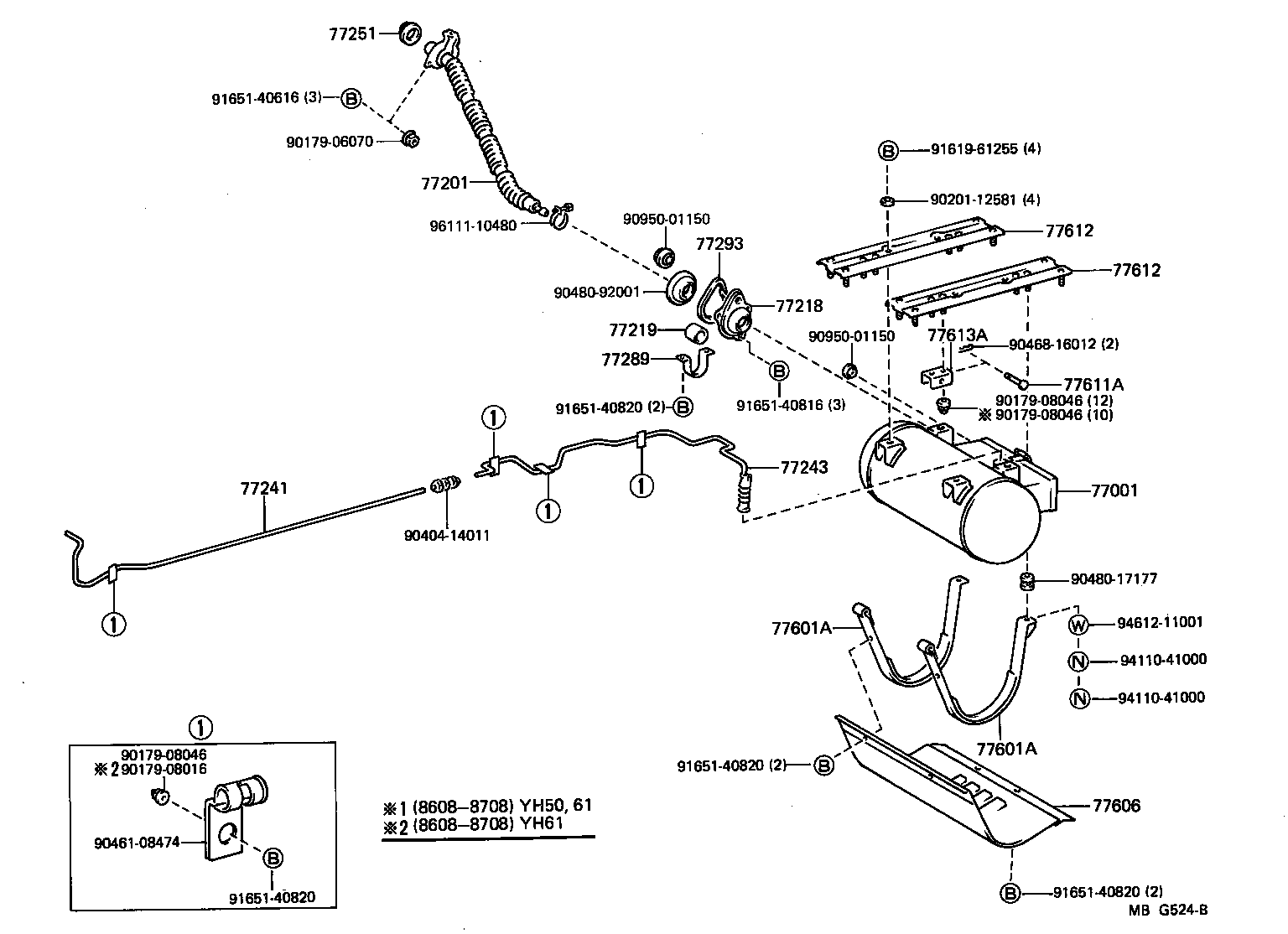

(8311-8508)LPG ; (8608-8708)LPG
LPG PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001 - TANK ASSY, FUEL (LPG) | ||||
| 77100-95J00 |
YH50,61..LPG LPG PACKAGE |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-95J00 |
YH50,61..V LPG PACKAGE |
1 | ||
| 77201-26040 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-95J00 |
LH5#,6#,7#,YH5#,61,71..(COM,V)..ST |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-96801 |
YH50,61..LPG LPG PACKAGE |
1 | ||
| 77219-96801 |
YH50,61..V LPG PACKAGE |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26150 |
YH5#..VSG |
1 | ||
| 77205-95J01 |
YH50..LPG LPG PACKAGE |
1 | ||
| 77243 - TUBE, FUEL MAIN, NO.3 | ||||
| 77207-95J00 |
YH50,61..LPG LPG PACKAGE |
1 | ||
| 77207-95J00 |
YH50,61..V LPG PACKAGE |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-95J00 |
YH50,61..LPG LPG PACKAGE |
1 | ||
| 77293 - PACKING, FUEL TANK, LOWER | ||||
| 77293-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-95J00 |
YH50,61..LPG LPG PACKAGE |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-95J00 |
YH50,61..LPG LPG PACKAGE |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-95J00 |
YH50,61..LPG LPG PACKAGE |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08009 |
YH50,61..LPG LPG PACKAGE |
2 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-95J00 |
YH50,61..LPG LPG PACKAGE,LH |
1 | ||
| 77501-95J00 |
YH50,61..LPG LPG PACKAGE,RH |
1 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-95J00 |
YH50,61..LPG LPG PACKAGE,LH |
1 | ||
| 77501-95J00 |
YH50,61..LPG LPG PACKAGE,RH |
1 | ||
| 77613A - BRACKET, FUEL TANK BAND, NO.1 | ||||
| 77612-95J00 |
YH50,61..LPG LPG PACKAGE |
2 | ||
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08016 | ||||
| 90179-08046 | ||||
| 90201-12581 | ||||
| 90404-14011 | ||||
| 90461-08474 | ||||
| 90468-16012 | ||||
| 90480-17177 | ||||
| 90480-92001 | ||||
| 90950-01150 | ||||
| 91619-61255 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 94110-41000 | ||||
| 94612-11001 | ||||
| 96111-10480 | ||||
