YH50V-JDFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 2Y 3YP
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8212- )

Click highlighted areas on diagram

diagram 51900 51900 51908 51938 51938D 51938E 51943 51944 51955B 51956B 9010912015 9011908190 9011908216 9020112581 9165140820 9165140820
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-26100

LH50,51,YH5#..V

185R14

 1
51903-26090

LH50,YH50..V

6.50-14

 1
51900 - CARRIER ASSY, SPARE WHEEL
51903-26100

LH50,51,YH5#..V

185R14

 1
51903-26090

LH50,YH50..V

6.50-14

 1
51938 - LOCK, SPARE WHEEL CARRIER
51938-28020

LH5#,6#,7#,YH5#,6#,71

 1
51938D - TUBE(FOR SPARE WHEEL CARRIER BOLT)
90440-17005

LH5#,6#,7#,YH5#,6#,71

 1
51938E - PLATE, SPARE WHEEL CARRIER LOCK
51937-26010

LH5#,6#,7#,YH5#,6#,71

 1
51943 - BRACKET, SPARE WHEEL CARRIER, NO.1
51943-26050

LH5#,YH5#..V

 1
51944 - BRACKET, SPARE WHEEL CARRIER, NO.2
51944-26040

LH5#,YH50,52..V

 1
51955B - HINGE, SPARE WHEEL CARRIER, NO.1
51955-26010

LH5#,6#,7#,YH5#,6#,71..V..ST

 1
51956B - HINGE, SPARE WHEEL CARRIER, NO.2
51956-26020

LH5#,6#,7#,YH5#,6#,71..V..ST

 1
Common parts
90109-12015
90119-08190
90119-08216
90201-12581
91651-40820

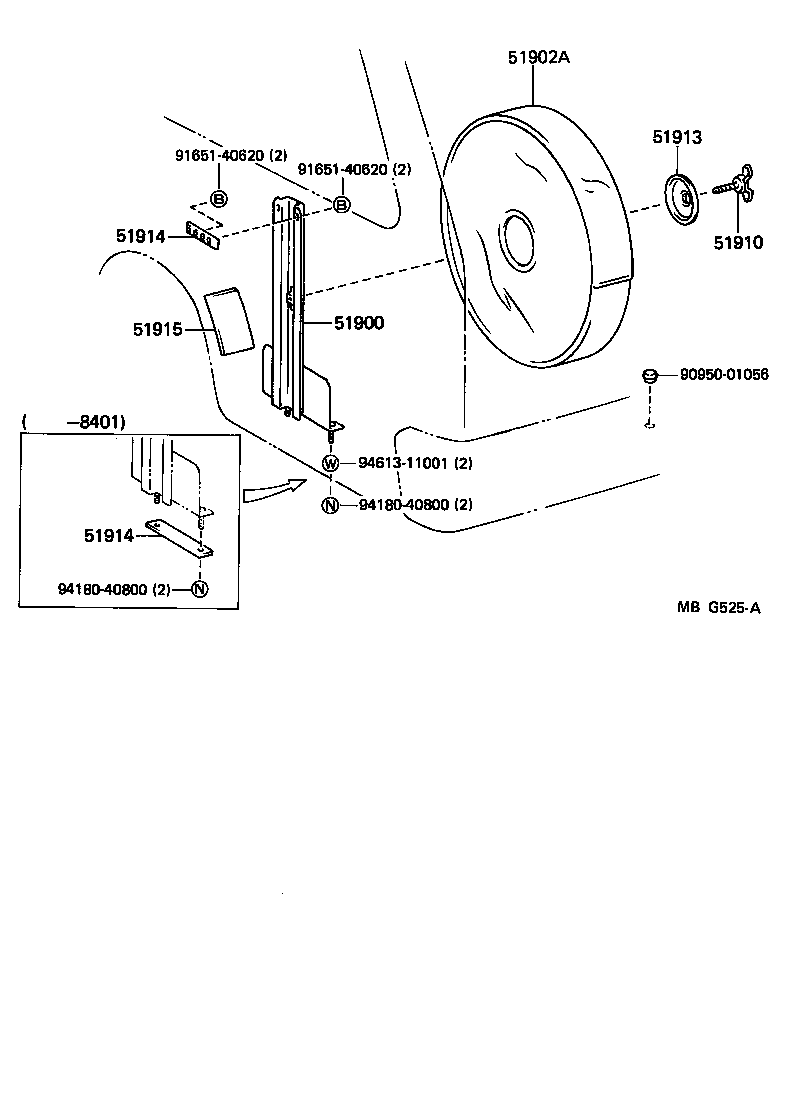

ILLUST NO. 2 OF 2(8311- )LPG

Click highlighted areas on diagram

LPG PACKAGE

diagram 51900 51902A 51910 51913 51914 51914 51915 9095001056 9165140620 9165140620 9418040800 9418040800 9461311001
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51903-26100

LH50,51,YH5#..V

185R14

 1
51903-26090

LH50,YH50..V

6.50-14

 1
51910 - SCREW ASSY, SPARE WHEEL CLAMP
51901-95J00

YH50,61..LPG

LPG PACKAGE

 1
51914 - RETAINER, SPARE WHEEL CARRIER
51934-95J00

YH50,61..LPG

LPG PACKAGE,UPR

 1
51935-95J00

YH50,61..LPG

LPG PACKAGE,LWR

 1
51914 - RETAINER, SPARE WHEEL CARRIER
51934-95J00

YH50,61..LPG

LPG PACKAGE,UPR

 1
51935-95J00

YH50,61..LPG

LPG PACKAGE,LWR

 1
Common parts
90950-01056
91651-40620
94180-40800
94613-11001
