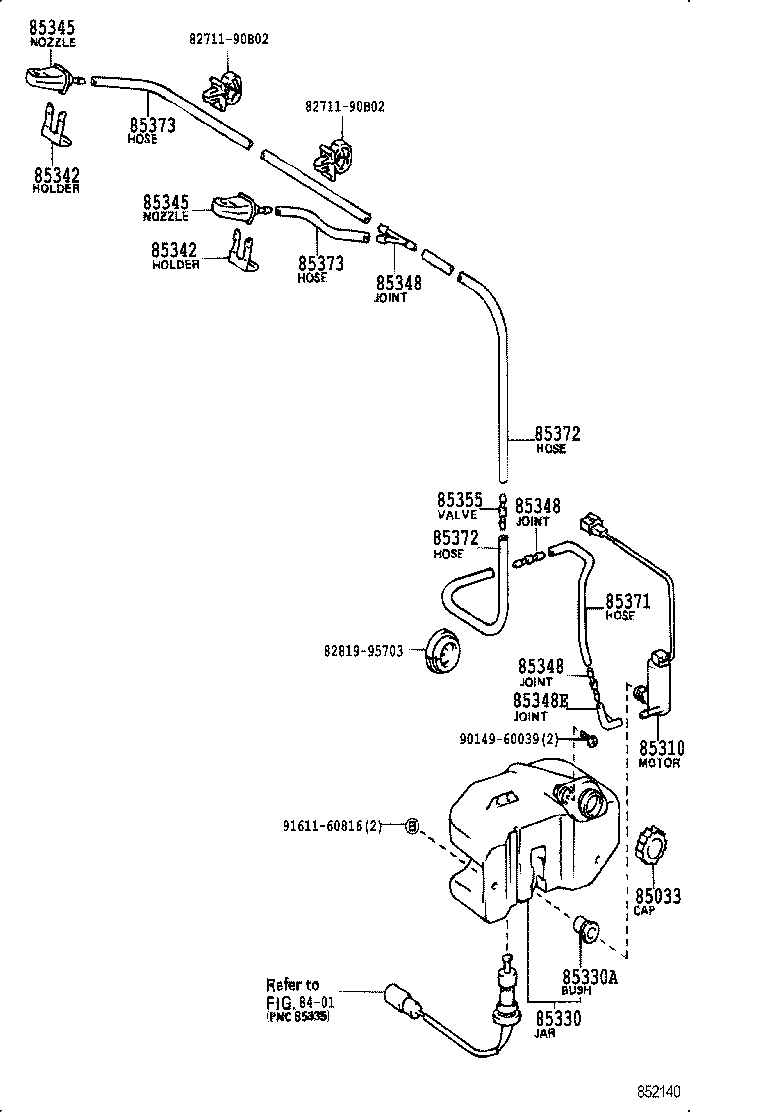

YH50V-JDF (1982)
Toyota Hiace Van,Wagon
(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX,STD |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-95J00 |
LH50,60,70,YH5#,61,71 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-95J00 |
LH50,60,70,YH5#,61,71 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95701 |
LH50,60,70,YH5#,61,71 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-95701 |
LH50,60,70,YH5#,61,71 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
LH5#,6#,7#,YH5#,6#,71 2WAY |
2 | ||
| 85355-14010 |
LH5#,6#,7#,YH5#,6#,71 3WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
LH5#,6#,7#,YH5#,6#,71 2WAY |
2 | ||
| 85355-14010 |
LH5#,6#,7#,YH5#,6#,71 3WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
LH5#,6#,7#,YH5#,6#,71 2WAY |
2 | ||
| 85355-14010 |
LH5#,6#,7#,YH5#,6#,71 3WAY |
1 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20070 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-12250 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33419 |
LH5#,6#,7#,YH5#,6#,71 長さ=200 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06006 |
LH5#,6#,7#,YH5#,6#,71 *H,L=800 |
1 | ||
| 90099-33418 |
LH5#,6#,7#,YH5#,6#,71 長さ=300 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06006 |
LH5#,6#,7#,YH5#,6#,71 *H,L=800 |
1 | ||
| 90099-33418 |
LH5#,6#,7#,YH5#,6#,71 長さ=300 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
LH5#,6#,7#,YH5#,6#,71 *H,L=100 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90446-06013 |
LH5#,6#,7#,YH5#,6#,71 *H,L=100 |
1 | ||
| Common parts | ||||
| 82711-90B02 | ||||
| 82819-95703 | ||||
| 90149-60039 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
