YH50V-JDF (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Aug 1985
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )LH60,61,YH61..ST ; (8212- )LH50,51,7#,YH5#,62,71..COM,V

Click highlighted areas on diagram

diagram 46101 46101 46103 46110A 46114 46144 46275 46301 46301A 46311 46311A 46311B 46356 46359 46410 46410B 46420 46420C 46441 46441 46458 46471 46471B 9020608016 9046808001 9046808001 9161640612 9161640818 9165640620 9165640818 9165640825 9538102018 9538102520
Part # Description Qty Price
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-26061

LH50,60,70,YH5#,61,71

 1
46101-26060

LH50,60,70,YH5#,61,71

 1
46120-26010

LH5#,61,71,YH5#,6#,71

 1
46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL
46101-26061

LH50,60,70,YH5#,61,71

 1
46101-26060

LH50,60,70,YH5#,61,71

 1
46120-26010

LH5#,61,71,YH5#,6#,71

 1
46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER
46103-26080

LH5#,6#,7#,YH5#,6#,71

 1
46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER)
90386-12048

LH5#,6#,7#,YH5#,6#,71

 1
46114 - PIN, PARKING BRAKE PLUNGER
46114-20010

LH5#,6#,7#,YH5#,6#,71

 1
46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER
46144-20010

LH5#,6#,7#,YH5#,6#,71

 1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46301-26020

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER)
90506-20007

LH50,51,60,61,7#,YH5#,6#,71..COM,V

 1
46311 - PAWL, PARKING BRAKE
46311-30041

LH50,60,70,YH5#,61,71

 2
46311A - SPRING(FOR PARKING BRAKE PAWL)
90508-08106

LH5#,6#,7#,YH5#,6#,71

 1
46311B - PIN, PARKING BRAKE PAWL PIVOT
46313-40010

LH5#,6#,7#,YH5#,6#,71

 2
46356 - BRACKET, EQUALIZER SUPPORT
46356-26040

LH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST

 1
46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER
46359-26030

LH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-26170

LH5#,6#,7#,YH5#,6#,71..ST

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-20004

LH5#,6#,7#,YH5#,6#,71

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-26080

LH5#,YH50,52..V

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08028

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30041

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46441 - NUT, WIRE ADJUSTING, NO.1
46441-30041

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46458 - RETAINER, CABLE
46458-20020

LH5#,6#,7#,YH5#,6#,71

 2
46471 - PULLEY, WIRE
46471-20010

LH5#,6#,7#,YH5#,6#,71

 1
46471B - PIN, W/HOLE(FOR WIRE PULLEY SET)
90240-08017

LH5#,6#,7#,YH5#,6#,71

 1
Common parts
90206-08016
90468-08001
91616-40612
91616-40818
91656-40620
91656-40818
91656-40825
95381-02018
95381-02520

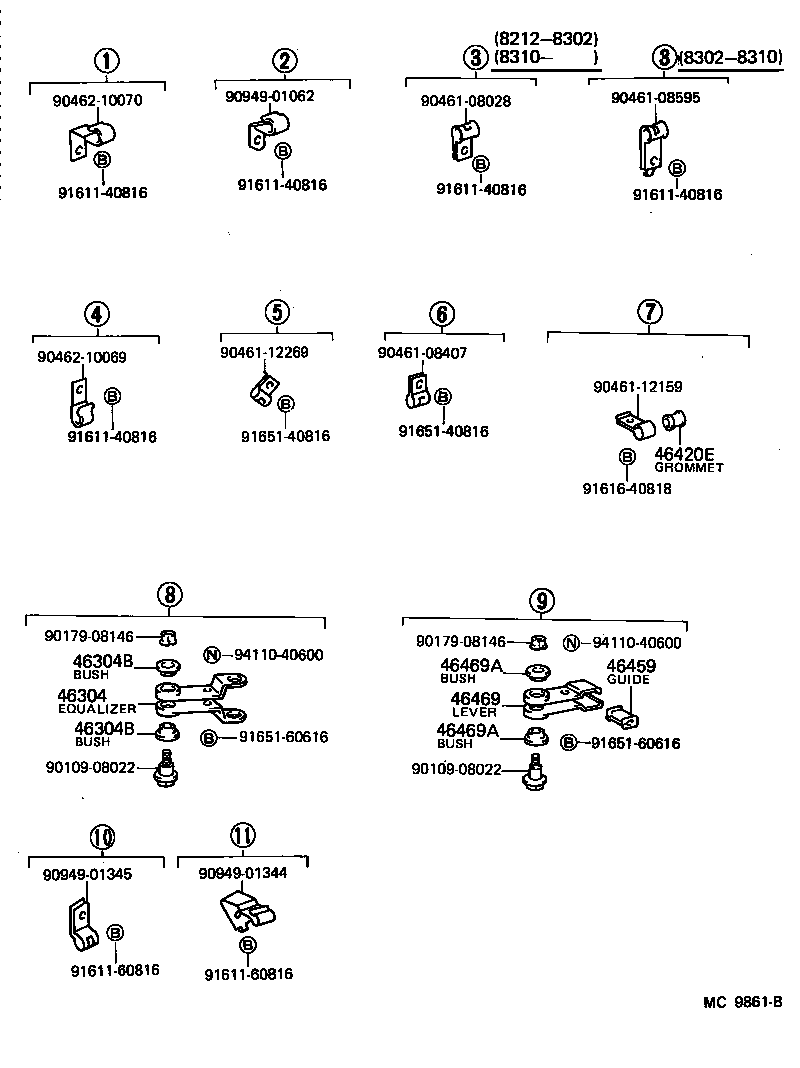

ILLUST NO. 2 OF 2(8212- )

Click highlighted areas on diagram

diagram 46304 46304B 46304B 46420E 46459 46469 46469A 46469A 9010908022 9010908022 9017908146 9017908146 9046108028 9046108407 9046108595 9046112159 9046112269 9046210069 9046210070 9094901062 9094901344 9094901345 9161140816 9161140816 9161140816 9161140816 9161140816 9161160816 9161160816 9161640818 9165140816 9165140816 9165160616 9165160616 9411040600 9411040600
Part # Description Qty Price
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-35020

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12029

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP)
90480-21518

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
46459 - GUIDE, CABLE
46459-30010

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
46469 - LEVER, CABLE GUIDE SUPPORT
46469-30020

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46469A - BUSH, CABLE GUIDE SUPPORT LEVER
90385-12029

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
46469A - BUSH, CABLE GUIDE SUPPORT LEVER
90385-12029

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 2
Common parts
90109-08022
90179-08146
90461-08028
90461-08407
90461-08595
90461-12159
90461-12269
90462-10069
90462-10070
90949-01062
90949-01344
90949-01345
91611-40816
91611-60816
91616-40818
91651-40816
91651-60616
94110-40600
