YH50V-JD (1984)

Toyota Hiace Van,Wagon

Production Jan 1984 - Aug 1985
Engine 2Y
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)COM,V

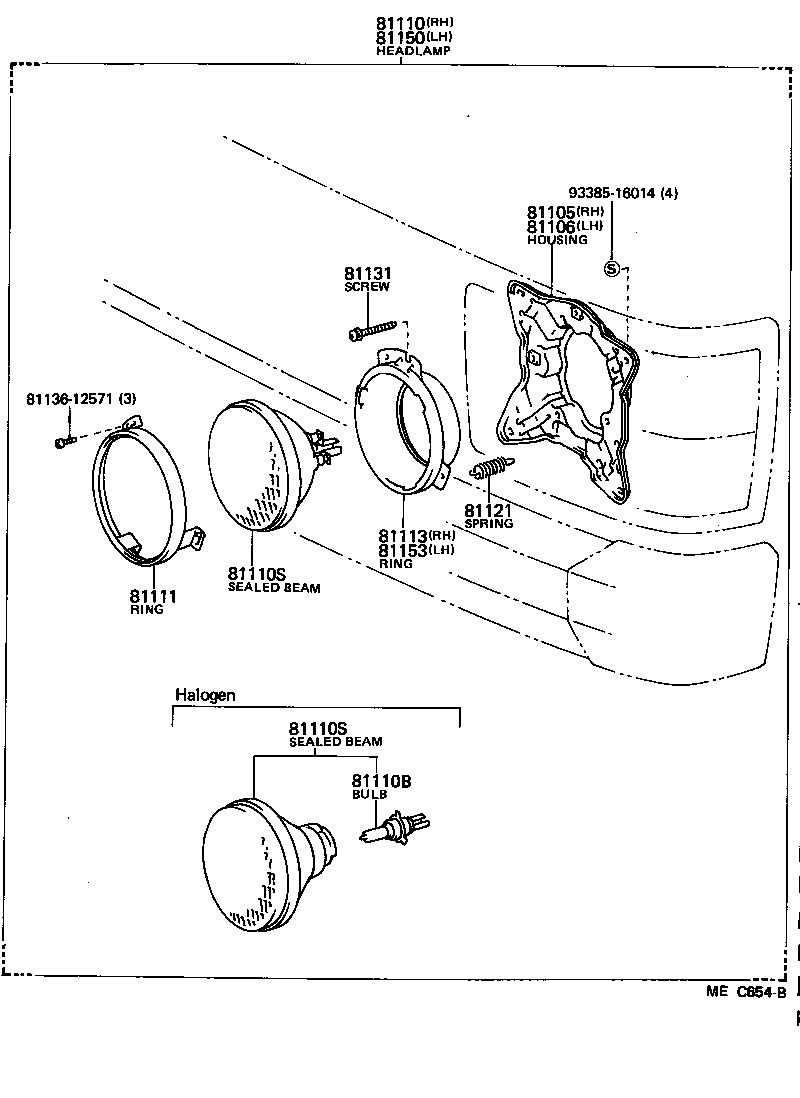

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81111 81113 81121 81131 8113612571 81150 81153 9338516014
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95J00

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95J00

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
81110 - HEADLAMP ASSY, RH
81110-80285

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

 1
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

12V 60/50W,*WB,12V 60/55W

 2
81110S - SEALED BEAM UNIT, NO.1
90981-01022

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

12V 60/50W,*WB,12V 60/55W

 2
81111 - RING, SEALED BEAM RETAINING
81111-22150

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-95J00

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
81121 - SPRING, HEADLAMP TENSION
81121-62010

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

LH5#,6#,7#,YH5#,6#,71..COM,V

 1
81150 - HEADLAMP ASSY, LH
81150-80282

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(DLX,STD)

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-95J00

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
Common parts
81136-12571
93385-16014
