LH71V-QDG (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

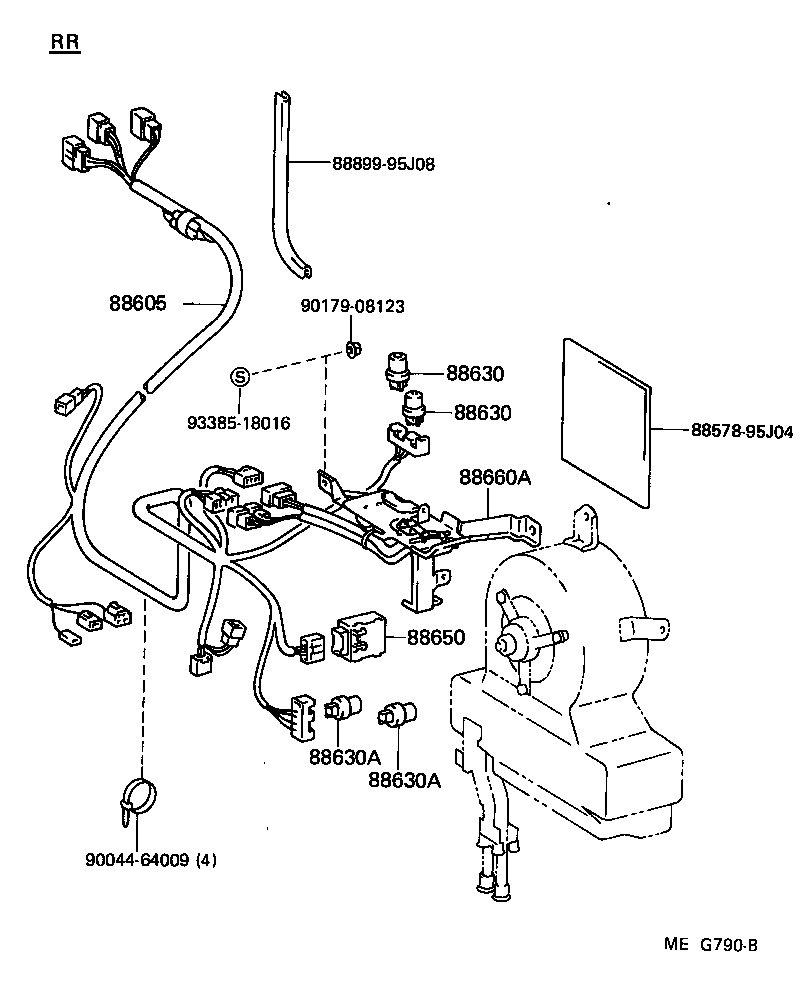

ILLUST NO. 3 OF 5(8708- )

Click highlighted areas on diagram

diagram 8857895J04 88605 88630 88630 88630A 88630A 88650 88660A 8889995J08 9004464009 9017908123 9338518016
Part # Description Qty Price
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J57

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J80

LH61..15S;LH71..09S,15S;LH51,61..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88605-95J57

YH61..5H..WT;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST;YH50,52,6#..MTM..(CD,GL)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88630 - RELAY ASSY, COOLER
90987-02004

YH61..WT;YH61..CD,GL;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
90987-02004

YH61..5H..WT;YH61..HRF..ST;YH61..MTM..(CD,GL);YH61..V5D..06S..ST;LH51,61,YH52,62,71..V..MTM

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88630 - RELAY ASSY, COOLER
90987-02004

YH61..WT;YH61..CD,GL;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
90987-02004

YH61..5H..WT;YH61..HRF..ST;YH61..MTM..(CD,GL);YH61..V5D..06S..ST;LH51,61,YH52,62,71..V..MTM

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88630A - RELAY ASSY, COOLER
90987-03001

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 5
88630A - RELAY ASSY, COOLER
90987-03001

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 5
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J11

LH66..SGL;LH71..09S,10S,15S;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J10

YH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
Common parts
88578-95J04
88899-95J08
90044-64009
90179-08123
93385-18016

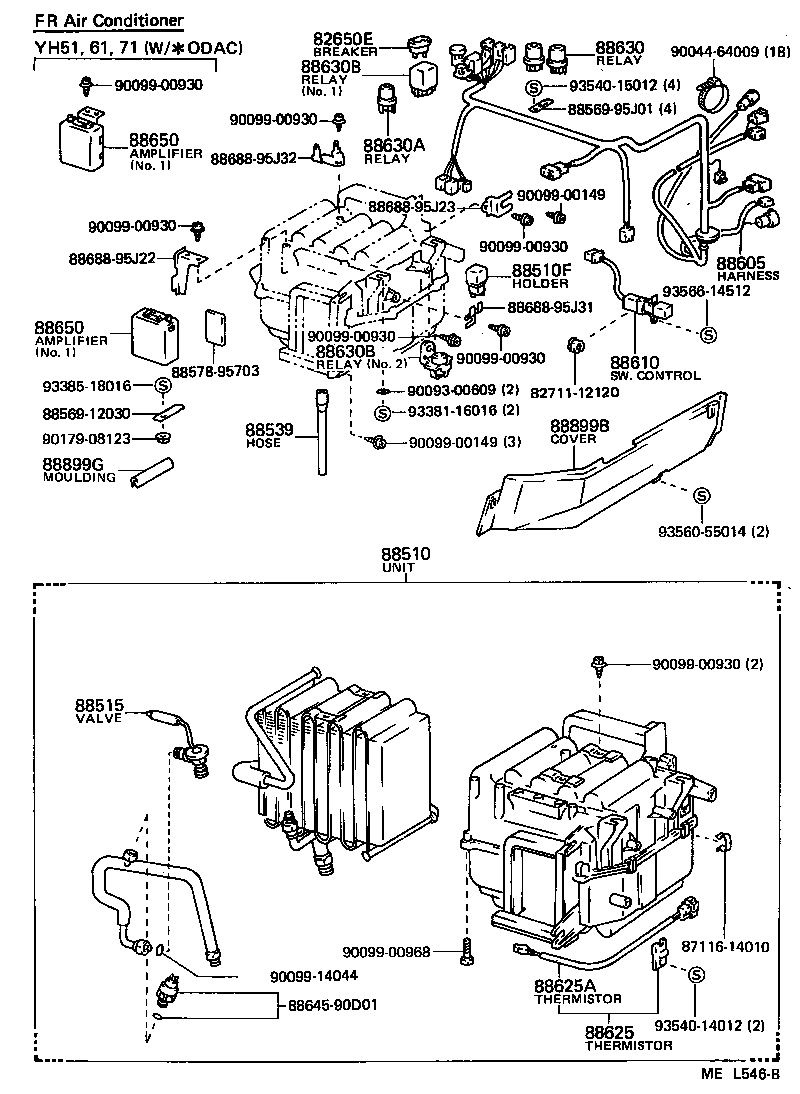

ILLUST NO. 1 OF 5(8708- )CD,CTM,DX,GL,SCM,SGL

Click highlighted areas on diagram

diagram 82650E 8271112120 8711614010 88510 88510F 88515 88539 8856912030 8856995J01 8857895703 88605 88610 88625 88625A 88630 88630A 88630B 88630B 8864590D01 88650 88650 8868895J22 8868895J23 8868895J31 8868895J32 88899B 88899G 9004464009 9009300609 9009900149 9009900149 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9009900930 9009900968 9009914044 9017908123 9338116016 9338518016 9354014012 9354015012 9356055014 9356614512
Part # Description Qty Price
82650E - BREAKER ASSY, WIRING CIRCUIT
82650-90500

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

10A

 1
82650-90500

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

10A

 1
82650-90500

YH61..ATM;LH66..DX..08S;LH5#,6#,71,YH51..V..(03S,05S,06S,09S)

10A

 1
88510 - UNIT ASSY, COOLER
88510-95J54

YH61..WT;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

FR

 1
88510-95J54

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR

 1
88510-95J09

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)..DSL;LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

RR

 1
88510-95J54

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR

 1
88510-95J55

YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR

 1
88510-95J54

YH61..WT;YH61..CD,GL;YH61..HRF..ST;YH51,52,62,71..VSG;YH61..V5D..06S..ST

FR

 1
88515 - VALVE, COOLER EXPANSION
88515-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

RR COOLER

 1
88515-16031

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR COOLER

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J57

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J80

LH61..15S;LH71..09S,15S;LH51,61..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88605-95J57

YH61..5H..WT;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST;YH50,52,6#..MTM..(CD,GL)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-95J08

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

FR

 1
84660-95J08

LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S)

FR

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95J01

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88630 - RELAY ASSY, COOLER
90987-02004

YH61..WT;YH61..CD,GL;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
90987-02004

YH61..5H..WT;YH61..HRF..ST;YH61..MTM..(CD,GL);YH61..V5D..06S..ST;LH51,61,YH52,62,71..V..MTM

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88630A - RELAY ASSY, COOLER
90987-03001

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 5
88630B - RELAY ASSY, COOLER
85913-30020

LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S

NO.1

 1
88630-60020

LH61,71..09S,15S;LH66..(DX,SGL)..08S

NO.2

 1
88630B - RELAY ASSY, COOLER
85913-30020

LH66..(DX,SGL)..08S;LH61,71,YH61,71..09S

NO.1

 1
88630-60020

LH61,71..09S,15S;LH66..(DX,SGL)..08S

NO.2

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J11

LH66..SGL;LH71..09S,10S,15S;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J10

YH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J11

LH66..SGL;LH71..09S,10S,15S;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J10

YH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
88899B - COVER, COOLER CONTROL
88899-95J03

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

 1
88899-95J03

LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S)

 1
88899G - MOULDING, PROTECTOR
88899-95J17

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88899-95J17

LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
Common parts
82711-12120
87116-14010
88569-12030
88569-95J01
88578-95703
88645-90D01
88688-95J22
88688-95J23
88688-95J31
88688-95J32
90044-64009
90093-00609
90099-00149
90099-00930
90099-00968
90099-14044
90179-08123
93381-16016
93385-18016
93540-14012
93540-15012
93560-55014
93566-14512

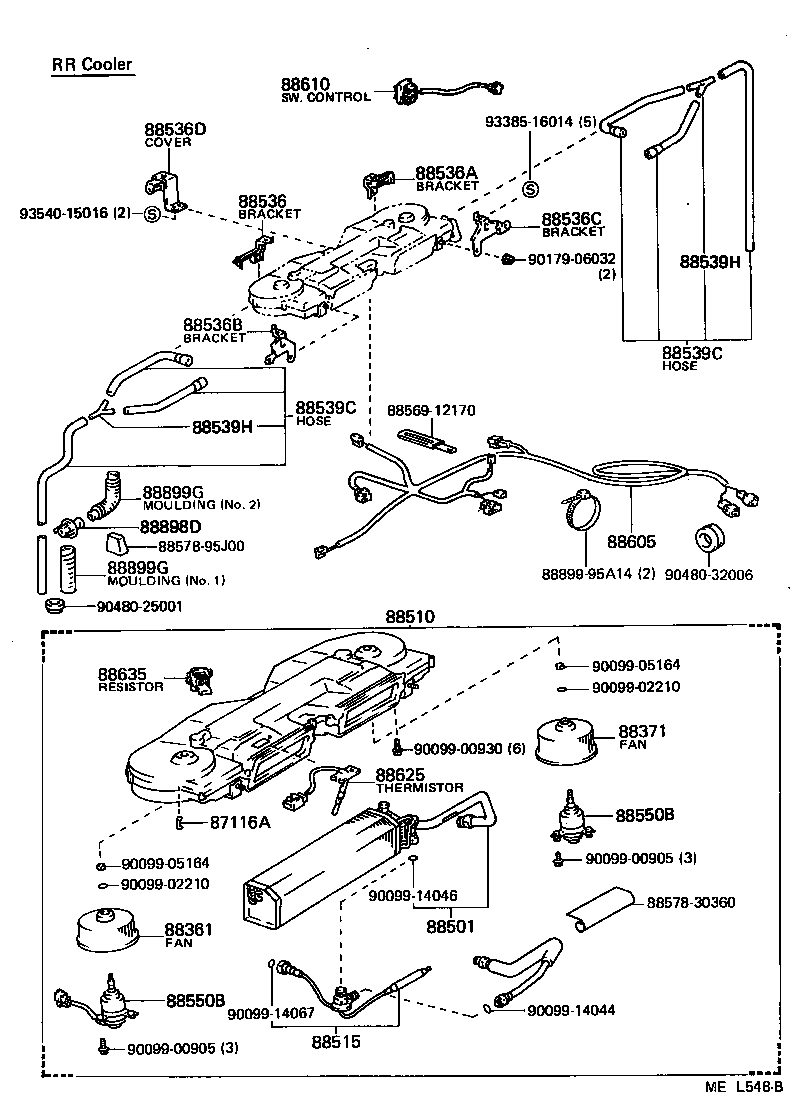

ILLUST NO. 2 OF 5(8708- )

Click highlighted areas on diagram

diagram 87116A 88361 88371 88501 88510 88515 88536 88536A 88536B 88536C 88536D 88539C 88539C 88539H 88539H 88550B 88550B 8856912170 8857830360 8857895J00 88605 88610 88625 88635 88898D 8889995A14 88899G 88899G 9009900905 9009900905 9009900930 9009902210 9009902210 9009905164 9009905164 9009914044 9009914046 9009914067 9017906032 9048025001 9048032006 9338516014 9354015016
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

 1
88371 - FAN, COOLER BLOWER, NO.2
87105-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

 1
88510 - UNIT ASSY, COOLER
88510-95J54

YH61..WT;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

FR

 1
88510-95J54

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR

 1
88510-95J09

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)..DSL;LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

RR

 1
88510-95J54

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR

 1
88510-95J55

YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),FR

 1
88510-95J54

YH61..WT;YH61..CD,GL;YH61..HRF..ST;YH51,52,62,71..VSG;YH61..V5D..06S..ST

FR

 1
88515 - VALVE, COOLER EXPANSION
88515-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

RR COOLER

 1
88515-16031

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR COOLER

 1
88536 - BRACKET, COOLING UNIT, NO.1
88536-90C00

LH71,YH71..09S,10S,15S

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-90C01

LH71,YH71..09S,10S,15S

 2
88536C - BRACKET, COOLING UNIT, NO.4
88536-90C04

LH71,YH71..09S,10S,15S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88536D - COVER, COOLER UNIT BRACKET
88536-90C05

LH71,YH71..09S,10S,15S

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90701

LH71,YH71..09S,10S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 2
88539-95J06

LH71,YH71..09S,10S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88539-95J07

LH51..09S..TD;LH71,YH71..09S,10S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 2
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-90701

LH71,YH71..09S,10S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 2
88539-95J06

LH71,YH71..09S,10S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88539-95J07

LH51..09S..TD;LH71,YH71..09S,10S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 2
88539H - CONNECTOR
88897-87101

LH51..09S..TD;LH71..09S,10S,15S;LH61,YH61,71..09S,15S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 2
88539H - CONNECTOR
88897-87101

LH51..09S..TD;LH71..09S,10S,15S;LH61,YH61,71..09S,15S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 2
88550B - MOTOR ASSY, BLOWER
88550-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

 2
88550B - MOTOR ASSY, BLOWER
88550-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

 2
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J57

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J80

LH61..15S;LH71..09S,15S;LH51,61..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88605-95J57

YH61..5H..WT;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST;YH50,52,6#..MTM..(CD,GL)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88610 - SWITCH ASSY, COOLER CONTROL
84660-95J08

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

FR

 1
84660-95J08

LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S)

FR

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95J01

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-95J00

LH61,71,YH61,71..09S

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88898D - GROMMET
88898-90C00

LH71,YH71..09S,10S,15S

 1
88899G - MOULDING, PROTECTOR
88899-95J17

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88899-95J17

LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88899G - MOULDING, PROTECTOR
88899-95J17

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88899-95J17

LH66..DX..08S;YH61..GL..09S;LH66..SGL..05S;LH51,61,71,YH71..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
Common parts
88569-12170
88578-30360
88578-95J00
88899-95A14
90099-00905
90099-00930
90099-02210
90099-05164
90099-14044
90099-14046
90099-14067
90179-06032
90480-25001
90480-32006
93385-16014
93540-15016

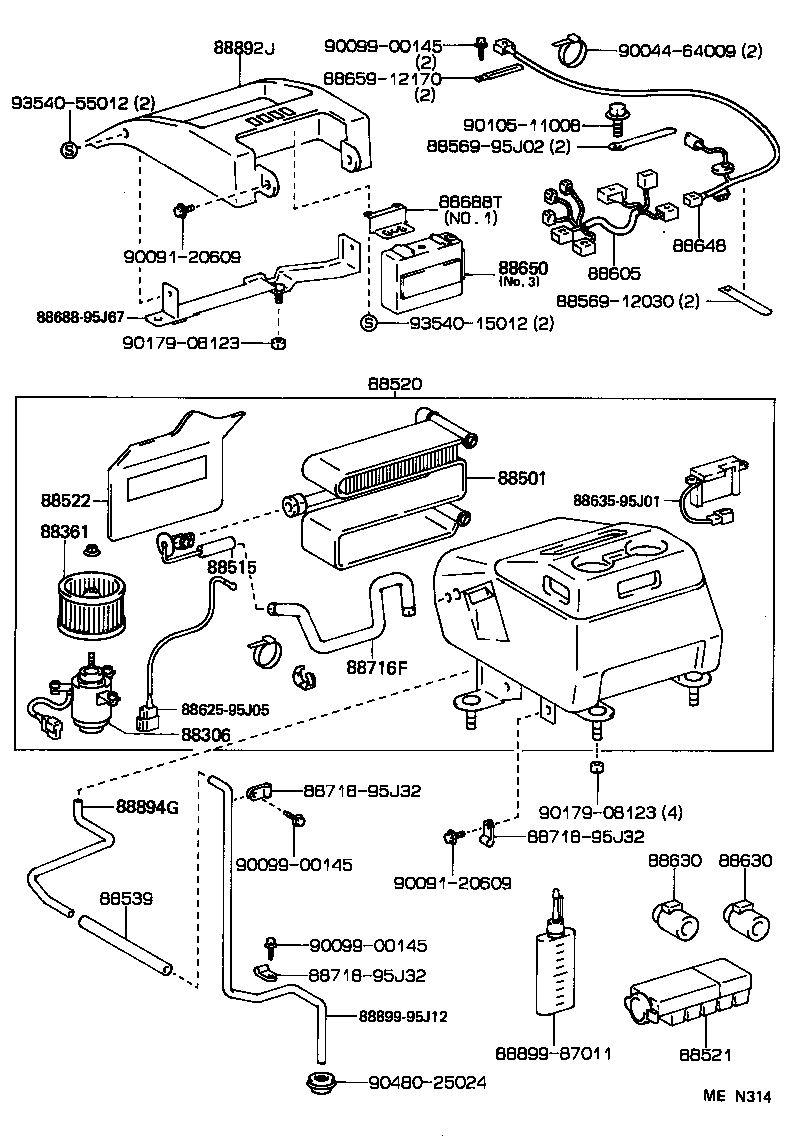

ILLUST NO. 4 OF 5(8708- )

Click highlighted areas on diagram

diagram 88306 88361 88501 88515 88520 88521 88522 88539 8856912030 8856995J02 88605 8862595J05 88630 88630 8863595J01 88648 88650 8865912170 8868895J67 88688T 88716F 8871895J32 8871895J32 8871895J32 88892J 88894G 8889987011 8889995J12 9004464009 9009120609 9009120609 9009900145 9009900145 9009900145 9010511008 9017908123 9017908123 9048025024 9354015012 9354055012
Part # Description Qty Price
88515 - VALVE, COOLER EXPANSION
88515-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

RR COOLER

 1
88515-16031

LH66..(DX,SGL)..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

FR COOLER

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-95701

LH66..DX..08S;YH61..GL..09S;LH61,71,YH71..09S

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ) OR ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J57

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J80

LH61..15S;LH71..09S,15S;LH51,61..V4D..(4FC,5H)..(05S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88605-95J57

YH61..5H..WT;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST;YH50,52,6#..MTM..(CD,GL)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88605-95J82

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88630 - RELAY ASSY, COOLER
90987-02004

YH61..WT;YH61..CD,GL;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
90987-02004

YH61..5H..WT;YH61..HRF..ST;YH61..MTM..(CD,GL);YH61..V5D..06S..ST;LH51,61,YH52,62,71..V..MTM

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88630 - RELAY ASSY, COOLER
90987-02004

YH61..WT;YH61..CD,GL;YH61..V5D..06S..ST;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
90987-02004

YH61..5H..WT;YH61..HRF..ST;YH61..MTM..(CD,GL);YH61..V5D..06S..ST;LH51,61,YH52,62,71..V..MTM

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-87101

YH61..WT;YH61..V5D..06S..ST;YH50,51,52,6#..CD,GL;YH61,71..HRF..VSG..ST

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J11

LH66..SGL;LH71..09S,10S,15S;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(CD,DX,GL)..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-14030

LH66..DX..08S;LH5#,6#,71..V..(03S,05S,06S,09S)

ｱﾘ(ﾌﾛﾝﾄ ｴｱｺﾝ),NO.1

 1
88650-95J10

YH61..10S;YH61..GL..09S;YH51,57,71..(HRF,SRF)..(08S,09S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ),NO.1

 1
Common parts
88569-12030
88569-95J02
88625-95J05
88635-95J01
88659-12170
88688-95J67
88718-95J32
88899-87011
88899-95J12
90044-64009
90091-20609
90099-00145
90105-11008
90179-08123
90480-25024
93540-15012
93540-55012

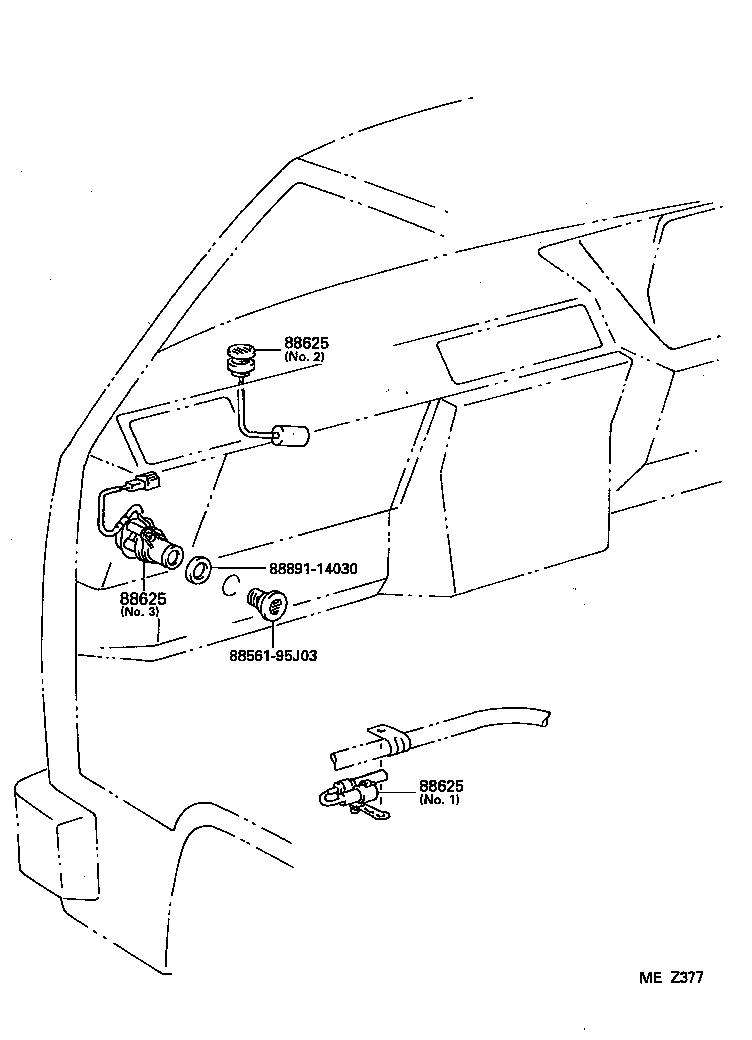

ILLUST NO. 5 OF 5(8708- )

Click highlighted areas on diagram

diagram 8856195J03 88625 88625 88625 8889114030
Part # Description Qty Price
88625 - THERMISTOR, COOLER, NO.1
88625-95J01

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95J01

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
88625 - THERMISTOR, COOLER, NO.1
88625-95J01

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH51..SRF..(CTM,DX,SCM,SGL)..(05S,08S,09S);LH71,YH51,57,61,71..(HRF,SRF)..(08S,09S,10S,15S)

ｱﾘ(ｵ-ﾊﾞ ﾍﾂﾄﾞ ﾃﾞﾕｱﾙ ｴｱｺﾝ)

 1
Common parts
88561-95J03
88891-14030
