LH71B-QD (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L#

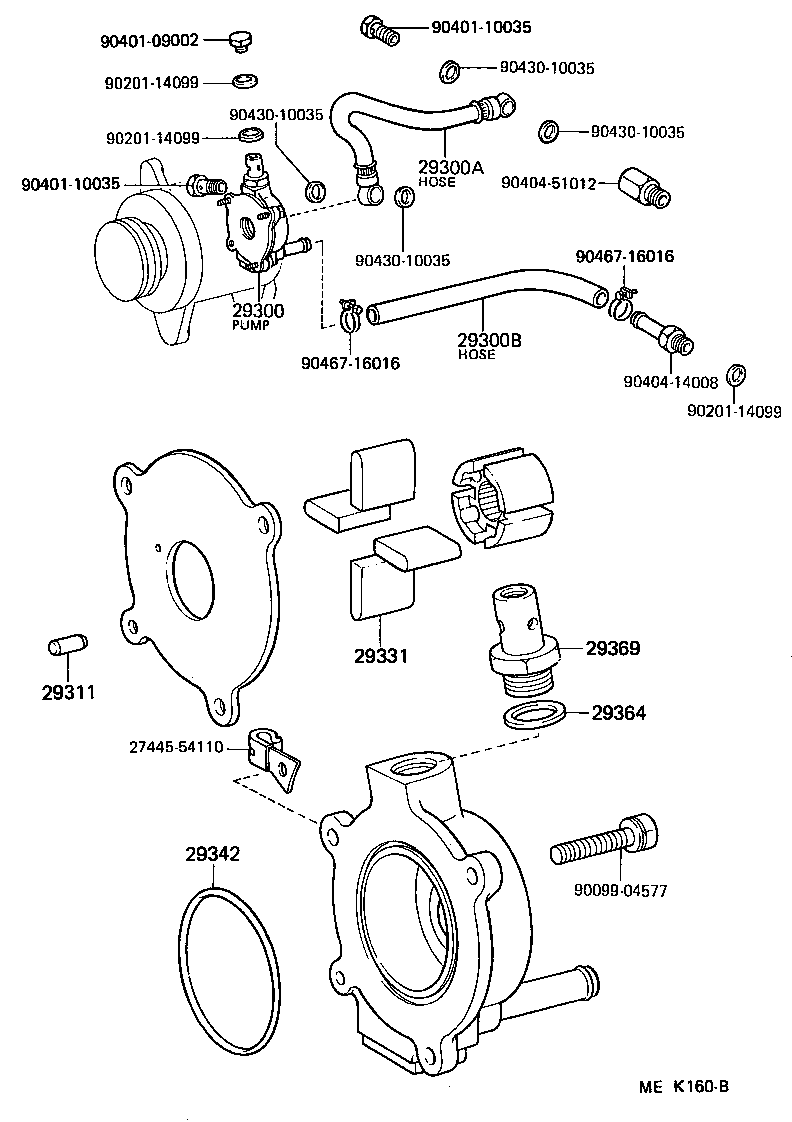

Click highlighted areas on diagram

diagram 2744554110 29300 29300A 29300B 29311 29331 29342 29364 29369 9009904577 9020114099 9020114099 9020114099 9040109002 9040110035 9040110035 9040414008 9040451012 9043010035 9043010035 9043010035 9043010035 9046716016 9046716016
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-54050

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02077

2L..LH66..05S;2L..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29300B - HOSE, VACUUM PUMP OIL OUTLET
90923-02076

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29611-54030

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
90099-08082

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29331 - BLADE, VACUUM PUMP, A
29331-56070

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 4
29342 - PACKING, VACUUM PUMP
96740-02063

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29364 - WASHER, VACUUM PUMP
29364-66010

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
29369 - VALVE SUB-ASSY, CHECK
29369-56070

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
Common parts
27445-54110
90099-04577
90201-14099
90401-09002
90401-10035
90404-14008
90404-51012
90430-10035
90467-16016
