LH70V-QDG (1982)
Toyota Hiace Van,Wagon

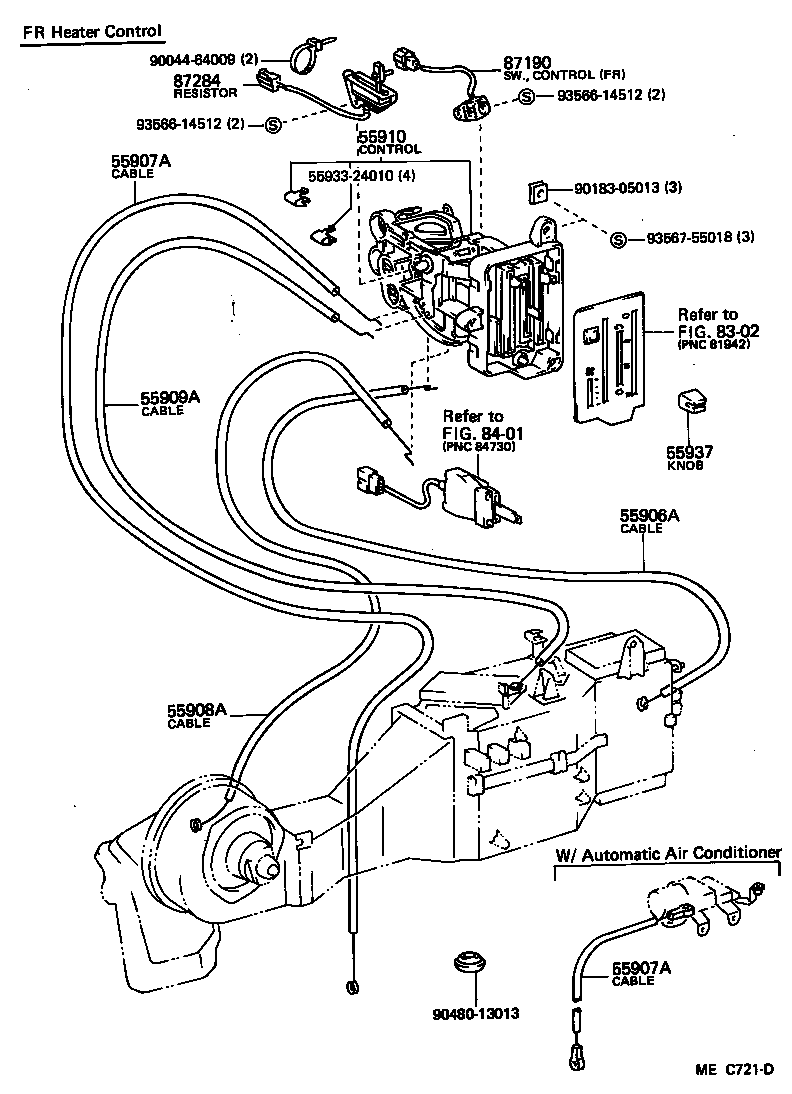

ILLUST NO. 1 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR HEATER |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-95J00 |
LH5#,6#,7#,YH5#,6#,71 FR HEATER |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
1 | ||
| 55910-95J04 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH50,60,70,YH5#,61,71 FR HEATER |
4 | ||
| 55905-95703 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER,NO.1 |
1 | ||
| Common parts | ||||
| 55933-24010 | ||||
| 90044-64009 | ||||
| 90183-05013 | ||||
| 90480-13013 | ||||
| 93566-14512 | ||||
| 93567-55018 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

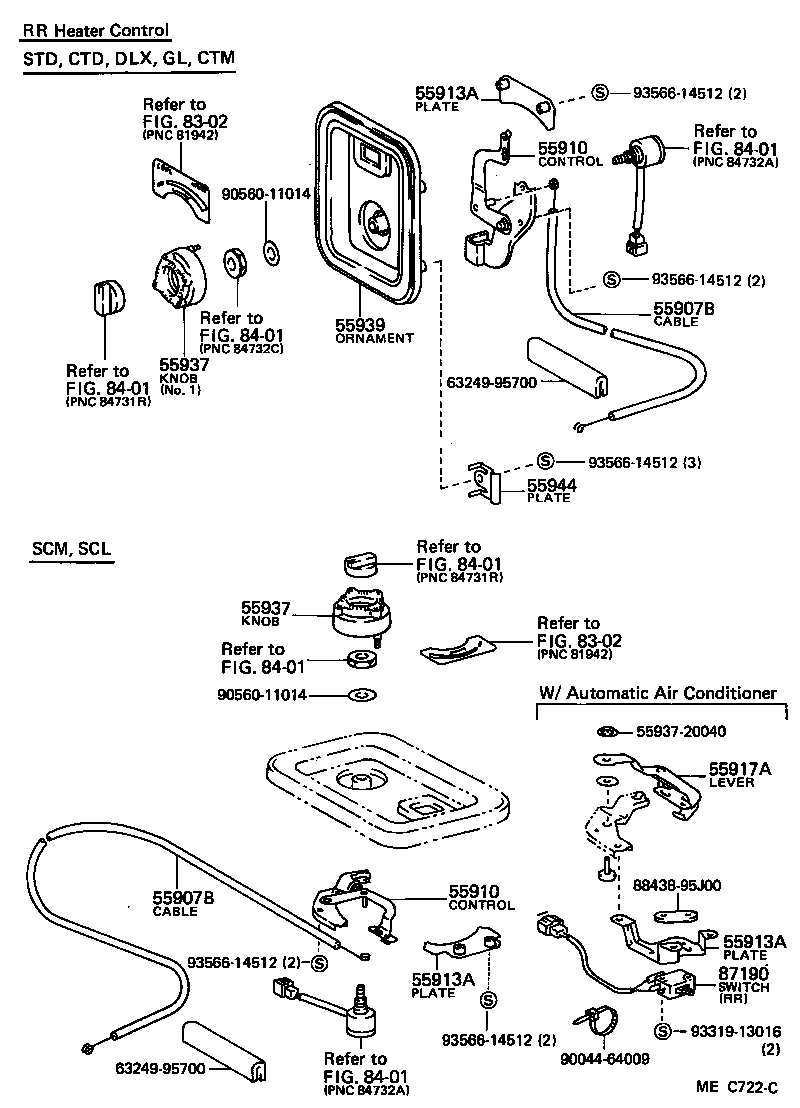

ILLUST NO. 2 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-95J01 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) RR HEATER |
1 | ||
| 55907B - CABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL | ||||
| 55907-95J01 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S) RR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
1 | ||
| 55910-95J04 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD FR HEATER |
1 | ||
| 55910-95J04 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-95J00 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-95J00 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| 55913A - PLATE, HEATER CONTROL LEVER GUIDE | ||||
| 55913-95J00 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH50,60,70,YH5#,61,71 FR HEATER |
4 | ||
| 55905-95703 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER,NO.1 |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12070 |
LH50,60,70,YH5#,61,71 FR HEATER |
4 | ||
| 55905-95703 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER,NO.1 |
1 | ||
| 55939 - ORNAMENT, HEATER CONTROL | ||||
| 55939-95J0005 |
LH50,60,70,YH50,61,71..V4D..VSG RR HEATER,BEIGE,BEIGE |
1 | ||
| 55939-95J0004 |
LH5#,6#,7#,YH50,61,71..V4D..(06S,09S) RR HEATER,BLUE,BLUE |
1 | ||
| 55944 - PLATE, HEATER CONTROL SUPPORT | ||||
| 55944-95J00 |
LH5#,6#,7#,YH50,61,71..V4D..(05S,06S,08S,09S)..ST RR HEATER |
1 | ||
| Common parts | ||||
| 55937-20040 | ||||
| 63249-95700 | ||||
| 88438-95J00 | ||||
| 90044-64009 | ||||
| 90560-11014 | ||||
| 93319-13016 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

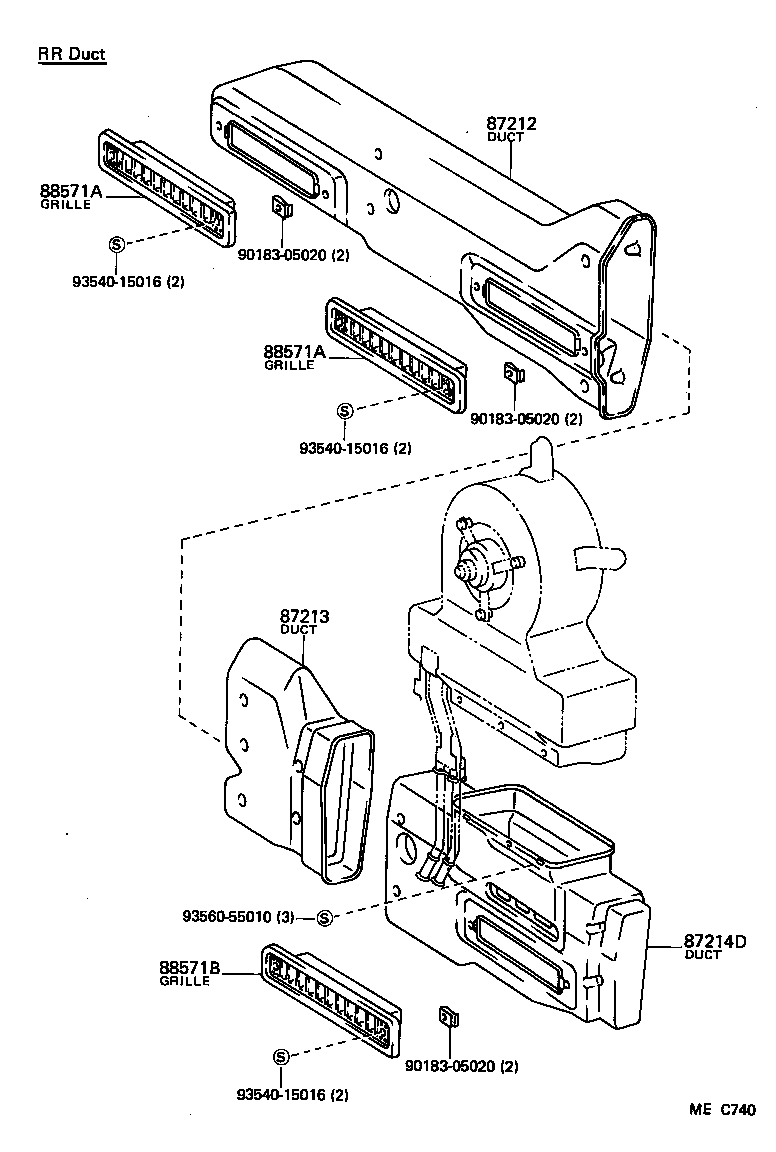

ILLUST NO. 5 OF 7(8212- )V4D..ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-95J00 |
LH56,60,66,7#,YH52,62,71..V4D..VSG;LH50,51,61,YH50,61..V4D..(05S,06S,09S)..ST |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-90C00 |
LH7#,YH71..VSG |
1 | ||
| 87214D - DUCT, AIR, REAR NO.3 | ||||
| 87214-95J00 |
LH56,60,66,7#,YH52,62,71..V4D..VSG;LH50,51,61,YH50,61..V4D..(05S,06S,09S)..ST |
1 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 87125-95J0005 |
LH50,60,70,YH50,61,71..V4D..VSG BEIGE,BEIGE |
2 | ||
| 87125-95J0004 |
LH5#,6#,7#,YH50,61,71..V4D..(06S,09S) BLUE,BLUE |
2 | ||
| 88571A - GRILLE, AIR OUTLET | ||||
| 87125-95J0005 |
LH50,60,70,YH50,61,71..V4D..VSG BEIGE,BEIGE |
2 | ||
| 87125-95J0004 |
LH5#,6#,7#,YH50,61,71..V4D..(06S,09S) BLUE,BLUE |
2 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 87125-95J0205 |
LH50,60,70,YH50,61,71..V4D..VSG BEIGE,BEIGE |
1 | ||
| 87125-95J0204 |
LH50,YH50..V4D..06S;LH51,6#,7#,YH52,6#,71..V4D..VSG BLUE,BLUE |
1 | ||
| Common parts | ||||
| 90183-05020 | ||||
| 93540-15016 | ||||
| 93560-55010 | ||||

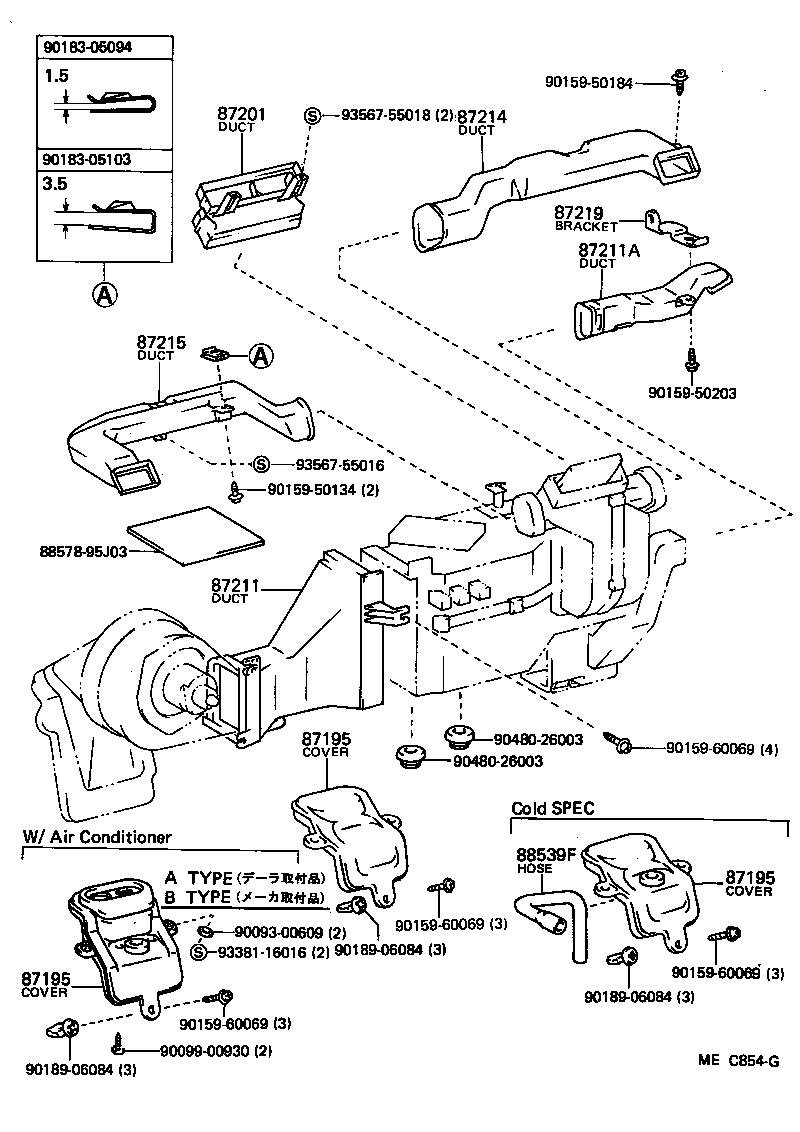

ILLUST NO. 4 OF 7(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87195 - COVER, HOLE | ||||
| 88899-95J05 |
LH60,61,7#,YH61,71..09S,15S W/*ODAC |
1 | ||
| 88899-95J07 |
LH50,51,60,61,7#,YH5#,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 87195-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87195 - COVER, HOLE | ||||
| 88899-95J05 |
LH60,61,7#,YH61,71..09S,15S W/*ODAC |
1 | ||
| 88899-95J07 |
LH50,51,60,61,7#,YH5#,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 87195-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87195 - COVER, HOLE | ||||
| 88899-95J05 |
LH60,61,7#,YH61,71..09S,15S W/*ODAC |
1 | ||
| 88899-95J07 |
LH50,51,60,61,7#,YH5#,6#,71..V W/SINGLE AIR CONDITIONER |
1 | ||
| 87195-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 55086-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-95J04 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55084-95J01 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 87219 - BRACKET, FRONT AIR DUCT | ||||
| 87219-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCM,STD COLD SPEC |
1 | ||
| Common parts | ||||
| 88578-95J03 | ||||
| 90093-00609 | ||||
| 90099-00930 | ||||
| 90159-50134 | ||||
| 90159-50184 | ||||
| 90159-50203 | ||||
| 90159-60069 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-06084 | ||||
| 90480-26003 | ||||
| 93381-16016 | ||||
| 93567-55016 | ||||
| 93567-55018 | ||||

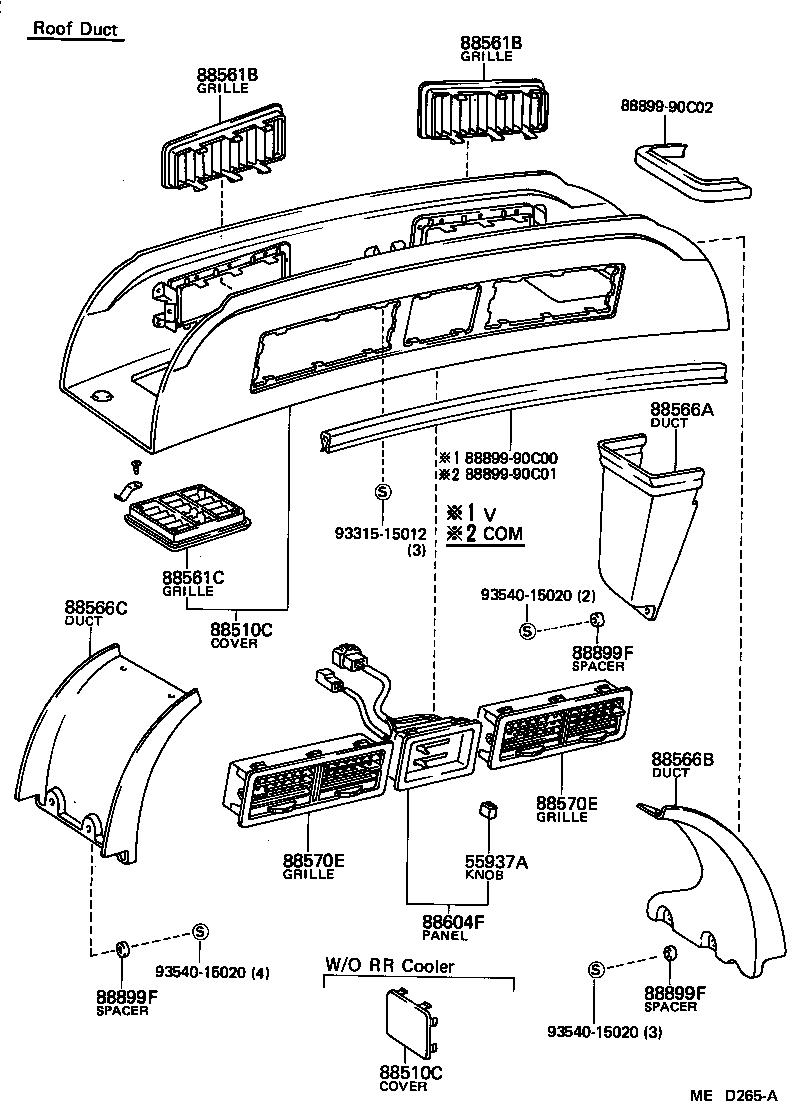

ILLUST NO. 6 OF 7(8212- )HRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55937A - KNOB, COOLER CONTROL LEVER | ||||
| 88895-95A00 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S |
2 | ||
| 88510C - COVER ASSY, COOLER UNIT | ||||
| 61749-95J0008 |
LH7#,YH71..09S IVORY,W/O RR COOLER,IVORY |
1 | ||
| 88896-90C03 |
LH7#,YH71..09S |
1 | ||
| 88510C - COVER ASSY, COOLER UNIT | ||||
| 61749-95J0008 |
LH7#,YH71..09S IVORY,W/O RR COOLER,IVORY |
1 | ||
| 88896-90C03 |
LH7#,YH71..09S |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S LH,IVORY,IVORY |
1 | ||
| 88561-95J0108 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RH,IVORY,IVORY |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S LH,IVORY,IVORY |
1 | ||
| 88561-95J0108 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S RH,IVORY,IVORY |
1 | ||
| 88561C - GRILLE, COOLER AIR INLET | ||||
| 88561-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88896-90C04 |
LH7#,YH71..09S |
1 | ||
| 88566B - DUCT, COOLER AIR, NO.2 | ||||
| 88896-90C06 |
LH7#,YH71..09S |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 88896-90C05 |
LH7#,YH71..09S |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
2 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 88604-95J0008 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
1 | ||
| 88899F - SPACER | ||||
| 88899-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
6 | ||
| 88899F - SPACER | ||||
| 88899-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
6 | ||
| 88899F - SPACER | ||||
| 88899-95J0208 |
LH5#,6#,7#,YH51,61,71..08S,09S,10S,15S IVORY,IVORY |
6 | ||
| Common parts | ||||
| 88899-90C00 | ||||
| 88899-90C01 | ||||
| 88899-90C02 | ||||
| 93315-15012 | ||||
| 93540-15020 | ||||
