LH70V-QDG (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )LH7#,YH71..VSG ; (8212- )LH5#,6#,YH5#,6#..CTD,DLX,GL,STD

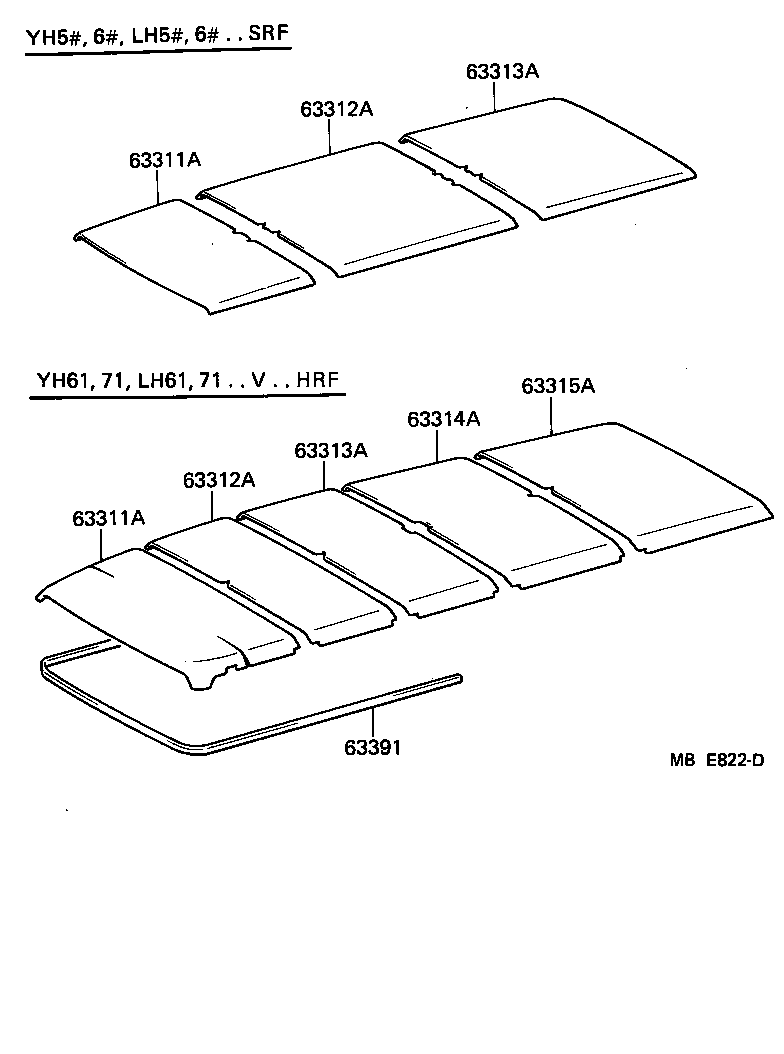

Click highlighted areas on diagram

diagram 63311A 63311A 63312A 63312A 63313A 63313A 63314A 63315A 63391
Part # Description Qty Price
63311A - HEADLINING, ROOF NO.1
63311-90C0008

LH61,7#,YH61,71..HRF..VSG

IVORY,IVORY

 1
63311A - HEADLINING, ROOF NO.1
63311-90C0008

LH61,7#,YH61,71..HRF..VSG

IVORY,IVORY

 1
63312A - HEADLINING, ROOF, NO.2
63312-90C0008

LH61,7#,YH61,71..HRF..VSG

IVORY,IVORY

 1
63312A - HEADLINING, ROOF, NO.2
63312-90C0008

LH61,7#,YH61,71..HRF..VSG

IVORY,IVORY

 1
63313A - HEADLINING, ROOF, NO.3
63313-90C0008

LH61,7#,YH61,71..HRF..VSG

IVORY,IVORY

 1
63313A - HEADLINING, ROOF, NO.3
63313-90C0008

LH61,7#,YH61,71..HRF..VSG

IVORY,IVORY

 1
63314A - HEADLINING, ROOF, NO.4
63314-90C0008

LH7#,YH71..VSG

IVORY,IVORY

 1
63315A - HEADLINING, ROOF, NO.5
63315-90C0008

LH7#,YH71..VSG

IVORY,IVORY

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63391-90C00

LH70,YH71..VSG

 1
