LH70B-QD (1982)
Toyota Hiace Van,Wagon

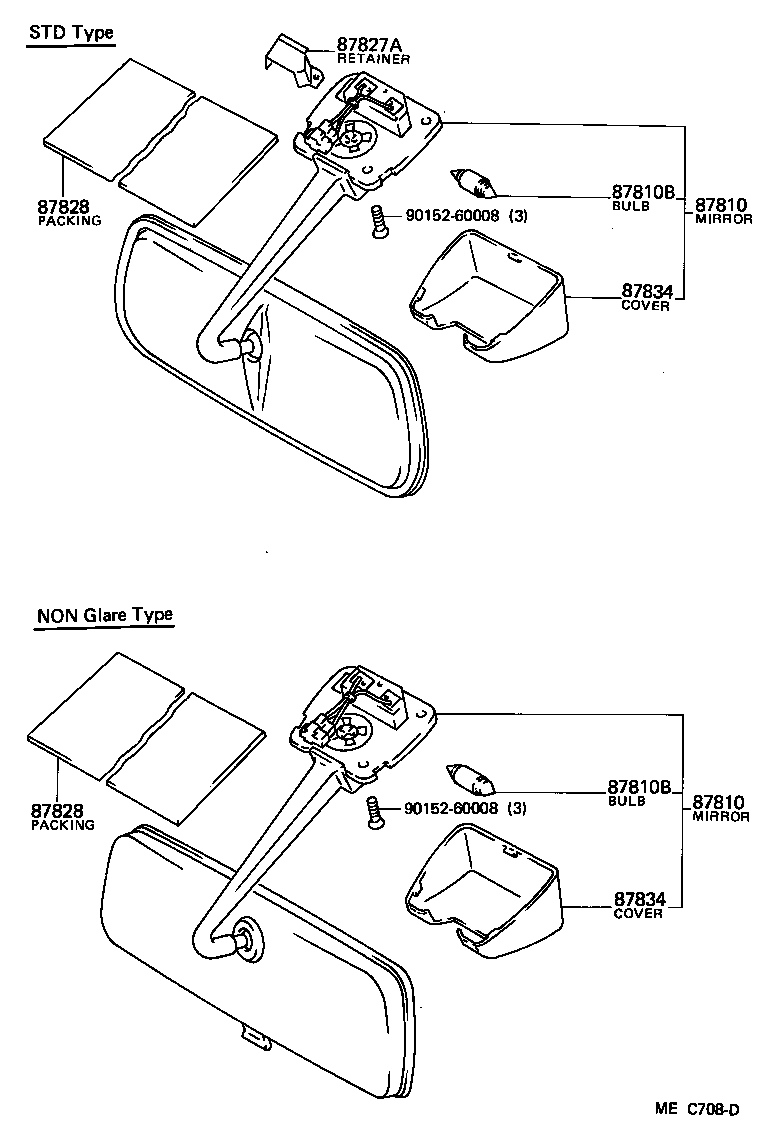

ILLUST NO. 1 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95704 |
LH5#,6#,7#,YH5#,6#,71..DLX,STD STD TYPE |
1 | ||
| 87810-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX STD TYPE,W/CLOCK |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-95704 |
LH5#,6#,7#,YH5#,6#,71..DLX,STD STD TYPE |
1 | ||
| 87810-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,DLX STD TYPE,W/CLOCK |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LH5#,6#,7#,YH5#,6#,71 12V 10W,12V 10W |
1 | ||
| 87810B - BULB, INNER REAR VIEW MIRROR LAMP | ||||
| 90981-11027 |
LH5#,6#,7#,YH5#,6#,71 12V 10W,12V 10W |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM W/CLOCK |
1 | ||
| 81243-95701 |
LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 81243-95J00 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,SCL,SCM W/CLOCK |
1 | ||
| 81243-95701 |
LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD |
1 | ||
| Common parts | ||||
| 90152-60008 | ||||

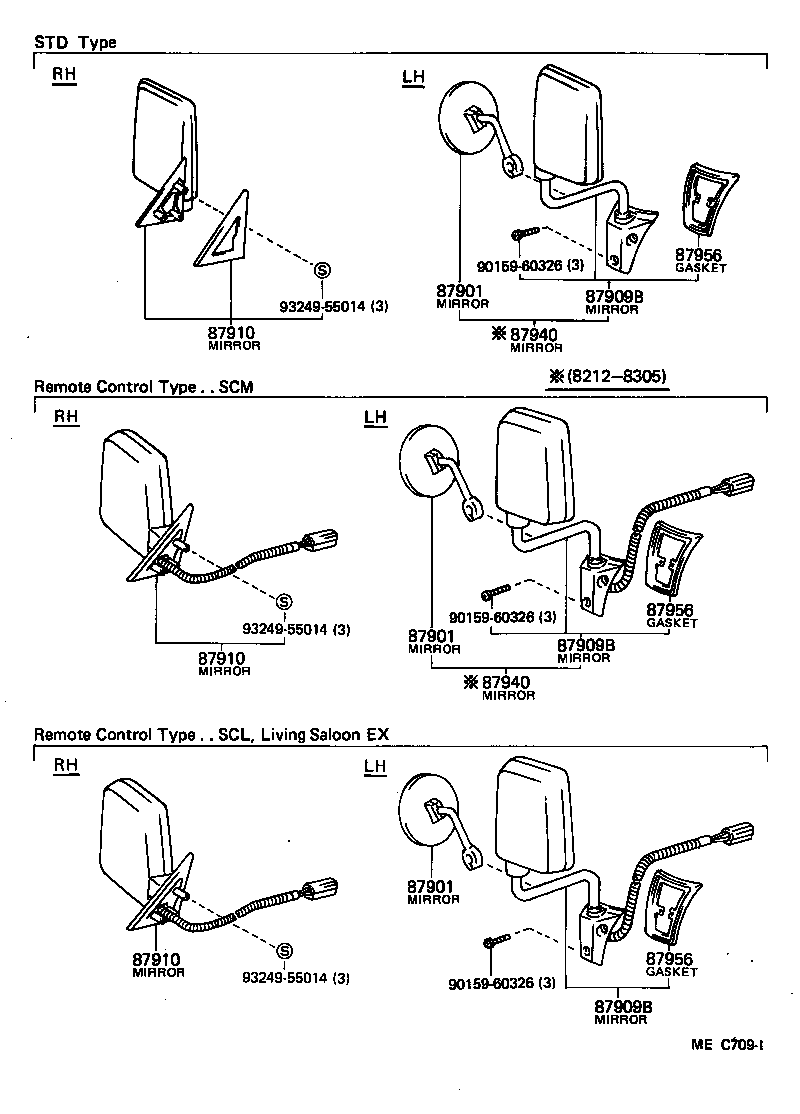

ILLUST NO. 2 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J00 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J00 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J00 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87906-29015 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87906-29015 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87906-29015 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87956 - GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH | ||||
| 87956-95J00 |
LH5#,6#,7#,YH50,51,71 |
1 | ||
| 87956 - GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH | ||||
| 87956-95J00 |
LH5#,6#,7#,YH50,51,71 |
1 | ||
| 87956 - GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH | ||||
| 87956-95J00 |
LH5#,6#,7#,YH50,51,71 |
1 | ||
| Common parts | ||||
| 90159-60326 | ||||
| 93249-55014 | ||||

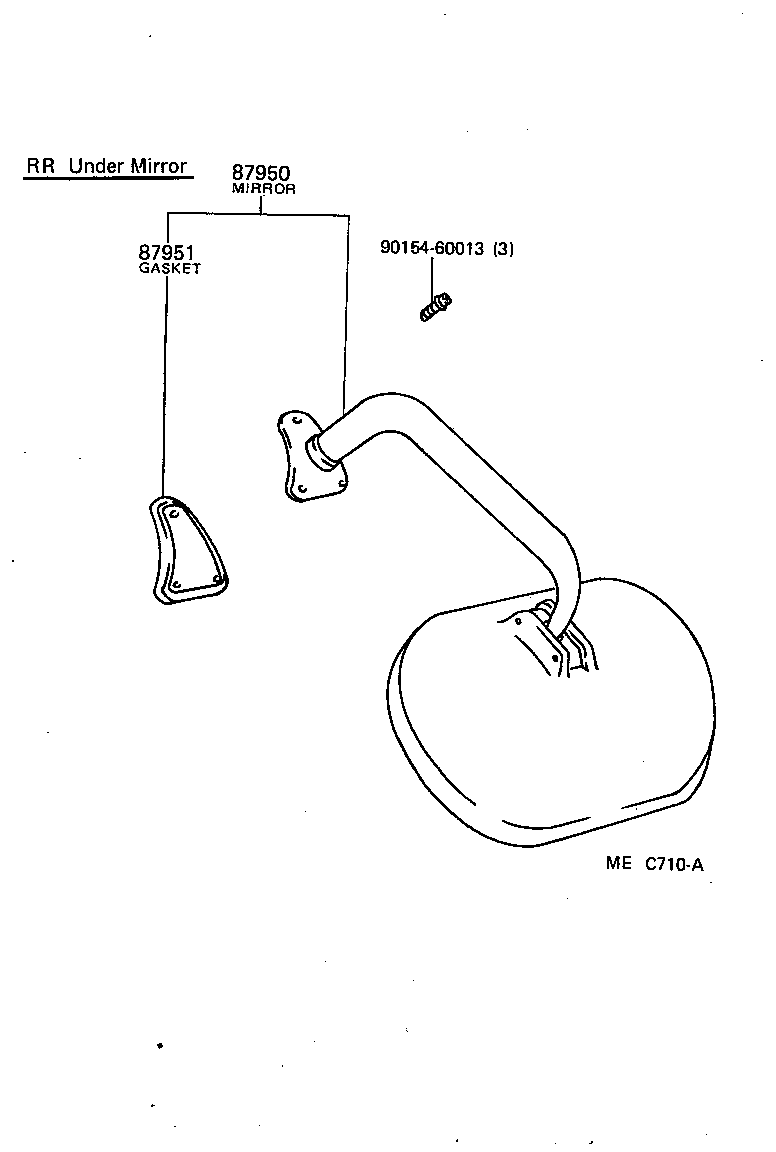

ILLUST NO. 3 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-29055 |
LH70,YH71 |
1 | ||
| 87951 - GASKET, OUTER UNDER REAR VIEW MIRROR | ||||
| 87951-90C00 |
LH61,7#,YH61,71..HRF |
1 | ||
| Common parts | ||||
| 90154-60013 | ||||

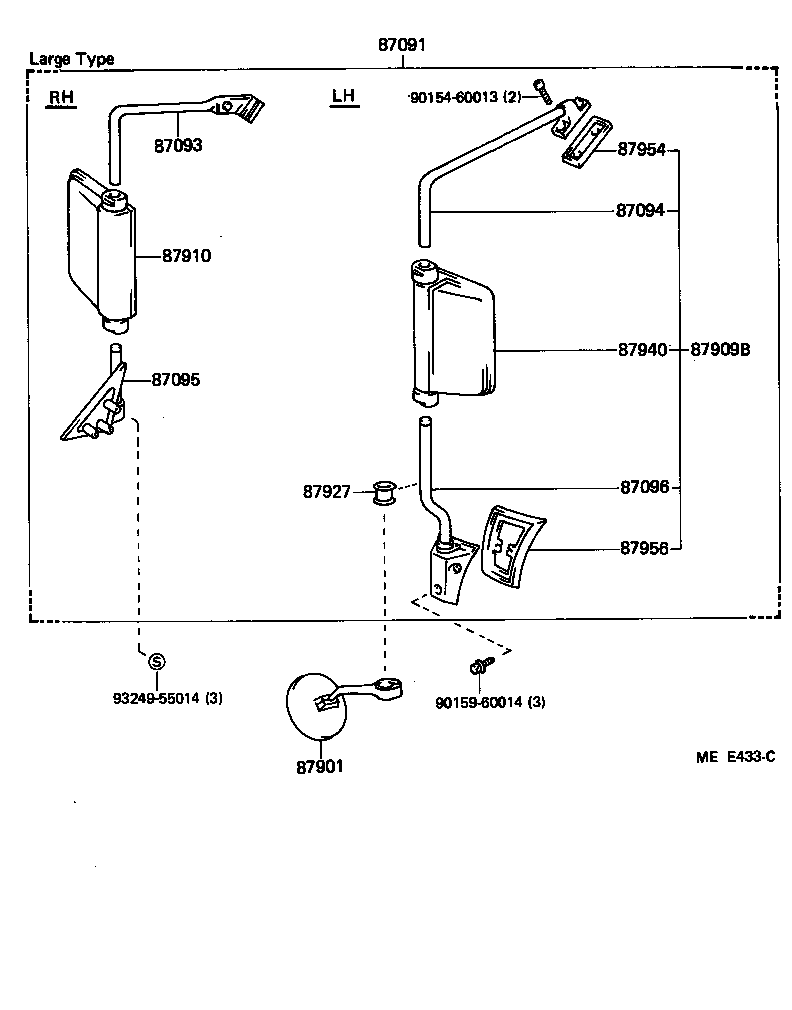

ILLUST NO. 2 OF 3(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87901 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-95J00 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87906-29015 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-80018 |
LH50,60,70,YH5#,61,71 STD TYPE |
1 | ||
| 87956 - GASKET, OUTER REAR VIEW MIRROR BASE, LOWER LH | ||||
| 87956-95J00 |
LH5#,6#,7#,YH50,51,71 |
1 | ||
| Common parts | ||||
| 90154-60013 | ||||
| 90159-60014 | ||||
| 93249-55014 | ||||
