LH70B-QD (1982)
Toyota Hiace Van,Wagon

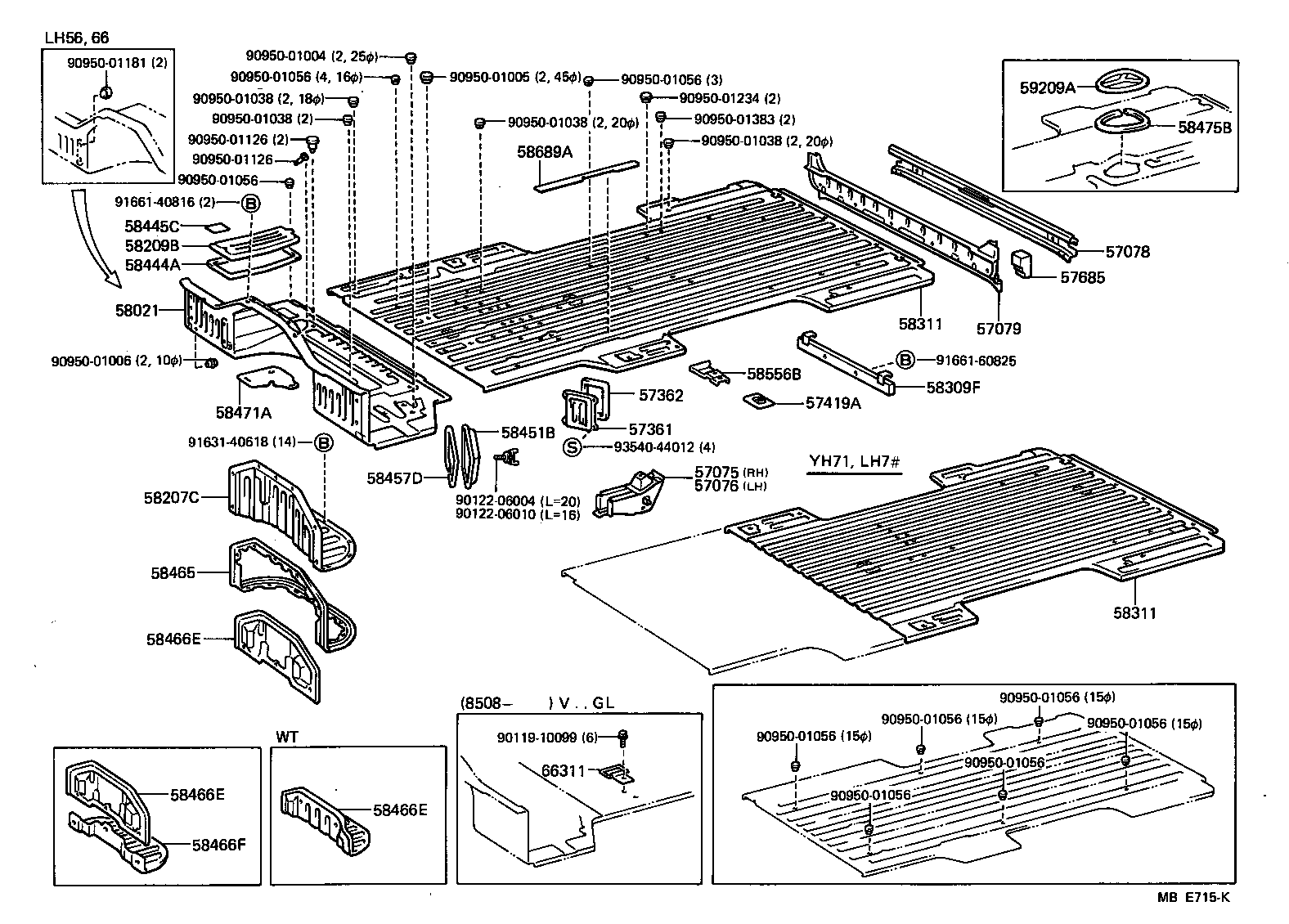

ILLUST NO. 1 OF 2(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57078-95J02 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57079-95J00 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 57361 - COVER, OUTRIGGER HOLE | ||||
| 57361-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 57362 - PACKING, OUTRIGGER HOLE COVER | ||||
| 57362-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 57685 - DUST PROOF, REAR FLOOR CROSSMEMBER | ||||
| 57685-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 58021 - PANEL SUB-ASSY, HEADER | ||||
| 58021-90C00 |
LH7#..15S |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J02 |
LH5#,6#,7#..ST |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58312-90C00 |
LH7#,YH71 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58312-90C00 |
LH7#,YH71 |
1 | ||
| 58444A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58444-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58445C - PAD, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58451-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 58457D - PACKING, AIR CLEANER SERVICE HOLE COVER | ||||
| 58457-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58465 - PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58465-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58466-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58466-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58466-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 58466F - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.2 | ||||
| 58466-95J01 |
LH5#,6#,7#..ST |
1 | ||
| 58689A - WEIGHT, REAR FLOOR | ||||
| 58688-95J00 |
LH6#,7#,YH71..15S L=650 |
1 | ||
| 58689-95J00 |
LH60,61,7#,YH71..15S L=800 |
6 | ||
| Common parts | ||||
| 90119-10099 | ||||
| 90122-06004 | ||||
| 90122-06010 | ||||
| 90950-01004 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01038 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01234 | ||||
| 90950-01383 | ||||
| 91631-40618 | ||||
| 91661-40816 | ||||
| 91661-60825 | ||||
| 93540-44012 | ||||

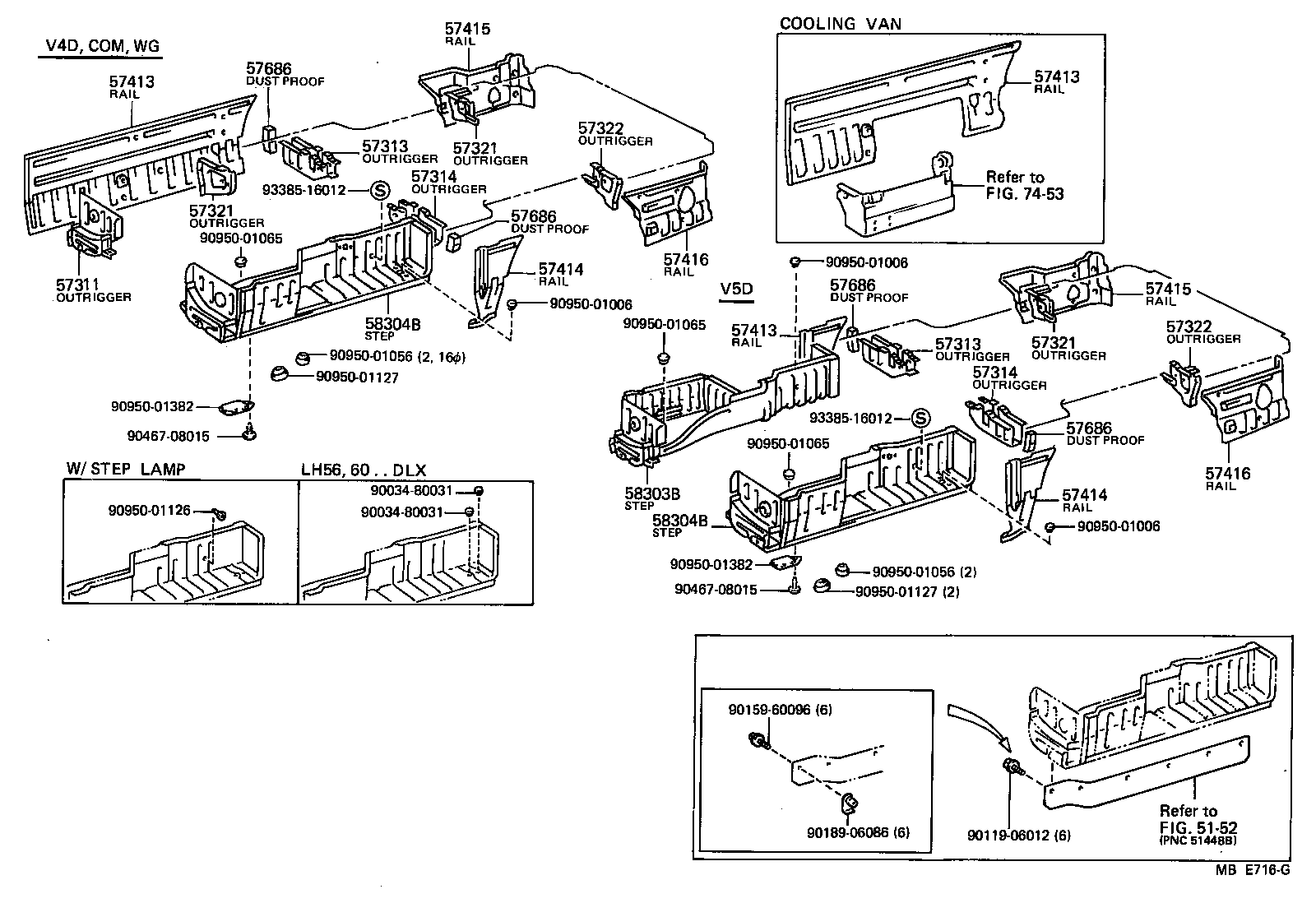

ILLUST NO. 2 OF 2(8212- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57301-95J00 |
LH5#,6#,7#,YH51,61,71..COM,WG |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57303-90C00 |
LH7#,YH71 |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57303-90C00 |
LH7#,YH71 |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J03 |
LH7#,YH71 |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J03 |
LH7#,YH71 |
1 | ||
| 57321 - OUTRIGGER, NO.4 RH | ||||
| 57317-95J00 |
LH6#,7#,YH71..15S FR |
1 | ||
| 57307-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST RR |
1 | ||
| 57321 - OUTRIGGER, NO.4 RH | ||||
| 57317-95J00 |
LH6#,7#,YH71..15S FR |
1 | ||
| 57307-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST RR |
1 | ||
| 57321 - OUTRIGGER, NO.4 RH | ||||
| 57317-95J00 |
LH6#,7#,YH71..15S FR |
1 | ||
| 57307-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST RR |
1 | ||
| 57322 - OUTRIGGER, NO.4 LH | ||||
| 57308-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
1 | ||
| 57322 - OUTRIGGER, NO.4 LH | ||||
| 57308-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-90C00 |
LH70,YH71..DLX..15S HANDY CAB |
1 | ||
| 57405-90C04 |
LH7#,YH71..15S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-90C00 |
LH70,YH71..DLX..15S HANDY CAB |
1 | ||
| 57405-90C04 |
LH7#,YH71..15S |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57405-90C00 |
LH70,YH71..DLX..15S HANDY CAB |
1 | ||
| 57405-90C04 |
LH7#,YH71..15S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-90C00 |
LH7#,YH71..15S |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57406-90C00 |
LH7#,YH71..15S |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J05 |
LH70,YH71..DLX |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J05 |
LH70,YH71..DLX |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-95J01 |
LH70,YH71..DLX |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57048-95J01 |
LH70,YH71..DLX |
1 | ||
| 57686 - DUST PROOF, OUTRIGGER | ||||
| 57686-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 57686 - DUST PROOF, OUTRIGGER | ||||
| 57686-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 57686 - DUST PROOF, OUTRIGGER | ||||
| 57686-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 57686 - DUST PROOF, OUTRIGGER | ||||
| 57686-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
2 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J06 |
LH6#,7#,YH61,71..(DLX,GL)..(10S,15S) |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J06 |
LH6#,7#,YH61,71..(DLX,GL)..(10S,15S) |
1 | ||
| Common parts | ||||
| 90034-80031 | ||||
| 90119-06012 | ||||
| 90159-60096 | ||||
| 90189-06086 | ||||
| 90467-08015 | ||||
| 90950-01006 | ||||
| 90950-01056 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 90950-01127 | ||||
| 90950-01382 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 7453 | ||||
