LH66V-MNG (1986)
Toyota Hiace Van,Wagon

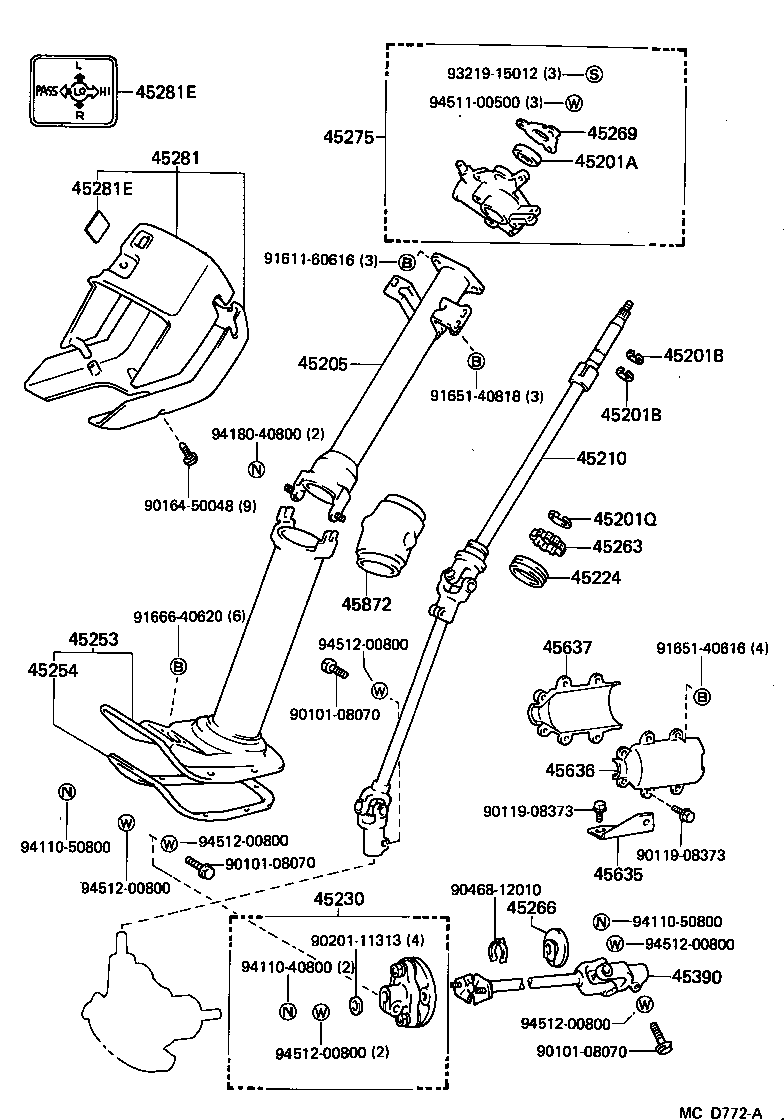

ILLUST NO. 1 OF 2(8608- )LH56,66
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,LWR |
1 | ||
| 90520-17269 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,LWR |
1 | ||
| 90520-17269 |
LH5#,6#,7#,YH5#,6#,71 厚さ=1.20,UPR |
1 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
LH5#,6#,7#,YH5#,6#,71 LWR |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26080 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL,STD |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26020 |
LH50,51,60,61,7#,YH5#,6#,71 W/POWER STEERING |
1 | ||
| 45210-26040 |
LH56,66 |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
LH5#,6#,7#,YH5#,6#,71 長さ=16 |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-26020 |
LH56,66 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45204-26010 |
LH56,66 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26050 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-26010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-26010 |
LH56,66 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26081 |
LH56,66,YH5#,61,71..V |
1 | ||
| 45307-26080 |
LH56,66,YH50,51,61,71..V |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-2609004 |
LH5#,6#,7#,YH5#,6#,71..CTM,DLX,GL,STD LWR,BLUE GRAY,BLUE |
1 | ||
| 45287-2609005 |
LH5#,6#,7#,YH5#,6#,71..DLX,GL,STD LWR,BEIGE,BEIGE |
1 | ||
| 45287-2611014 |
LH56,66..GL LWR,BLUE,BLUE |
1 | ||
| 45023-2619016 |
LH56,66 UPR,BROWN,BROWN |
1 | ||
| 45287-2611016 |
LH56,66 LWR,BROWN,BROWN |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 45390 - SHAFT ASSY, STEERING TORQUE | ||||
| 45390-26010 |
LH56,66 |
1 | ||
| 45635 - SUPPORT, INTERMEDIATE LINK JOINT PROTECTOR | ||||
| 45635-26010 |
LH56,66 |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-26010 |
LH56,66 |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-26010 |
LH56,66 |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-26010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08373 | ||||
| 90164-50048 | ||||
| 90201-11313 | ||||
| 90468-12010 | ||||
| 91611-60616 | ||||
| 91651-40616 | ||||
| 91651-40818 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94180-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||

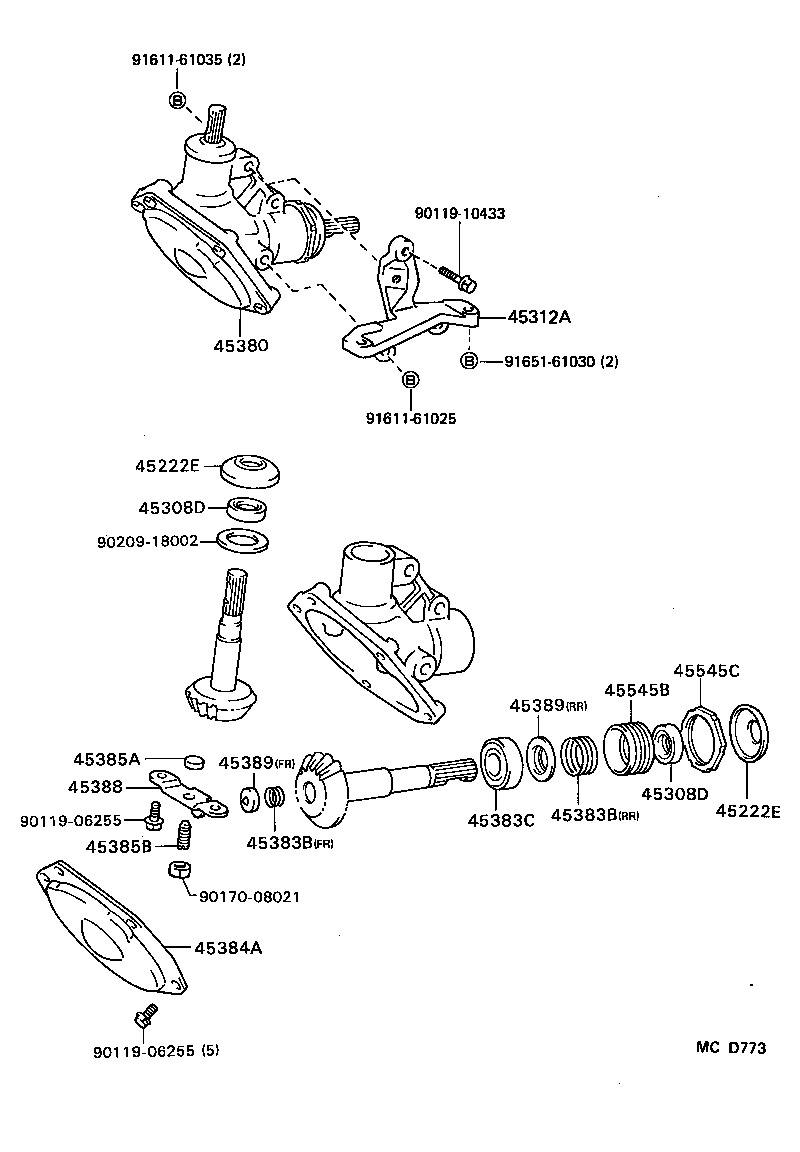

ILLUST NO. 2 OF 2(8608- )LH56,66
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
LH56,66 |
1 | ||
| 45222E - COVER, DUST(FOR STEERING BEVEL GEAR) | ||||
| 45222-27030 |
LH56,66 |
1 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
LH56,66 |
2 | ||
| 45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING) | ||||
| 90311-15001 |
LH56,66 |
2 | ||
| 45312A - BRACKET, STEERING BEVEL GEAR HOUSING | ||||
| 45312-26110 |
LH56,66 |
1 | ||
| 45380 - GEAR ASSY, STEERING BEVEL | ||||
| 45380-27010 |
LH56,66 |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
LH56,66 RR |
1 | ||
| 90501-20080 |
LH56,66 FR |
1 | ||
| 45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR) | ||||
| 90501-18063 |
LH56,66 RR |
1 | ||
| 90501-20080 |
LH56,66 FR |
1 | ||
| 45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR) | ||||
| 90363-15010 |
LH56,66 |
1 | ||
| 45384A - COVER, STEERING BEVEL GEAR | ||||
| 45384-27010 |
LH56,66 |
1 | ||
| 45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR) | ||||
| 45385-27010 |
LH56,66 |
1 | ||
| 45385B - BOLT, SET(FOR LOCK BOLT SEAT) | ||||
| 90113-08006 |
LH56,66 |
1 | ||
| 45388 - PLATE, STEERING BEVEL GEAR | ||||
| 45388-27010 |
LH56,66 |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
LH56,66 FR |
1 | ||
| 45389-27021 |
LH56,66 RR |
1 | ||
| 45389 - HOLDER, STEERING BEVEL GEAR SPRING | ||||
| 45389-27010 |
LH56,66 FR |
1 | ||
| 45389-27021 |
LH56,66 RR |
1 | ||
| 45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR | ||||
| 45545-10010 |
LH56,66 |
1 | ||
| 45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW | ||||
| 90179-38001 |
LH56,66 |
1 | ||
| Common parts | ||||
| 90119-06255 | ||||
| 90119-10433 | ||||
| 90170-08021 | ||||
| 90209-18002 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91651-61030 | ||||
