LH66V-MNFE (1987)
Toyota Hiace Van,Wagon

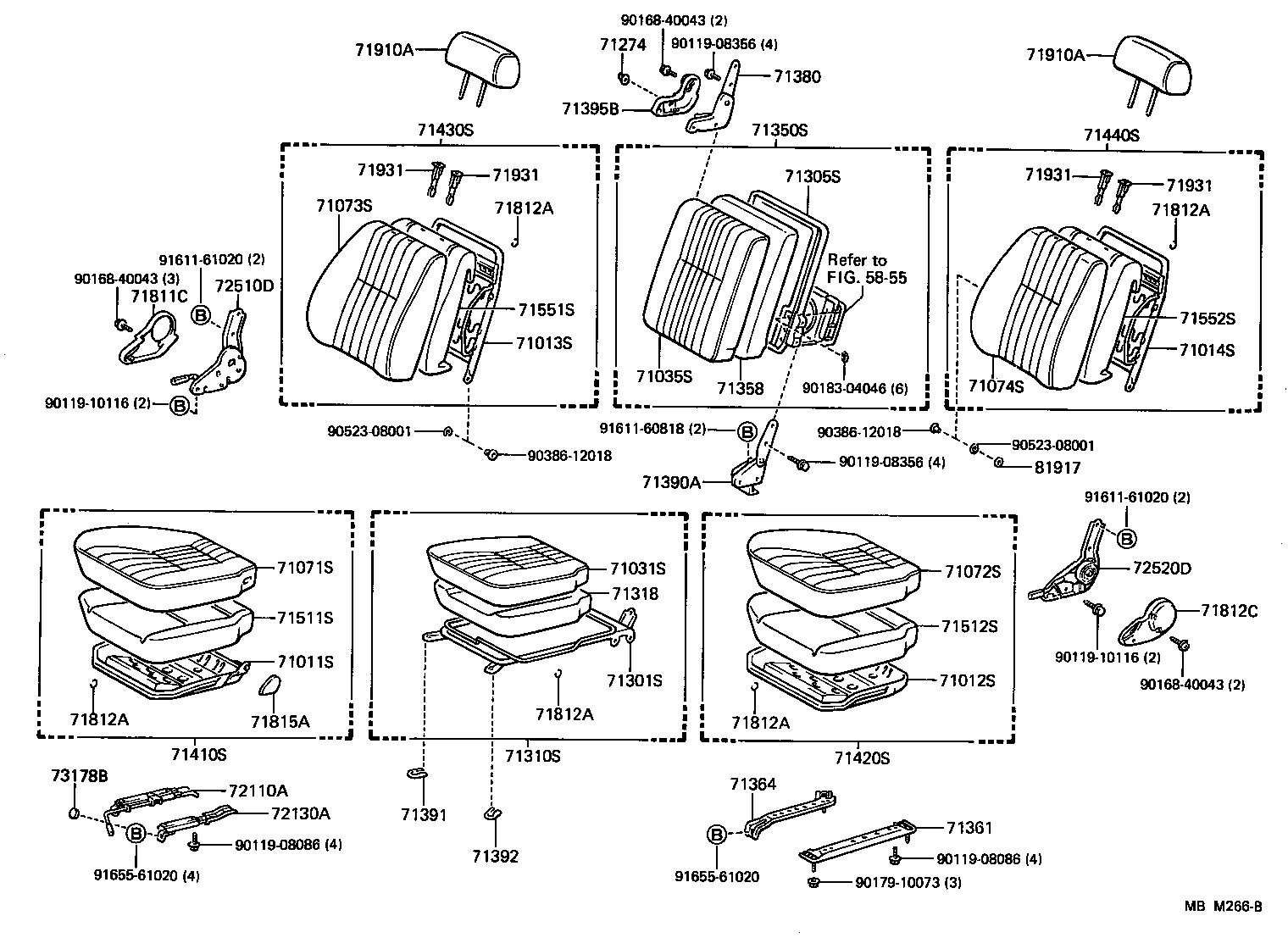

(8708- )GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J04 |
LH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S) |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71150-95J08 |
LH5#,6#,YH50,51,61..GL..(05S,09S) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71160-95J01 |
LH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J3414 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J4114 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95J5714 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95J7314 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71361 - BRACKET, FRONT SEAT SET, NO.1 | ||||
| 71361-95J01 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71364 - BRACKET, FRONT SEAT SET, NO.4 | ||||
| 71364-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J3714 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J4414 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95J5114 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95J5714 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95J02 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J02 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J04 |
LH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S) |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0014 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL BLUE,TRIM8# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S) |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S) |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S) |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S) |
62 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(CTM,GL,SGL)..(05S,09S) |
62 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95J0014 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL BLUE,TRIM8# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0014 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL BLUE,TRIM8# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J2404 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-95J2404 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71990-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71990-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71990-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71956-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ無,BLUE,TRIM8# |
2 | ||
| 71990-3002004 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL ﾛｯｸ付,BLUE,TRIM8# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-95J0114 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..CTM,GL,SCM,SGL BLUE,TRIM8# |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-95J0214 |
LH5#,6#,YH50,51,61..(CTM,GL)..(05S,09S) BLUE,TRIM8# |
1 | ||
| 73178B - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-95J00 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,71,YH50,51,57,61..CTM,GL,SCL,SCM,SGL |
2 | ||
| 81917 - WASHER, LEATHER | ||||
| 81917-95J0014 |
LH5#,6#,YH50,51,61..GL..(05S,09S) BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08356 | ||||
| 90119-10116 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90183-04046 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-60818 | ||||
| 91611-61020 | ||||
| 91655-61020 | ||||
| Linked diagrams | ||||
| 5855 | ||||

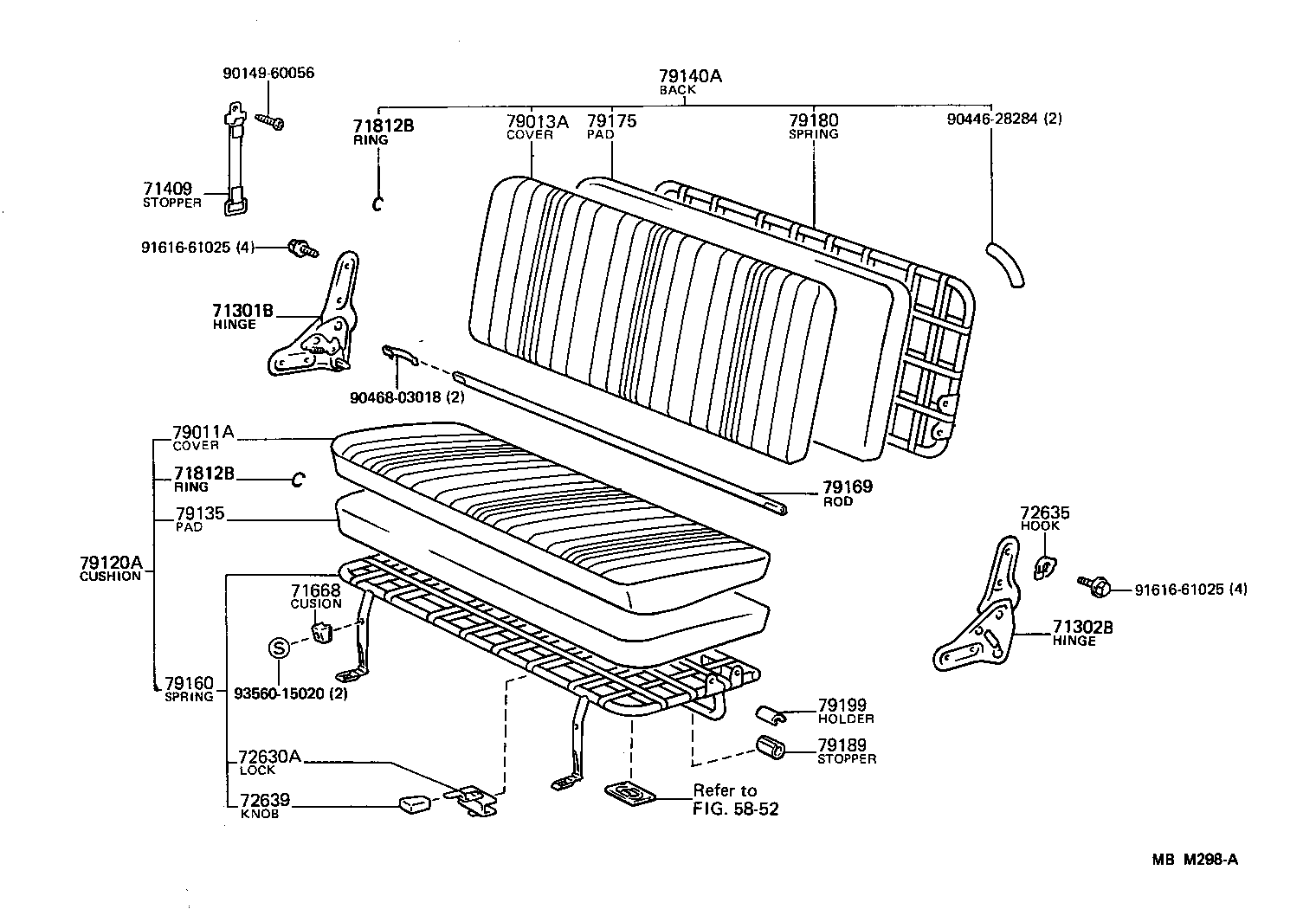

(8708- )LH56,66..DX,GL..05S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71330-95J0004 |
LH56,66..GL..05S BLUE,TRIM8# |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71340-95J0004 |
LH56,66..GL..05S BLUE,TRIM8# |
1 | ||
| 71409 - STOPPER SUB-ASSY, REAR SEAT BACK | ||||
| 71409-95J00 |
LH56,66..(DX,GL)..05S |
1 | ||
| 71668 - CUSHION, REAR NO.3 SEAT | ||||
| 71668-95700 |
LH56,66..(DX,GL)..05S |
2 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) |
9 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..05S,06S |
11 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) |
9 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,61,71..05S,06S |
11 | ||
| 72630A - LOCK ASSY, REAR NO.1 SEAT | ||||
| 72630-95J01 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) |
1 | ||
| 72635 - HOOK, REAR SEAT BACK LOCK | ||||
| 72635-95J04 |
LH56,66..(DX,GL)..05S |
1 | ||
| 72639 - KNOB, REAR SEAT LOCK | ||||
| 72639-95J00C0 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..(DX,GL)..(05S,06S) BLACK |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J3514 |
LH5#,6#,YH50,51,61..GL..05S BLUE,TRIM8# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J6014 |
LH56,66..GL..05S BLUE,TRIM8# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J7014 |
LH56,66..GL..05S BLUE,TRIM8# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-95J03 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(DX,GL)..(05S,06S,09S) |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95J6914 |
LH56,66..GL..05S BLUE,TRIM8# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J2201 |
LH56,66..GL..05S BLACK,TRIM8# |
1 | ||
| 79169 - ROD, REAR SEAT HINGE CONNECTOR | ||||
| 79169-95J02 |
LH66..SGL..08S;LH5#,6#,YH50,51,61..(DX,GL)..05S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-95J08 |
LH5#,6#,YH50,51,61..GL..05S |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-95J03 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(DX,GL)..(05S,06S,09S) |
1 | ||
| 79189 - STOPPER, NO.1 SEAT LEG | ||||
| 79189-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(05S,06S,09S) |
2 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(05S,06S,09S) |
2 | ||
| Common parts | ||||
| 90149-60056 | ||||
| 90446-28284 | ||||
| 90468-03018 | ||||
| 91616-61025 | ||||
| 93560-15020 | ||||
| Linked diagrams | ||||
| 5852 | ||||
