LH66V-MNE (1986)
Toyota Hiace Van,Wagon
Production
Aug 1986
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )LH56,66

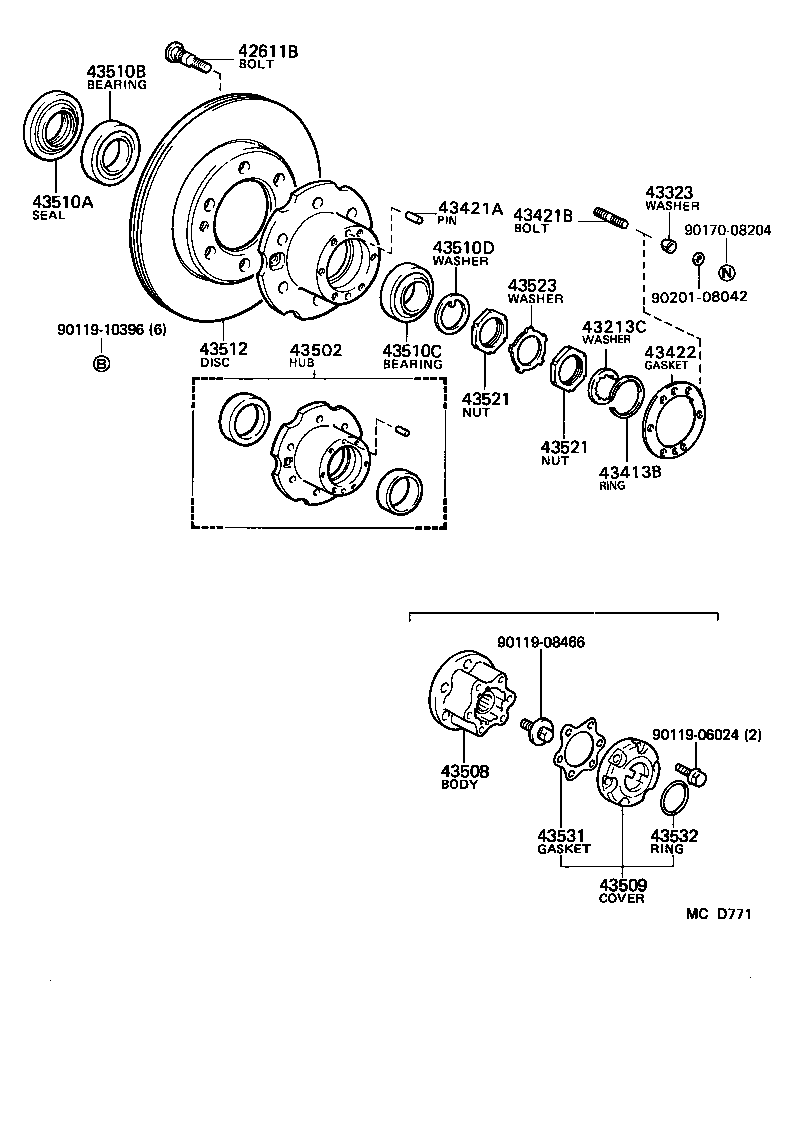

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02049 |
LH56,66 |
12 | ||
| 90942-02035 |
LH50,51,60,61,7#,YH5#,6#,71 FR DISC BRAKE |
10 | ||
| 43213C - SPACER (FOR DRIVE SHAFT) | ||||
| 90560-27005 |
LH56,66 厚さ=2.0 |
2 | ||
| 43323 - WASHER, CONE (FOR FRONT AXLE SHAFT) | ||||
| 42323-60010 |
LH56,66 |
12 | ||
| 43413B - RING, DRIVE SHAFT SNAP | ||||
| 90520-27023 |
LH56,66 |
2 | ||
| 43421A - PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90250-07057 |
LH56,66 |
4 | ||
| 43421B - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE) | ||||
| 90116-08325 |
LH56,66 |
12 | ||
| 43422 - GASKET, FRONT AXLE OUTER SHAFT FLANGE | ||||
| 43422-60020 |
LH56,66 |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-26050 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 43511-35904 |
LH56,66 |
2 | ||
| 43508 - BODY SUB-ASSY, FREE WHEEL HUB | ||||
| 43508-35010 |
LH56,66 |
2 | ||
| 43509 - COVER SUB-ASSY, FREE WHEEL HUB | ||||
| 43509-35030 |
LH56,66 |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50005 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 90311-66001 |
LH56,66 |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-34001 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 90368-49084 |
LH56,66 |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-21001 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 90368-45087 |
LH56,66 |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20007 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 90214-42030 |
LH56,66 |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-26040 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 43512-26081 |
LH56,66 |
2 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LH56,66 |
4 | ||
| 43521 - NUT, FRONT WHEEL ADJUSTING | ||||
| 43521-60011 |
LH56,66 |
4 | ||
| 43523 - WASHER, FRONT WHEEL ADJUSTING LOCK | ||||
| 90215-42025 |
LH56,66 |
2 | ||
| 43531 - GASKET, FREE WHEEL HUB | ||||
| 43531-60010 |
LH56,66 |
2 | ||
| 43532 - RING, FREE WHEEL HUB | ||||
| 43532-60010 |
LH56,66 |
2 | ||
| Common parts | ||||
| 90119-06024 | ||||
| 90119-08466 | ||||
| 90119-10396 | ||||
| 90170-08204 | ||||
| 90201-08042 | ||||
