LH66V-MEG (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )LH66..SGL ; (8708- )LH71,YH51,61..WG..DX ; (8708- )LH51..DX,SGL..0

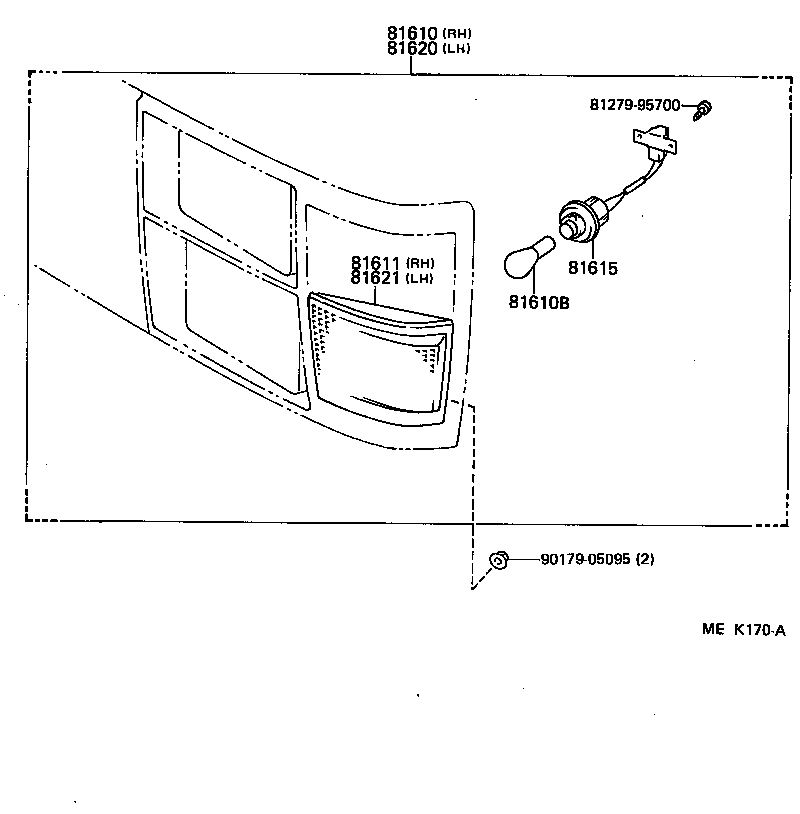

Click highlighted areas on diagram

diagram 8127995700 81610 81610B 81611 81615 81620 81621 9017905095
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-95J02

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
90981-13036

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

12V 35/5W

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-95J02

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

 1
81615 - SOCKET AND WIRE, CLEARANCE LAMP
81615-95J02

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

 2
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-95J02

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-95J02

LH66..SGL;LH71,YH51,61..WG..DX;LH51..(DX,SGL)..(05S,09S);LH61..(DX,SGL)..(05S,10S)

 1
Common parts
81279-95700
90179-05095
