LH66V-MEG (1987)
Toyota Hiace Van,Wagon

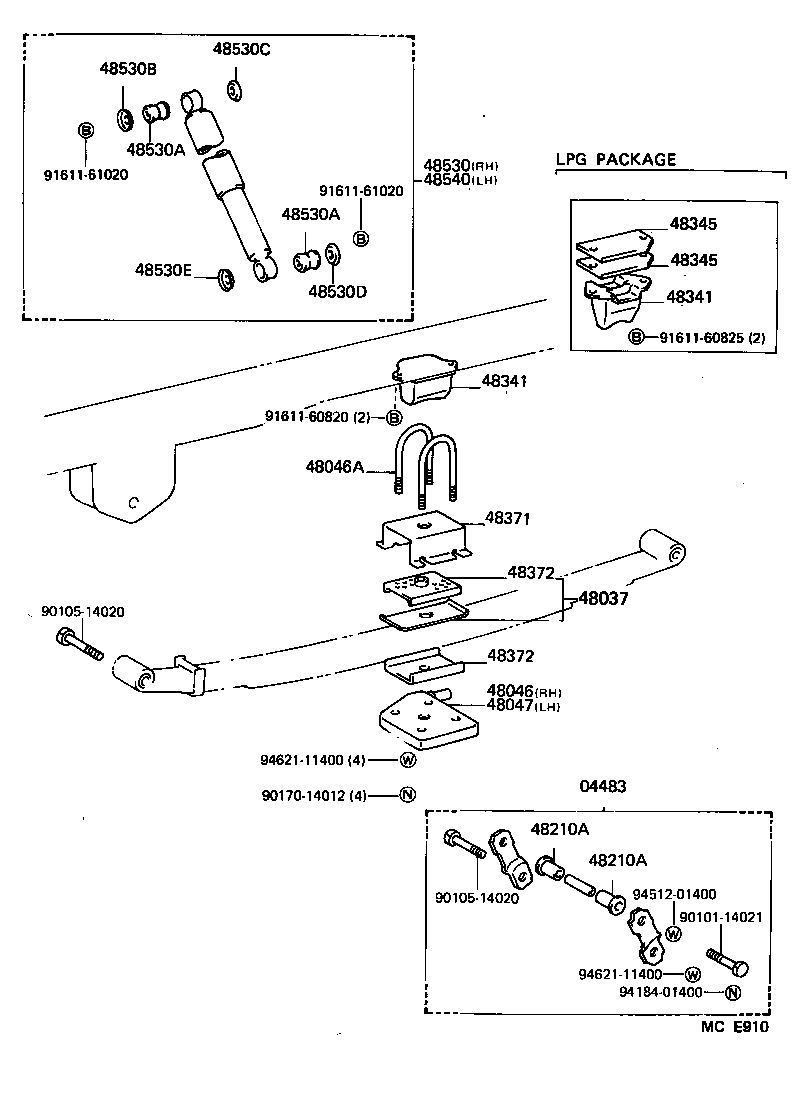

ILLUST NO. 1 OF 2(8708- )LH61,71,YH57,61..ST ; (8708- )LH5#,66,YH50,51,52,62,71..COM,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-26021 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 48037 - SPACER SUB-ASSY, REAR SPRING | ||||
| 48037-26030 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26090 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14050 |
LH56,66..05S;LH66..(DX,SGL)..08S 長さ=172 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-26080 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH56,66..05S;LH61,YH61..WT;LH66..(DX,SGL)..08S |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH56,66..05S;LH61,YH61..WT;LH66..(DX,SGL)..08S |
4 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26020 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26020 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-26110 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-26030 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(03S,05S,06S,09S,15S)..ST |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80041 |
LH51,61,71,YH50,51,52,6#,71..(COM,V)..ST |
1 | ||
| 48531-80130 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) 上側 |
2 | ||
| 90385-19006 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) 下側 |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16009 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) 上側 |
2 | ||
| 90385-19006 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) 下側 |
2 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
LH61,71,YH61;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH61,71,YH61;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03015 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80041 |
LH51,61,71,YH50,51,52,6#,71..(COM,V)..ST |
1 | ||
| 48531-80130 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| Common parts | ||||
| 90101-14021 | ||||
| 90105-14020 | ||||
| 90170-14012 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 94184-01400 | ||||
| 94512-01400 | ||||
| 94621-11400 | ||||

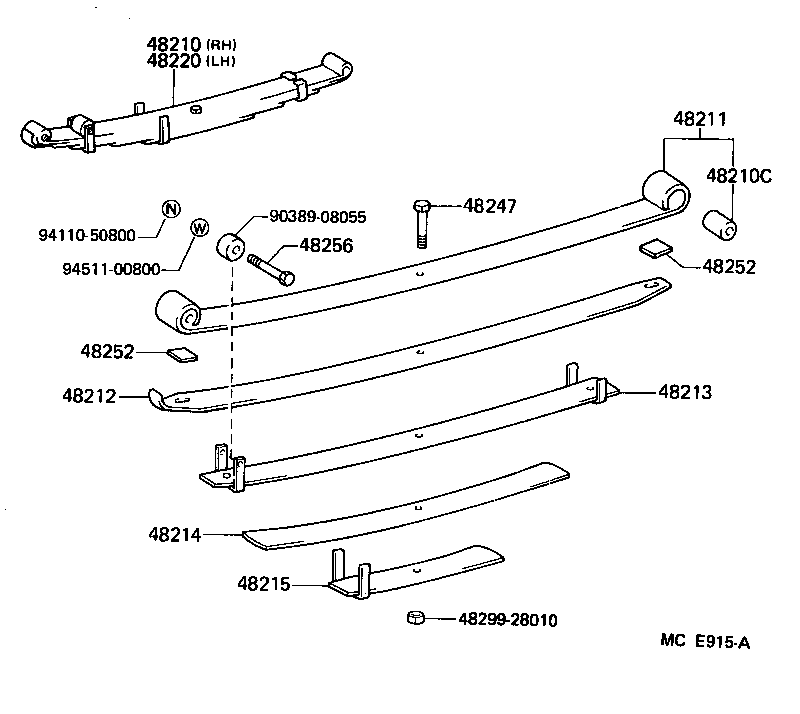

ILLUST NO. 2 OF 2(8708- )LH56,66
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH56,66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26450 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26260 |
LH51,61,71,YH50,51,52,6#,71..(COM,V)..ST |
2 | ||
| 48247-26280 |
LH56,66..05S;LH61,YH61..WT;LH66..(DX,SGL)..08S |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH56,66..05S;LH61,YH61..WT;LH66..(DX,SGL)..08S |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH56,66..05S;LH61,YH61..WT;LH66..(DX,SGL)..08S |
4 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-26450 |
LH56,66,71..05S,10S;LH66..(DX,SGL)..08S |
2 | ||
| Common parts | ||||
| 48299-28010 | ||||
| 90389-08055 | ||||
| 94110-50800 | ||||
| 94511-00800 | ||||
