LH66V-MEE (1987)
Toyota Hiace Van,Wagon

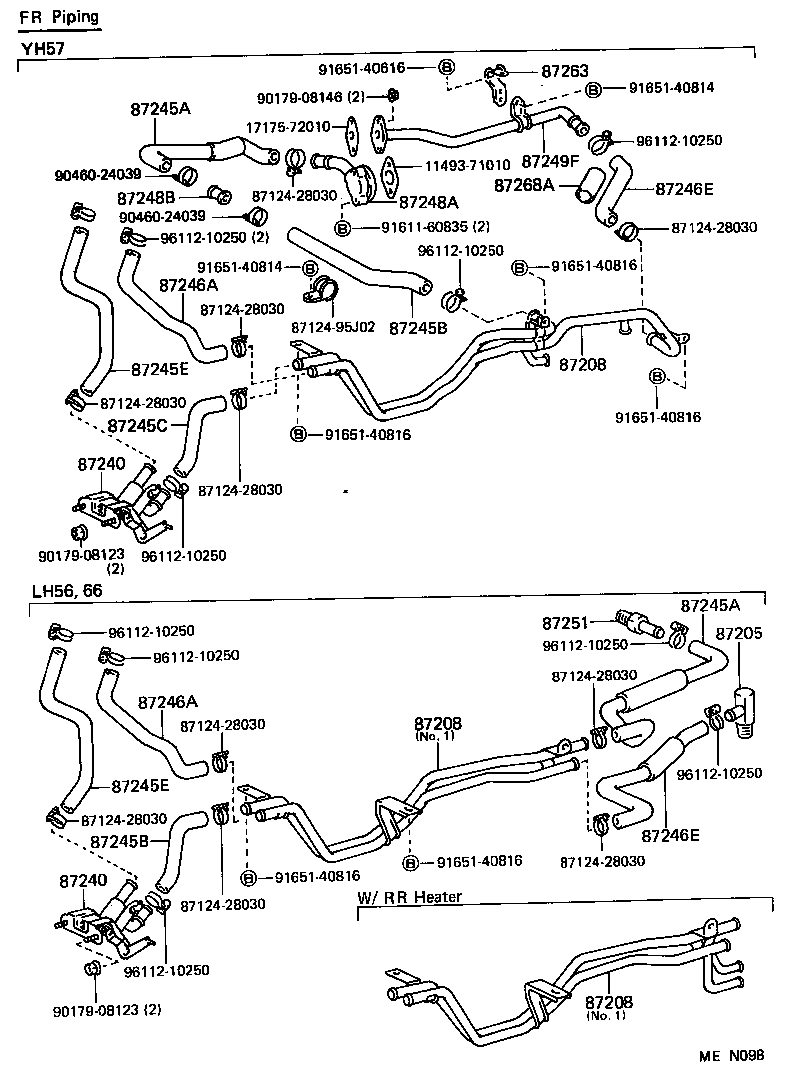

ILLUST NO. 1 OF 2(8708- )LH51,61,71,YH50,51,52,6#,71
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30230 |
LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)..DSL |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J41 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J10 |
YH50,51,52,6#,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J41 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J10 |
YH50,51,52,6#,71 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J27 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J29 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J27 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J29 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J26 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J28 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J26 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J28 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J31 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J12 |
YH50,51,52,6#,71 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J31 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J12 |
YH50,51,52,6#,71 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J60 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J60 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J59 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J59 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J59 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-95J59 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87208-28021 |
YH5#,6#,71 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-28011 |
YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-28030 | ||||
| 87124-90B00 | ||||
| 87436-95J04 | ||||
| 87436-95J05 | ||||
| 88718-95J38 | ||||
| 90119-08063 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90461-08157 | ||||
| 90461-08573 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 93315-15010 | ||||
| 96112-10250 | ||||

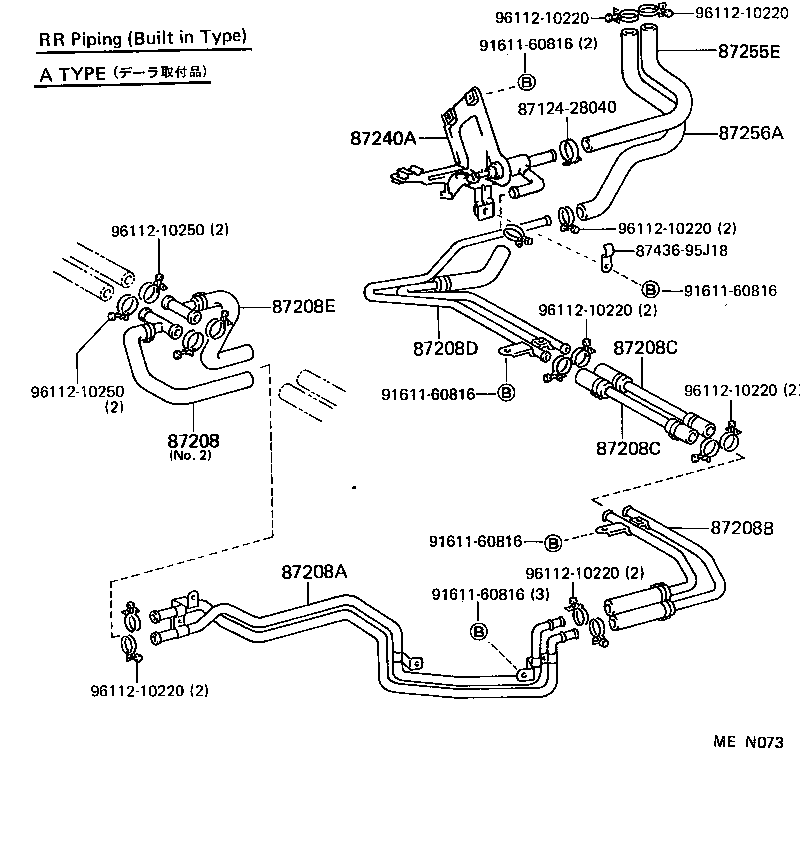

ILLUST NO. 2 OF 2(8708- )LH56,66..V4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95J27 |
LH56..V4D;LH66..GL..05S;LH66..V5D..DX |
1 | ||
| 87208-95J27 |
LH56..V4D;LH66..GL..05S;LH66..V5D..DX |
1 | ||
| 87208-95J27 |
LH66..SGL..05S |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95J27 |
LH56..V4D;LH66..GL..05S;LH66..V5D..DX |
1 | ||
| 87208-95J27 |
LH56..V4D;LH66..GL..05S;LH66..V5D..DX |
1 | ||
| 87208-95J27 |
LH66..SGL..05S |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87207-95J55 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87208-95J28 |
LH66..DX,SGL ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋｰﾀ),B TYPE |
1 | ||
| 87207-95J55 |
LH66..SGL..05S ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),A TYPE |
1 | ||
| 87207-95J55 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J05 |
LH56,66..V4D..05S;LH66..(DX,SGL)..08S ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20200 |
LH66..V5D..DX;LH66..(GL,SGL)..05S;LH5#,71..V4D..(05S,06S);LH61..(05S,06S,09S)..ST 長さ=200 |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20490 |
LH56..V4D;LH66..V5D..DX;LH66..(DX,SGL)..08S;LH66..(GL,SGL)..05S *H,L=490 |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20490 |
LH56,66..V4D..05S;LH66..(DX,SGL)..08S *H,L=490 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20490 |
LH56,66..V4D..05S;LH66..(DX,SGL)..08S *H,L=490 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20490 |
LH66..(DX,SGL)..08S;LH56,66,YH50,61..V4D..(DX,GL)..(05S,06S)..ST *H,L=490 |
1 | ||
| 99556-21000 |
LH56,66..V4D..05S;LH66,71,YH71..(DX,SGL)..(06S,08S,09S,10S) 長さ=1000 |
1 | ||
| 99556-20490 |
LH61..10S;LH66..SGL..05S;LH51,61..V4D..(05S,06S,09S)..ST;LH51,YH51,61..(DX,GL)..(09S,10S) *H,L=490 |
1 | ||
| 99556-20490 |
LH66..(DX,SGL)..08S;LH56,66,YH50,61..V4D..(DX,GL)..(05S,06S)..ST *H,L=490 |
1 | ||
| 99556-21000 |
LH71,YH71;LH56,66..V4D..05S;LH66..(DX,SGL)..08S 長さ=1000 |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-20350 |
LH56..V4D;LH66..(DX,SGL)..08S;LH66..V4D..(GL,SGL)..05S *H,L=350 |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20200 |
LH66..V5D..DX;LH66..(GL,SGL)..05S;LH5#,71..V4D..(05S,06S);LH61..(05S,06S,09S)..ST 長さ=200 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 87124-95J12 | ||||
| 87398-95A00 | ||||
| 87436-95J13 | ||||
| 91611-60816 | ||||
| 96112-10220 | ||||

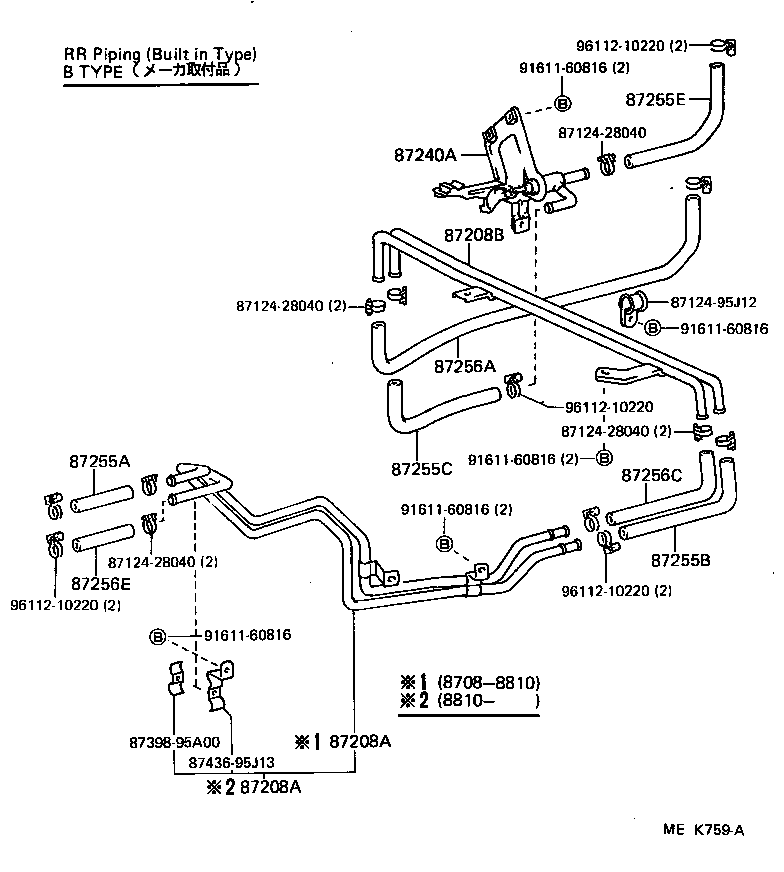

ILLUST NO. 2 OF 2(8708- )LH56,66..V4D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL) NO.2 |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208-95J22 |
LH56,66..05S;LH66..(DX,SGL)..08S NO.1 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S) NO.2 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S NO.1,ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208A - PIPE SUB-ASSY, HEATER WATER, A | ||||
| 87208-95J27 |
LH56..V4D;LH66..GL..05S;LH66..V5D..DX |
1 | ||
| 87208-95J27 |
LH56..V4D;LH66..GL..05S;LH66..V5D..DX |
1 | ||
| 87208-95J27 |
LH66..SGL..05S |
1 | ||
| 87208B - PIPE SUB-ASSY, HEATER WATER, B | ||||
| 87207-95J55 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87208-95J28 |
LH66..DX,SGL ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔﾋｰﾀ),B TYPE |
1 | ||
| 87207-95J55 |
LH66..SGL..05S ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ),A TYPE |
1 | ||
| 87207-95J55 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87207-95J24 |
LH66..SGL..05S;LH51..V4D..(05S,06S);LH71,YH51..(V,WG)..DX;LH61..(V,WG)..(DX,GL,SGL)..ST;LH51,YH61,71..(DX,GL)..(09S,10S) |
2 | ||
| 87207-95J24 |
LH66..(DX,SGL)..08S;LH56,YH50,71..V4D..(05S,06S);LH66,YH61..(DX,GL)..(05S,06S)..ST |
2 | ||
| 87207-95J24 |
LH66..(DX,SGL)..08S;LH56,YH50,71..V4D..(05S,06S);LH66,YH61..(DX,GL)..(05S,06S)..ST |
2 | ||
| 87207-95J24 |
LH66..SGL..05S;LH51..V4D..(05S,06S);LH71,YH51..DX..(06S,09S);LH61..(V,WG)..(DX,GL,SGL)..ST;LH51,YH61,71..(DX,GL)..(09S,10S) |
2 | ||
| 87208C - PIPE SUB-ASSY, HEATER WATER, C | ||||
| 87207-95J24 |
LH66..SGL..05S;LH51..V4D..(05S,06S);LH71,YH51..(V,WG)..DX;LH61..(V,WG)..(DX,GL,SGL)..ST;LH51,YH61,71..(DX,GL)..(09S,10S) |
2 | ||
| 87207-95J24 |
LH66..(DX,SGL)..08S;LH56,YH50,71..V4D..(05S,06S);LH66,YH61..(DX,GL)..(05S,06S)..ST |
2 | ||
| 87207-95J24 |
LH66..(DX,SGL)..08S;LH56,YH50,71..V4D..(05S,06S);LH66,YH61..(DX,GL)..(05S,06S)..ST |
2 | ||
| 87207-95J24 |
LH66..SGL..05S;LH51..V4D..(05S,06S);LH71,YH51..DX..(06S,09S);LH61..(V,WG)..(DX,GL,SGL)..ST;LH51,YH61,71..(DX,GL)..(09S,10S) |
2 | ||
| 87208D - PIPE SUB-ASSY, HEATER WATER, D | ||||
| 87208-95J48 |
LH66..V4D..GL..05S |
1 | ||
| 87208-95J48 |
LH66..SGL..05S |
1 | ||
| 87208-95J48 |
LH66..V4D..GL..05S |
1 | ||
| 87208E - PIPE SUB-ASSY, HEATER WATER, E | ||||
| 87207-95J26 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87207-95J26 |
LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL) |
1 | ||
| 87207-95J26 |
LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S) |
1 | ||
| 87207-95J26 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87240A - VALVE ASSY, REAR HEATER WATER | ||||
| 87240-95J05 |
LH56,66..V4D..05S;LH66..(DX,SGL)..08S ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 99556-20490 |
LH56,66..V4D..05S;LH66..(DX,SGL)..08S *H,L=490 |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 99556-20490 |
LH66..(DX,SGL)..08S;LH56,66,YH50,61..V4D..(DX,GL)..(05S,06S)..ST *H,L=490 |
1 | ||
| 99556-21000 |
LH56,66..V4D..05S;LH66,71,YH71..(DX,SGL)..(06S,08S,09S,10S) 長さ=1000 |
1 | ||
| 99556-20490 |
LH61..10S;LH66..SGL..05S;LH51,61..V4D..(05S,06S,09S)..ST;LH51,YH51,61..(DX,GL)..(09S,10S) *H,L=490 |
1 | ||
| 99556-20490 |
LH66..(DX,SGL)..08S;LH56,66,YH50,61..V4D..(DX,GL)..(05S,06S)..ST *H,L=490 |
1 | ||
| 99556-21000 |
LH71,YH71;LH56,66..V4D..05S;LH66..(DX,SGL)..08S 長さ=1000 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 87436-95J18 | ||||
| 91611-60816 | ||||
| 96112-10220 | ||||
| 96112-10250 | ||||
ILLUST NO. 1 OF 2(8708- )LH56,66,YH57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-30230 |
LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)..DSL |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL) NO.2 |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208-95J22 |
LH56,66..05S;LH66..(DX,SGL)..08S NO.1 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S) NO.2 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S NO.1,ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL) NO.2 |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208-95J22 |
LH56,66..05S;LH66..(DX,SGL)..08S NO.1 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S) NO.2 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S NO.1,ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL) NO.2 |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87208-95J22 |
LH56,66..05S;LH66..(DX,SGL)..08S NO.1 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S) NO.2 |
1 | ||
| 87208-95J23 |
LH56..V4D;LH66..05S;LH66..(DX,SGL)..08S NO.1,ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 87207-95J27 |
LH56..V4D;LH66..(DX,GL)..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J41 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J10 |
YH50,51,52,6#,71 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95J41 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J10 |
YH50,51,52,6#,71 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J27 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J29 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-95J27 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J29 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95J42 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J26 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J28 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-95J26 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 87245-95J28 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J31 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J12 |
YH50,51,52,6#,71 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95J31 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 87245-95J12 |
YH50,51,52,6#,71 |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YH5#,6#,71 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-95J60 |
YH50,51,52,6#,71..CD,DX,GL |
1 | ||
| 87249F - PIPE, HEATER WATER OUTLET, F | ||||
| 87208-28021 |
YH5#,6#,71 |
1 | ||
| 87251 - JOINT OR UNION, WATER HOSE THROUGH | ||||
| 87251-30200 |
LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S |
1 | ||
| 87263 - BRACKET, HEATER WATER PIPE, NO.1 | ||||
| 87263-28011 |
YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-28030 | ||||
| 87124-95J02 | ||||
| 90179-08123 | ||||
| 90179-08146 | ||||
| 90460-24039 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
