LH66V-MEE (1987)
Toyota Hiace Van,Wagon
(8708- )LH51,61,71,YH50,51,52,6#,71

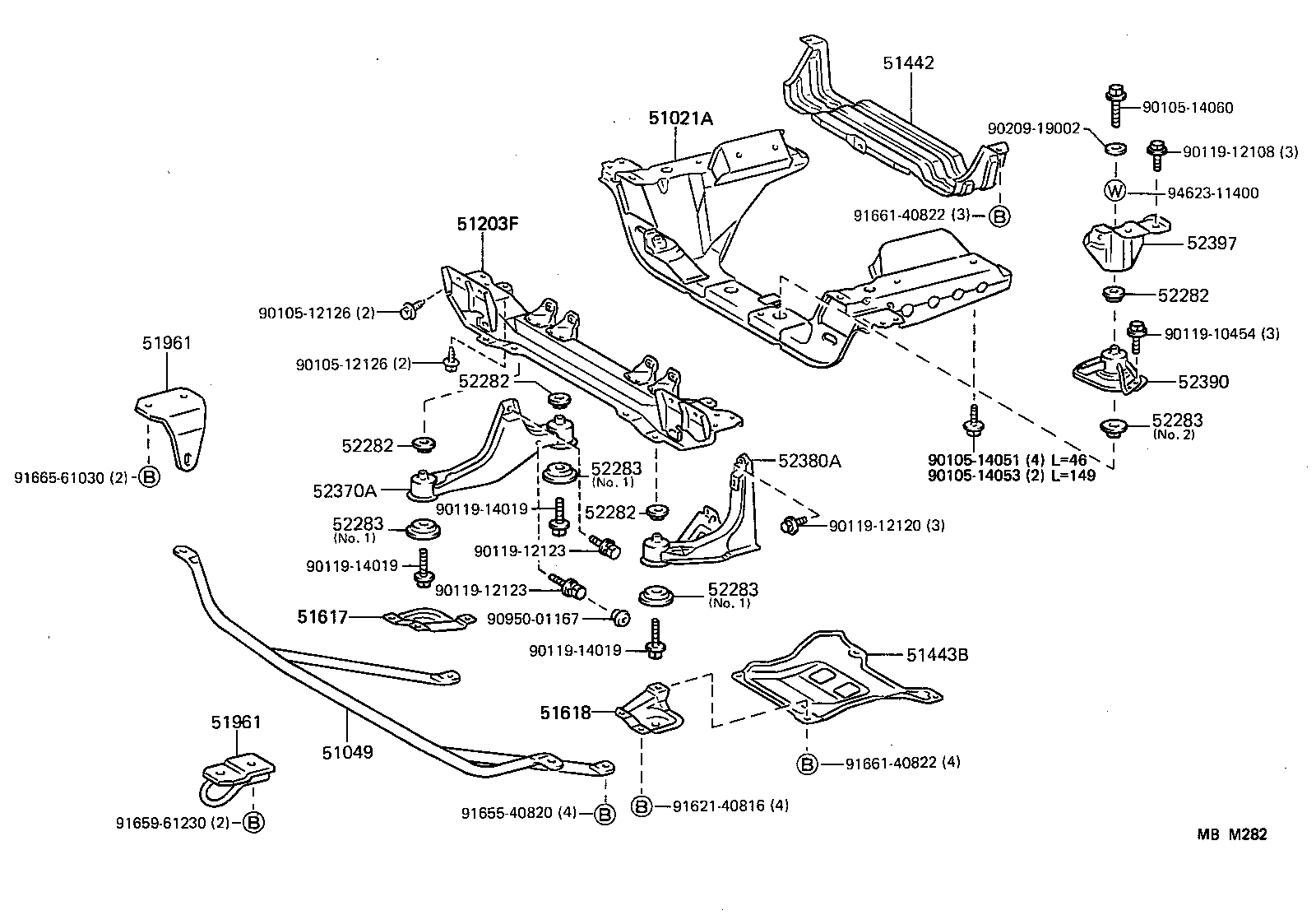

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-95J06 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51021-95J04 |
YH50,51,52,6#,71 |
1 | ||
| 51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-95J00 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 51203-95J04 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51215A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51215-95J00 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 51216A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51216-95J00 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4 | ||||
| 51446-95J01 |
YH50,51,52,6#,71 左側 |
1 | ||
| 51444-95J01 |
YH50,51,52,6#,71 右側 |
1 | ||
| 51409A - COVER SUB-ASSY, ENGINE UNDER, NO.4 | ||||
| 51446-95J01 |
YH50,51,52,6#,71 左側 |
1 | ||
| 51444-95J01 |
YH50,51,52,6#,71 右側 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-95J01 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51443B - COVER, ENGINE UNDER, NO.3 | ||||
| 51443-95J02 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-26081 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S) 左側 |
1 | ||
| 51970-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 右側 |
1 | ||
| Common parts | ||||
| 88688-95J09 | ||||
| 90105-14018 | ||||
| 90105-14019 | ||||
| 90159-60096 | ||||
| 90189-06086 | ||||
| 91621-40816 | ||||
| 91655-61025 | ||||
| 91659-61230 | ||||
| 91661-40822 | ||||
| 93335-16030 | ||||
(8708- )LH56,66,YH57
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-95J06 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51021-95J04 |
YH50,51,52,6#,71 |
1 | ||
| 51049 - BAR SUB-ASSY, UNDER GUARD, FRONT | ||||
| 51040-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51203F - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-95J00 |
LH51,61,71,YH50,51,52,6#,71 |
1 | ||
| 51203-95J04 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-95J01 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51443B - COVER, ENGINE UNDER, NO.3 | ||||
| 51443-95J02 |
LH56,66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51617 - GUARD, FRONT DIFFERENTIAL SUPPORT, RH | ||||
| 51617-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51618 - GUARD, FRONT DIFFERENTIAL SUPPORT, LH | ||||
| 51618-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-26081 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S) 左側 |
1 | ||
| 51970-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 右側 |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-26081 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,DX,GL,SGL)..(03S,05S,06S,09S,10S,15S) 左側 |
1 | ||
| 51970-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S 右側 |
1 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
4 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.1 |
3 | ||
| 52283-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.1 |
3 | ||
| 52283-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.1 |
3 | ||
| 52283-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.1 |
3 | ||
| 52283-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S NO.2 |
1 | ||
| 52370A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH | ||||
| 52370-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR | ||||
| 52390-95J01 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| 52397 - BRACKET, FRONT DIFFERENTIAL REAR SUPPORT | ||||
| 52397-95J00 |
LH56,YH57;LH66..05S;LH66..(DX,SGL)..08S |
1 | ||
| Common parts | ||||
| 90105-12126 | ||||
| 90105-14051 | ||||
| 90105-14053 | ||||
| 90105-14060 | ||||
| 90119-10454 | ||||
| 90119-12108 | ||||
| 90119-12120 | ||||
| 90119-12123 | ||||
| 90119-14019 | ||||
| 90209-19002 | ||||
| 90950-01167 | ||||
| 91621-40816 | ||||
| 91655-40820 | ||||
| 91659-61230 | ||||
| 91661-40822 | ||||
| 91665-61030 | ||||
| 94623-11400 | ||||
