LH66V-MDG (1986)
Toyota Hiace Van,Wagon

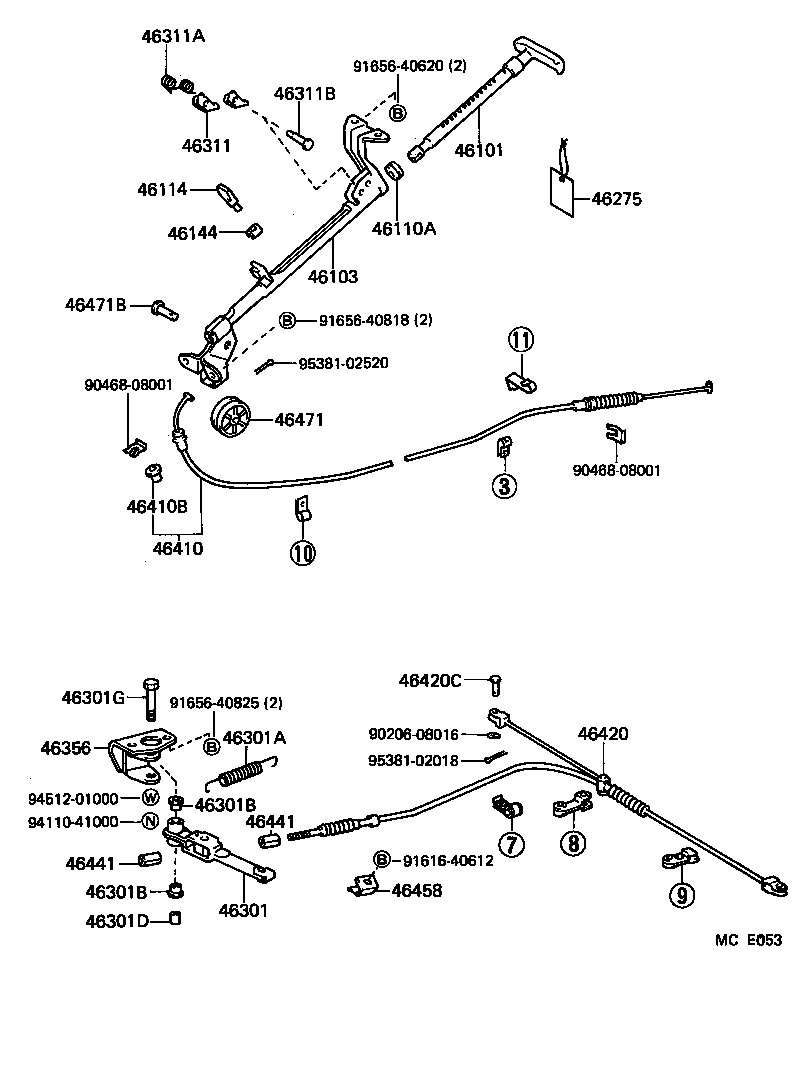

ILLUST NO. 1 OF 2(8608- )LH56,66
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46120-26050 |
LH56,66 |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26080 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-26020 |
LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST |
1 | ||
| 46301-26050 |
LH56,66 |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-20007 |
LH50,51,60,61,7#,YH5#,6#,71..COM,V |
1 | ||
| 90506-20053 |
LH56,66 |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13192 |
LH56,66 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13192 |
LH56,66 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10003 |
LH56,66 |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-10039 |
LH56,66 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-26110 |
LH56,66 |
1 | ||
| 46356-26040 |
LH50,51,60,61,7#,YH5#,6#,71..(COM,V)..ST |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26170 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 46410-26280 |
LH56,66 |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-20004 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26090 |
LH6#,YH6#..ST |
1 | ||
| 46420-26180 |
LH66 |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91616-40612 | ||||
| 91656-40620 | ||||
| 91656-40818 | ||||
| 91656-40825 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 95381-02018 | ||||
| 95381-02520 | ||||
