LH66V-MDFE (1986)

Toyota Hiace Van,Wagon

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )LH56,66

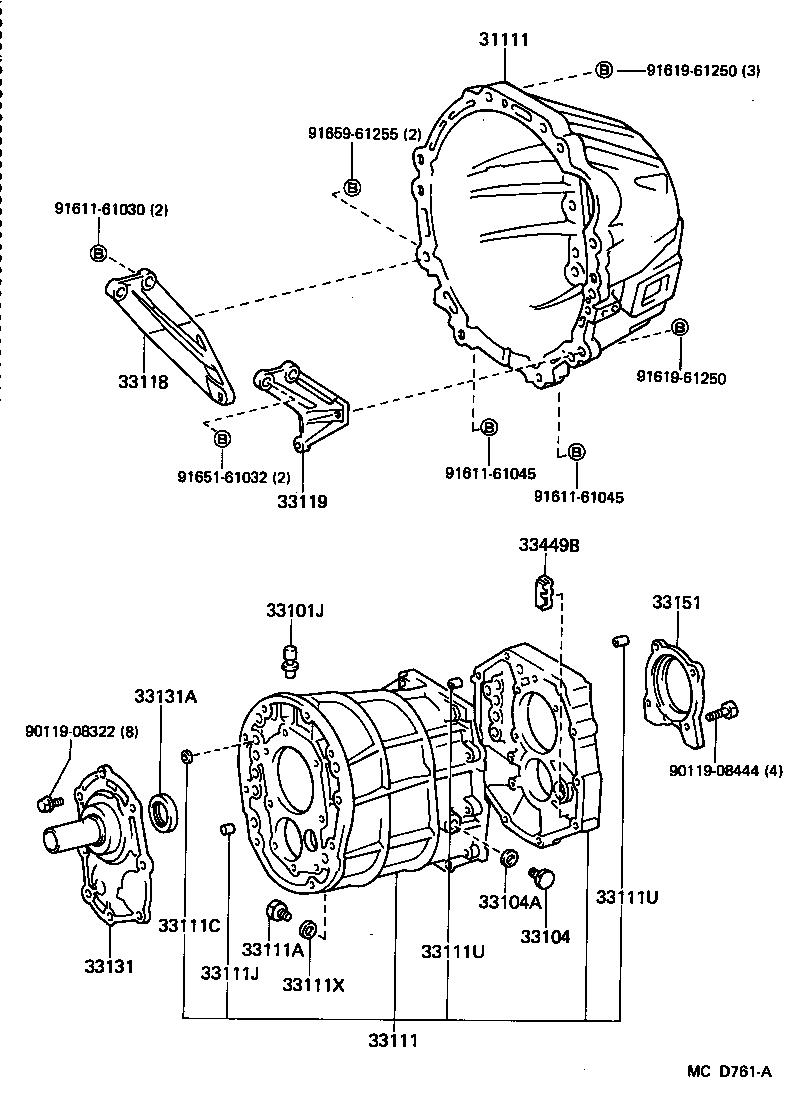

Click highlighted areas on diagram

diagram 31111 33101J 33104 33104A 33111 33111A 33111C 33111J 33111U 33111U 33111X 33118 33119 33131 33131A 33151 33449B 9011908322 9011908444 9161161030 9161161045 9161161045 9161961250 9161961250 9165161032 9165961255
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-26020

LH56,66

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

LH56,66

 1
90341-18057

LH50,51,60,61,7#,YH5#,6#,71..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18007

LH5#,6#,7#,YH5#,6#,71..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33101-26030

LH56,66

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

LH5#,6#,7#,YH5#,6#,71..MTM

長さ=16,外径=12

 4
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18007

LH5#,6#,7#,YH5#,6#,71..MTM

 1
33118 - PLATE, STIFFENER, RH(MTM)
33118-25020

LH5#,6#,7#..MTM

 1
33118-28010

YH5#,6#,71..MTM

 1
33119 - PLATE, STIFFENER, LH(MTM)
33119-28010

YH5#,6#,71..MTM

 1
33119-26010

LH56,66

 1
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35030

LH56,66

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-30115

LH50,51,60,61,7#,YH5#,6#,71..MTM

 1
90311-32012

LH56,66

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

LH56,66

 1
33449B - MAGNET, TRANSMISSION
33449-35010

LH56,66

 1
Common parts
90119-08322
90119-08444
91611-61030
91611-61045
91619-61250
91651-61032
91659-61255
