LH66V-MDFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

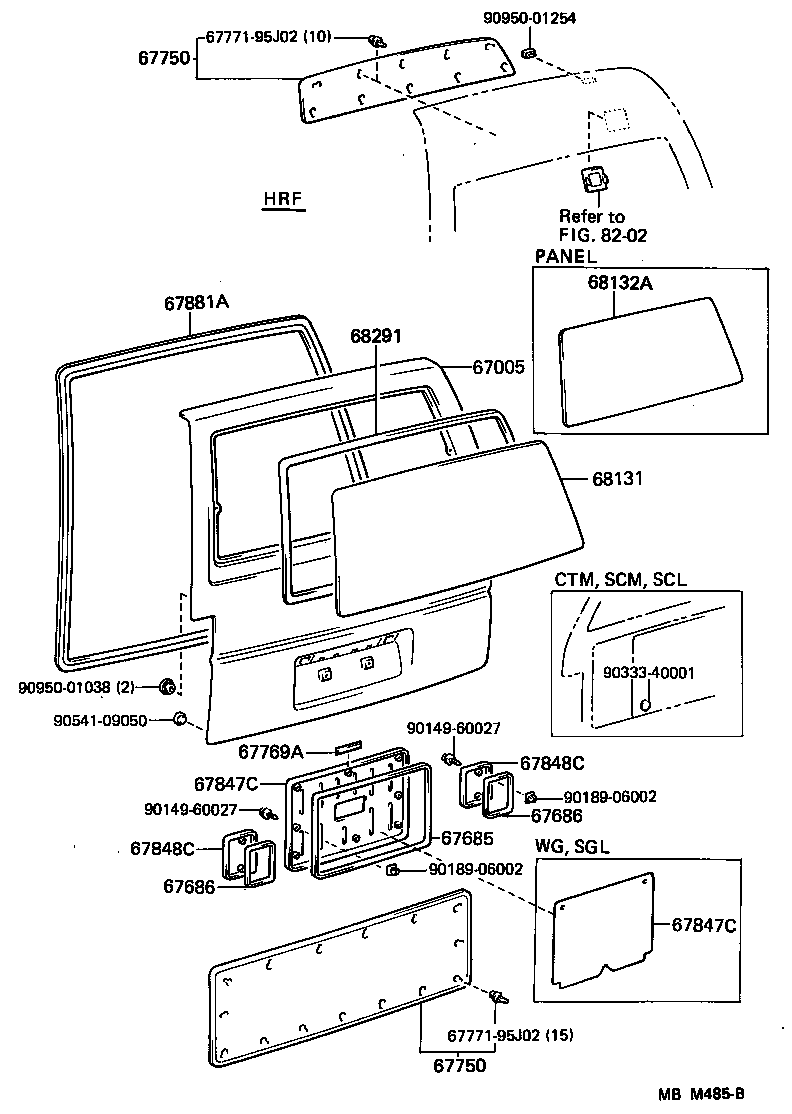

Click highlighted areas on diagram

diagram 67005 67685 67686 67686 67750 67750 67769A 6777195J02 6777195J02 67847C 67847C 67848C 67848C 67881A 68131 68132A 68291 8202 9014960027 9014960027 9018906002 9018906002 9033340001 9054109050 9095001038 9095001254
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95N02

LH5#,6#,YH50,52,6#..(COM,V)..SRF..(CD,DX)

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵｶﾞ);ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) & ｱﾘ(ﾜｲﾊﾟ)

 1
67005-95N01

LH5#,6#,YH50,52,6#..(COM,V)..SRF..(CD,DX)

 1
67005-95N02

LH5#,6#..(COM,V)..SRF..(CD,DX)

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) & ｱﾘ(ﾜｲﾊﾟ)

 1
67005-95N02

YH50,52,6#..SRF..VSG..(CD,DX)

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) & ｱﾘ(ﾜｲﾊﾟ);ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳOR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵｶﾞ)

 1
67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1
67685-95J00

LH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67526-95A00

LH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67526-95A00

LH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
67769A - PLATE, BACK DOOR SERVICE HOLE
67769-95J01

LH66..GL..05S;LH66..V5D..DX;LH66..DX..08S;LH56,71,YH50,52,62,71;LH51,61,YH51,61..(COM,V)..(CD,DX,GL)

ｶﾝﾚｲﾁ ｼﾖｳ

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J04

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J04

LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(COM,V)..(CD,DX,GL)..(03S,05S,06S,09S,15S)

 1
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-95J00

LH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-95J00

LH66..DX..08S;LH51,61,YH51,61..(COM,V)..(CD,DX,GL);LH56,66,71,YH50,52,62,71..(CD,DX,GL)..(03S,05S,06S,09S,10S,15S)

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-95J08

LH5#,6#,YH50,51,52,6#..SRF..(CD,DX)

 1
68131 - GLASS, BACK DOOR
68131-95J01

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

*EHT,厚さ=4.0

 1
68131-95J00

LH5#,6#,71,YH50,51,52,6#,71..CD,DX

*TEM,厚さ=4.0

 1
68131-95J01

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

*EHT,厚さ=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95J00

LH5#,6#,71,YH50,52,6#,71..(COM,V)..(CD,DX)

 1
Common parts
67771-95J02
90149-60027
90189-06002
90333-40001
90541-09050
90950-01038
90950-01254
Linked diagrams
8202
