LH66V-MDE (1986)

Toyota Hiace Van,Wagon

Production Aug 1986 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

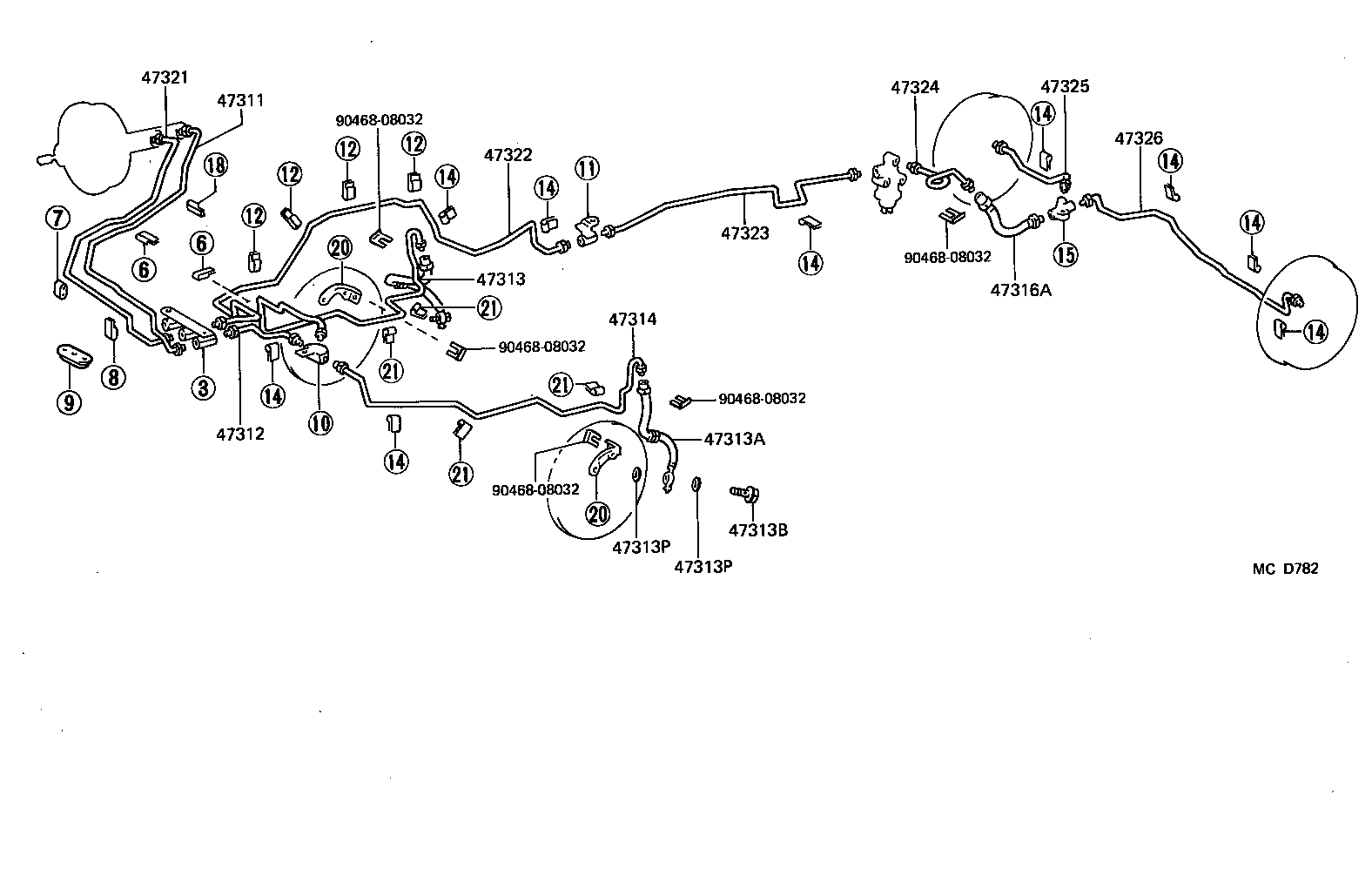

ILLUST NO. 1 OF 3(8608- )LH56,66

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47313B 47313P 47313P 47314 47316A 47321 47322 47323 47324 47325 47326 9046808032 9046808032 9046808032 9046808032 9046808032
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26280

LH56,66

 1
47311-26190

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26230

LH56,66

 1
47312-26170

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26090

LH5#,6#,7#,YH5#,6#,71

 1
47313-26120

LH56,66

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02502

LH56,66

 2
90947-02436

LH5#,6#,7#,YH5#,6#,71

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

LH56,66

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH56,66

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

LH56,66

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-26120

LH56,66

 1
47314-26080

LH5#,6#,7#,YH5#,6#,71

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33205

LH50,51,60,61,7#,YH5#,6#,71..ST

 1
96940-33505

LH56,66

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26190

LH56,66

 1
47321-26100

LH5#,6#,7#,YH50,52,6#,71..COM,V

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26090

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
47322-26150

LH56,66

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26210

LH6#,YH6#..(COM,V)..ST

W/LSPV

 1
47323-26200

LH6#,70,YH6#..(COM,V)..DLX..ST

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-26090

LH5#,6#,YH50,52,6#..(COM,V)..(DLX,STD)..ST

 1
47324-26100

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

W/LSPV

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26140

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
47325-26220

LH56,66

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26120

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
47326-26210

LH56,66

 1
Common parts
90468-08032
