LH61VH-QDTFE (1987)
Toyota Hiace Van,Wagon

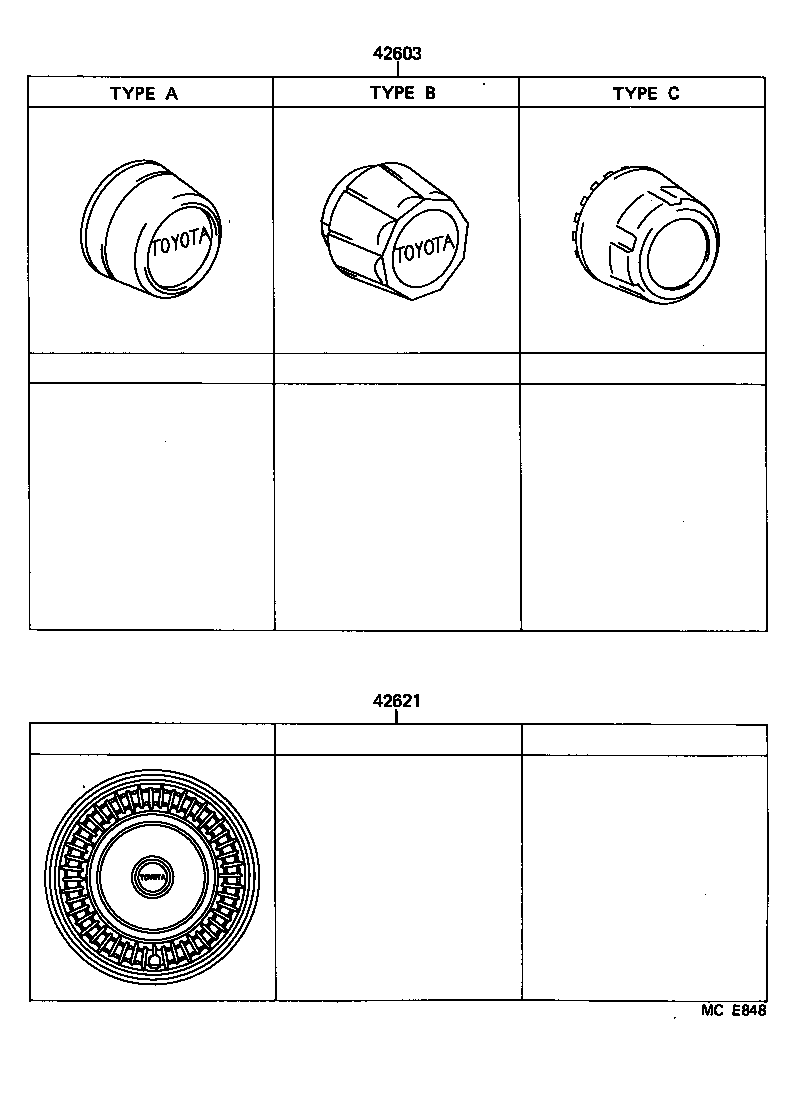

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-26070 |
LH61,YH61..WT *STE |
2 | ||

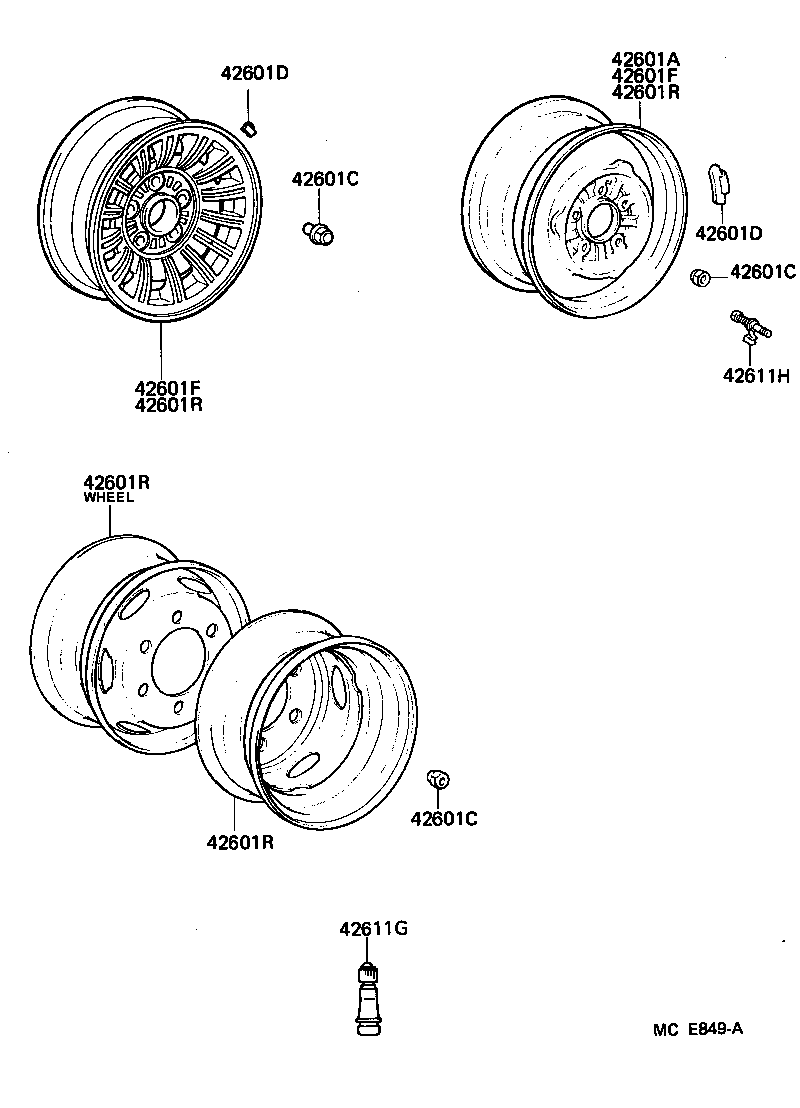

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
1 | ||
| 42601-2625003 |
LH61..03S..WT;LH51,61,71,YH50,51,61,71..(COM,V)..(DX,GL) 5.5J−14,#,SILVER,045 ,557 ,22H ,2S5 ,6A9 ,6H3 ,541 |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01004 |
LH61,YH61..WT RR,RH |
6 | ||
| 90942-01009 |
LH61,YH61..WT RR,LH |
6 | ||
| 90942-01059 |
LH61,YH61..WT ﾌﾛﾝﾄ |
10 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01004 |
LH61,YH61..WT RR,RH |
6 | ||
| 90942-01009 |
LH61,YH61..WT RR,LH |
6 | ||
| 90942-01059 |
LH61,YH61..WT ﾌﾛﾝﾄ |
10 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01004 |
LH61,YH61..WT RR,RH |
6 | ||
| 90942-01009 |
LH61,YH61..WT RR,LH |
6 | ||
| 90942-01059 |
LH61,YH61..WT ﾌﾛﾝﾄ |
10 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03022 |
LH51,61,71,YH50,51,52,6#,71 40G,厚さ=9.5 |
1 | ||
| 90942-03027 |
LH51,61,71,YH50,51,52,6#,71 60G,厚さ=9.5 |
1 | ||
| 90942-03020 |
LH51,61,71,YH50,51,52,6#,71 30G,厚さ=10 |
1 | ||
| 90942-03029 |
LH51,61,71,YH50,51,52,6#,71 70G,厚さ=9.5 |
1 | ||
| 90942-03017 |
LH51,61,71,YH50,51,52,6#,71 20G,厚さ=8 |
1 | ||
| 90942-03031 |
LH51,61,71,YH50,51,52,6#,71 80G,厚さ=9.5 |
1 | ||
| 90942-03041 |
LH51,61,71,YH50,51,52,6#,71 10G,厚さ=7.5 |
1 | ||
| 90942-03025 |
LH51,61,71,YH50,51,52,6#,71 50G,厚さ=9.5 |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03022 |
LH51,61,71,YH50,51,52,6#,71 40G,厚さ=9.5 |
1 | ||
| 90942-03027 |
LH51,61,71,YH50,51,52,6#,71 60G,厚さ=9.5 |
1 | ||
| 90942-03020 |
LH51,61,71,YH50,51,52,6#,71 30G,厚さ=10 |
1 | ||
| 90942-03029 |
LH51,61,71,YH50,51,52,6#,71 70G,厚さ=9.5 |
1 | ||
| 90942-03017 |
LH51,61,71,YH50,51,52,6#,71 20G,厚さ=8 |
1 | ||
| 90942-03031 |
LH51,61,71,YH50,51,52,6#,71 80G,厚さ=9.5 |
1 | ||
| 90942-03041 |
LH51,61,71,YH50,51,52,6#,71 10G,厚さ=7.5 |
1 | ||
| 90942-03025 |
LH51,61,71,YH50,51,52,6#,71 50G,厚さ=9.5 |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-2625003 |
LH61..03S..WT;LH51,61,71,YH50,51,61,71..(COM,V)..(DX,GL) 5.5J−14,#,SILVER,045 ,557 ,22H ,2S5 ,6A9 ,6H3 ,541 |
2 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-2625003 |
LH61..03S..WT;LH51,61,71,YH50,51,61,71..(COM,V)..(DX,GL) 5.5J−14,#,SILVER,045 ,557 ,22H ,2S5 ,6A9 ,6H3 ,541 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
4 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
4 | ||
| 42611H - EXTENSION, VALVE | ||||
| 90942-05015 |
LH61,YH61..WT |
2 | ||
ILLUST NO. 3 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
1 | ||
| 42601-2625003 |
LH61..03S..WT;LH51,61,71,YH50,51,61,71..(COM,V)..(DX,GL) 5.5J−14,#,SILVER,045 ,557 ,22H ,2S5 ,6A9 ,6H3 ,541 |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42601-2625003 |
LH61..03S..WT;LH51,61,71,YH50,51,61,71..(COM,V)..(DX,GL) 5.5J−14,#,SILVER,045 ,557 ,22H ,2S5 ,6A9 ,6H3 ,541 |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42601-2613201 |
LH61,YH61..WT 12X4J,#,4J-12,SILVER |
4 | ||
