LH61VH-QDTFE (1984)
Toyota Hiace Van,Wagon

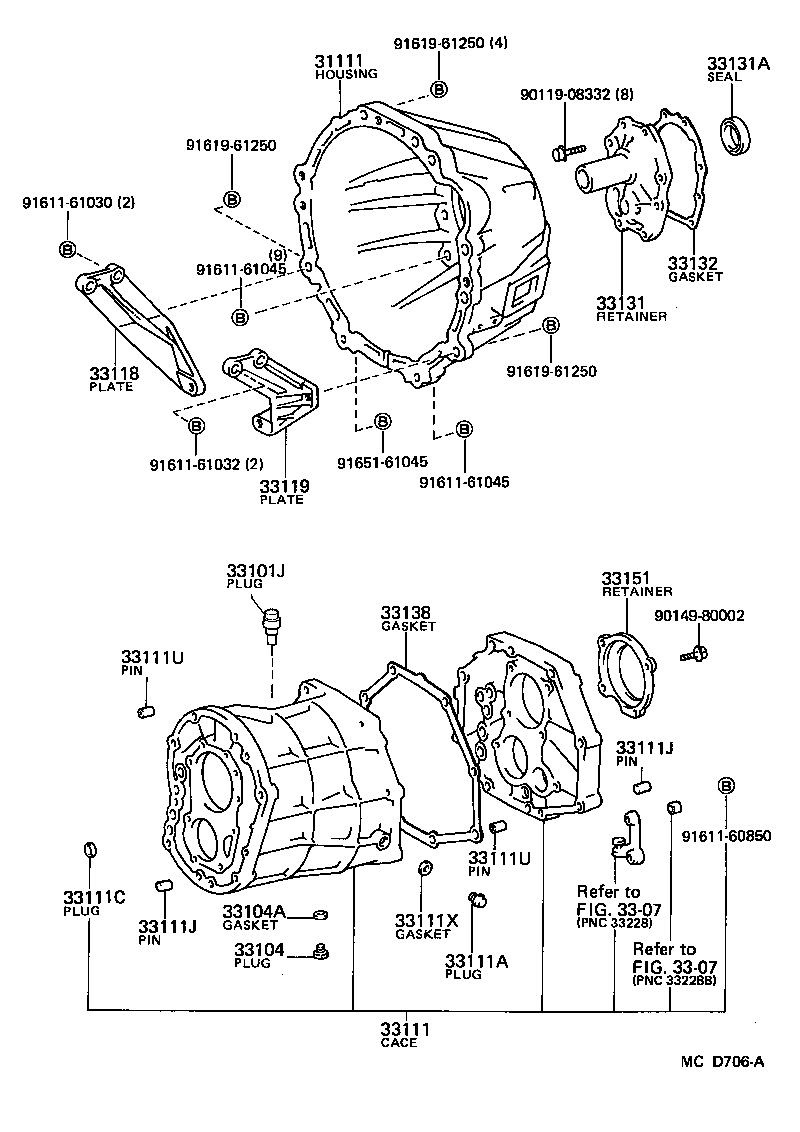

(8401-8602)LH5#,61,71..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30190 |
YH5#,6#,71..MTM |
1 | ||
| 31111-22111 |
LH50,51,61,71..MTM |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
LH51,56,6#,71,YH5#,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-26010 |
LH5#,61,71,YH52,62..MTM |
1 | ||
| 33111-26051 |
YH5#,61,71..MTM |
1 | ||
| 33101-26900 |
LH51,61,71,YH62..MTM |
1 | ||
| 33101-26901 |
YH50,61,71..V..MTM |
1 | ||
| 33101-26020 |
YH50,61,71..V..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 90341-18006 |
YH5#,61,71..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LH5#,6#,71,YH5#,6#,71..MTM 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LH51,56,6#,71,YH50,52,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LH5#,6#,7#..MTM |
1 | ||
| 33118-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119-25020 |
LH50,51,60,61,7#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33131-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33132-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151-35011 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-80002 | ||||
| 91611-61030 | ||||
| 91611-61032 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-61045 | ||||

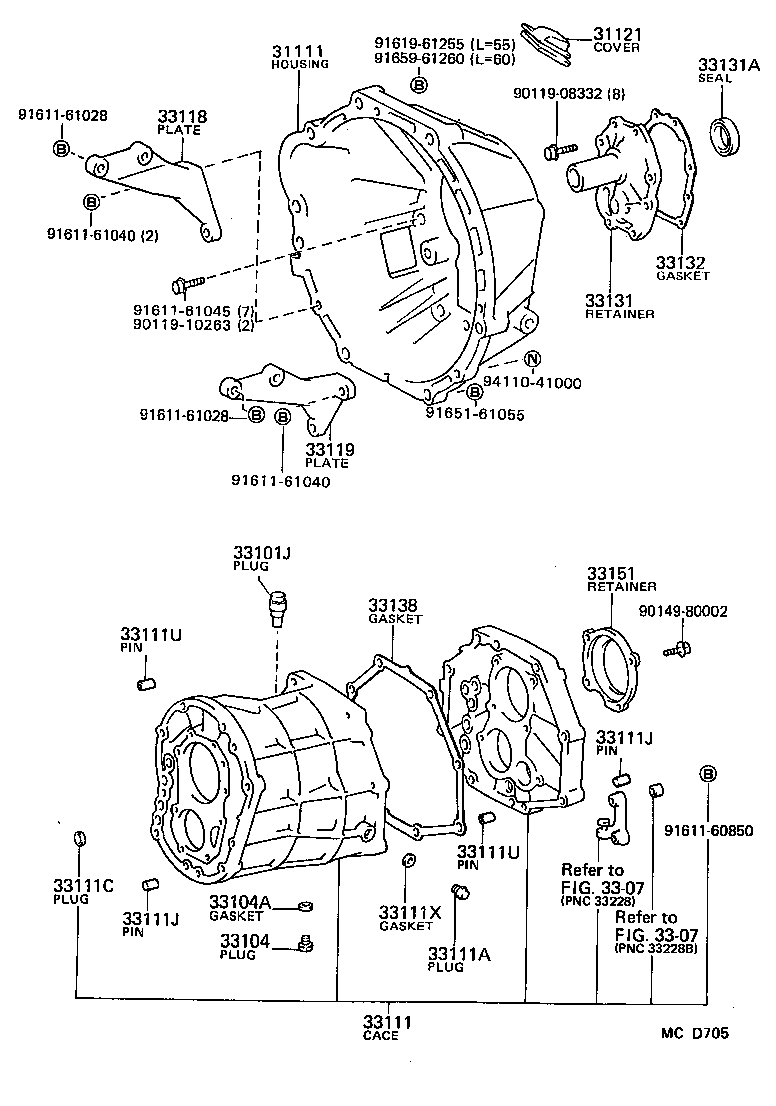

(8401-8602)YH5#,6#,71..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30190 |
YH5#,6#,71..MTM |
1 | ||
| 31111-22111 |
LH50,51,61,71..MTM |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
YH5#,6#,71..MTM |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
LH51,56,6#,71,YH5#,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-26010 |
LH5#,61,71,YH52,62..MTM |
1 | ||
| 33111-26051 |
YH5#,61,71..MTM |
1 | ||
| 33101-26900 |
LH51,61,71,YH62..MTM |
1 | ||
| 33101-26901 |
YH50,61,71..V..MTM |
1 | ||
| 33101-26020 |
YH50,61,71..V..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 90341-18006 |
YH5#,61,71..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LH5#,6#,71,YH5#,6#,71..MTM 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LH51,56,6#,71,YH50,52,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LH5#,6#,7#..MTM |
1 | ||
| 33118-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119-25020 |
LH50,51,60,61,7#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33131-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33132-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151-35011 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61045 | ||||
| 91619-61255 | ||||
| 91651-61055 | ||||
| 91659-61260 | ||||
| 94110-41000 | ||||
(8602- )YH5#,6#,71..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30190 |
YH5#,6#,71..MTM |
1 | ||
| 31111-22111 |
LH50,51,61,71..MTM |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-30040 |
YH5#,6#,71..MTM |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
LH51,56,6#,71,YH5#,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-26010 |
LH5#,61,71,YH52,62..MTM |
1 | ||
| 33111-26051 |
YH5#,61,71..MTM |
1 | ||
| 33101-26900 |
LH51,61,71,YH62..MTM |
1 | ||
| 33101-26901 |
YH50,61,71..V..MTM |
1 | ||
| 33101-26020 |
YH50,61,71..V..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 90341-18006 |
YH5#,61,71..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LH5#,6#,71,YH5#,6#,71..MTM 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LH51,56,6#,71,YH50,52,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LH5#,6#,7#..MTM |
1 | ||
| 33118-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119-25020 |
LH50,51,60,61,7#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33131-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33132-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151-35011 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 91611-60850 | ||||
| 91611-61028 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91619-61255 | ||||
| 91651-61055 | ||||
| 91659-61260 | ||||
| 94110-41000 | ||||
| Linked diagrams | ||||
| 3307 | ||||
(8602- )LH51,61,71..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30190 |
YH5#,6#,71..MTM |
1 | ||
| 31111-22111 |
LH50,51,61,71..MTM |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
LH51,56,6#,71,YH5#,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-26010 |
LH5#,61,71,YH52,62..MTM |
1 | ||
| 33111-26051 |
YH5#,61,71..MTM |
1 | ||
| 33101-26900 |
LH51,61,71,YH62..MTM |
1 | ||
| 33101-26901 |
YH50,61,71..V..MTM |
1 | ||
| 33101-26020 |
YH50,61,71..V..MTM |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
LH5#,6#,71,YH5#,6#,71..MTM |
1 | ||
| 90341-18006 |
YH5#,61,71..MTM |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
LH5#,6#,71,YH5#,6#,71..MTM 外径=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
LH5#,6#,7#,YH5#,6#,71..MTM 長さ=16,外径=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-11001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=11,外径=11,L=11,OD=11 |
2 | ||
| 90253-15001 |
LH5#,6#,71,YH5#,6#,71..MTM 長さ=14,外径=15,L=14,OD=15 |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18008 |
LH51,56,6#,71,YH50,52,61,71..MTM |
1 | ||
| 90430-18007 |
LH5#,6#,7#,YH5#,6#,71..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-25020 |
LH5#,6#,7#..MTM |
1 | ||
| 33118-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YH5#,6#,71..MTM |
1 | ||
| 33119-25020 |
LH50,51,60,61,7#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26020 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33131-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
LH50,51,60,61,7#,YH5#,6#,71..MTM |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33132-35022 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-28010 |
LH50,51,61,71,YH5#,6#,71..MTM |
1 | ||
| 33151-35011 |
LH50,60,70,YH5#,61,71..MTM |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90149-80002 | ||||
| 91611-60850 | ||||
| 91611-61030 | ||||
| 91611-61032 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-61045 | ||||
| Linked diagrams | ||||
| 3307 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
