LH61V-SDTFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

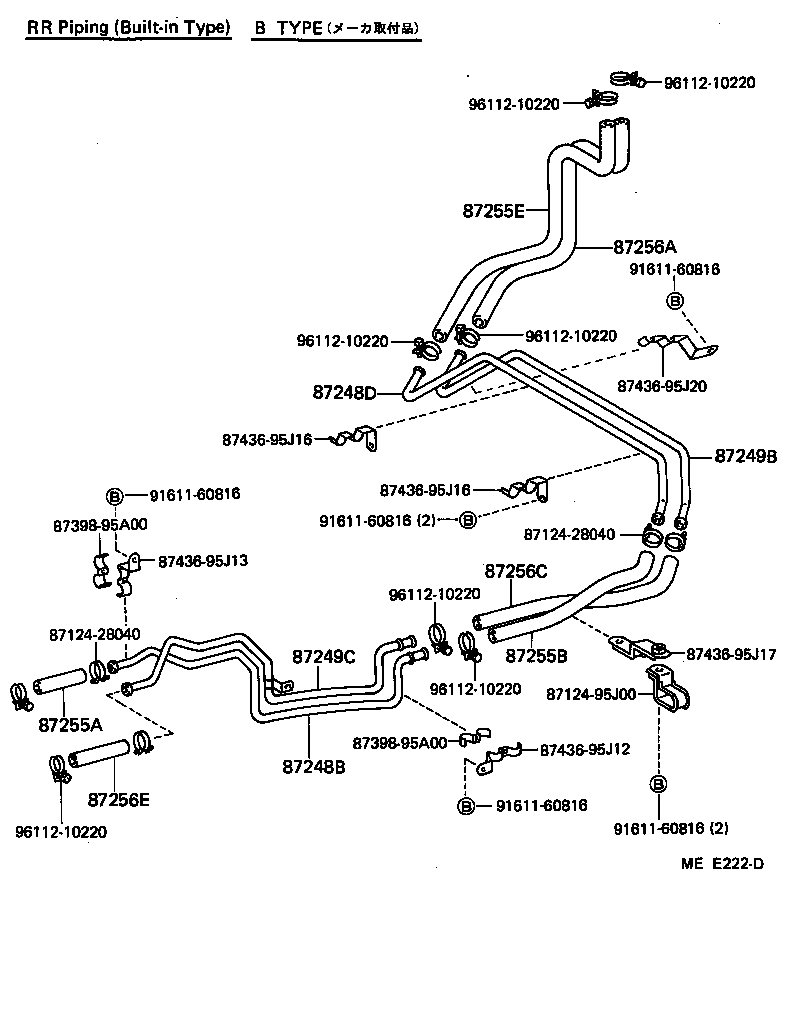

ILLUST NO. 2 OF 2(8708- )LH61..WT

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712495J00 87248B 87248D 87249B 87249C 87255A 87255B 87255E 87256A 87256C 87256E 8739895A00 8739895A00 8743695J12 8743695J13 8743695J16 8743695J16 8743695J17 8743695J20 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-95J39

LH61..06S..WT

 1
87248-95J60

YH50,51,52,6#,71..CD,DX,GL

 1
87248D - PIPE, HEATER WATER INLET, D
87248-95J40

LH61,YH61..06S..WT

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-95J41

LH61,YH61..06S..WT

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-95J38

LH61..06S..WT

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20200

LH61..06S..WT

長さ=200

 2
87255B - HOSE, REAR HEATER WATER INLET, B
99556-21000

LH61,YH61..06S..WT

長さ=1000

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20490

LH61,YH61..06S..WT

*H,L=490

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20490

LH61,YH61..06S..WT;LH6#,YH61..V5D..(05S,06S)..ST

*H,L=490

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99556-21000

LH61,YH61..06S..WT

長さ=1000

 1
Common parts
87124-28040
87124-95J00
87398-95A00
87436-95J12
87436-95J13
87436-95J16
87436-95J17
87436-95J20
91611-60816
96112-10220

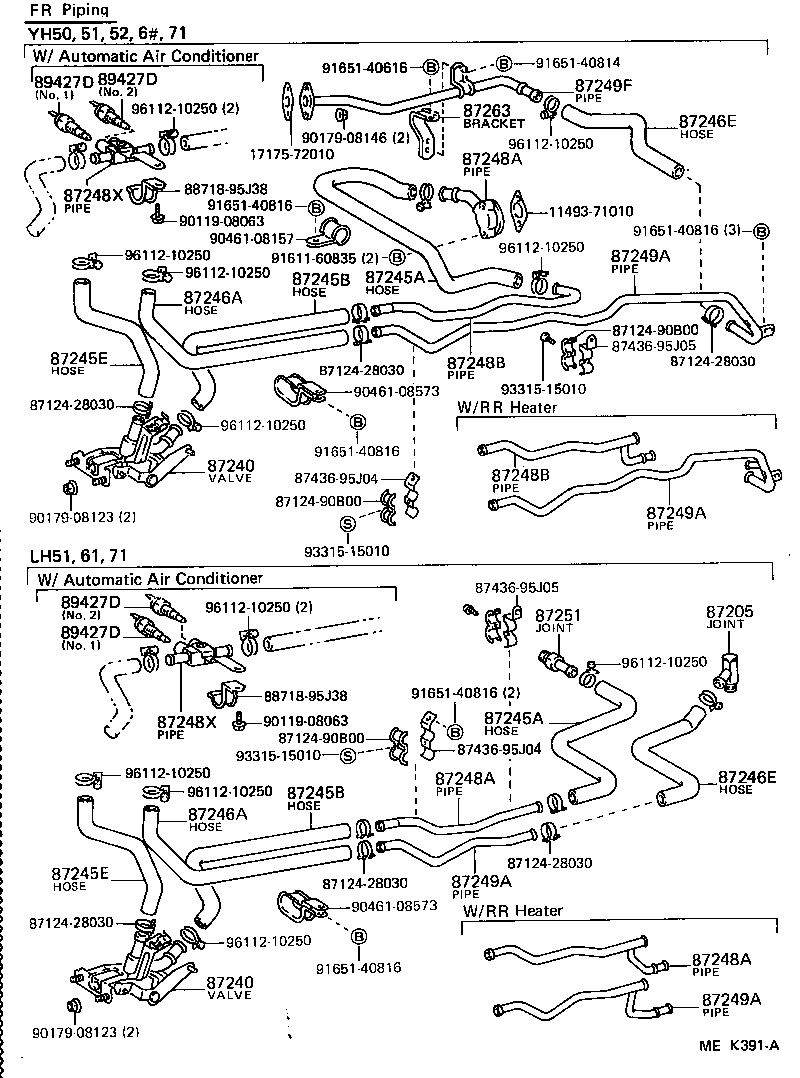

ILLUST NO. 1 OF 2(8708- )LH51,61,71,YH50,51,52,6#,71

Click highlighted areas on diagram

diagram 1149371010 1717572010 8712428030 8712428030 8712428030 8712428030 8712428030 8712428030 8712490B00 8712490B00 8712490B00 87205 87240 87240 87245A 87245A 87245B 87245B 87245E 87245E 87246A 87246A 87246E 87246E 87248A 87248A 87248A 87248B 87248B 87248X 87248X 87249A 87249A 87249A 87249A 87249F 87251 87263 8743695J04 8743695J04 8743695J05 8743695J05 8871895J38 8871895J38 89427D 89427D 89427D 89427D 9011908063 9011908063 9017908123 9017908123 9017908146 9046108157 9046108573 9046108573 9161160835 9165140616 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9331515010 9331515010 9331515010 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30230

LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)..DSL

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87240 - VALVE ASSY, HEATER WATER
87240-95J02

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J10

YH50,51,52,6#,71

 1
87245-95J40

LH51,61,71

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95J10

YH50,51,52,6#,71

 1
87245-95J40

LH51,61,71

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J27

LH51,61,71,YH50,51,52,6#,71

 1
87245B - HOSE, HEATER WATER, INLET B
87245-95J27

LH51,61,71,YH50,51,52,6#,71

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J42

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87245E - HOSE, HEATER WATER, INLET E
87245-95J42

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J26

LH51,61,71,YH50,51,52,6#,71

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-95J26

LH51,61,71,YH50,51,52,6#,71

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J13

LH51,61,71

 1
87245-95J12

YH50,51,52,6#,71

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95J13

LH51,61,71

 1
87245-95J12

YH50,51,52,6#,71

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,71

 1
87248-95J62

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J58

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,71

 1
87248-95J62

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J58

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH5#,6#,71

 1
87248-95J62

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J58

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J39

LH61..06S..WT

 1
87248-95J60

YH50,51,52,6#,71..CD,DX,GL

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95J39

LH61..06S..WT

 1
87248-95J60

YH50,51,52,6#,71..CD,DX,GL

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J61

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J59

YH50,51,52,6#,71..CD,DX,GL

 1
87248-95J57

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J61

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J59

YH50,51,52,6#,71..CD,DX,GL

 1
87248-95J57

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J61

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J59

YH50,51,52,6#,71..CD,DX,GL

 1
87248-95J57

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95J61

LH71..DX;LH51,61..CD,DX,GL,SGL

 1
87248-95J59

YH50,51,52,6#,71..CD,DX,GL

 1
87248-95J57

LH71..5H..DX;LH51..DX..09S;LH61..DX,GL,SGL;LH51..V4D..(05S,06S)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249F - PIPE, HEATER WATER OUTLET, F
87208-28021

YH5#,6#,71

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-28011

YH5#,6#,71

 1
Common parts
11493-71010
17175-72010
87124-28030
87124-90B00
87436-95J04
87436-95J05
88718-95J38
90119-08063
90179-08123
90179-08146
90461-08157
90461-08573
91611-60835
91651-40616
91651-40814
91651-40816
93315-15010
96112-10250

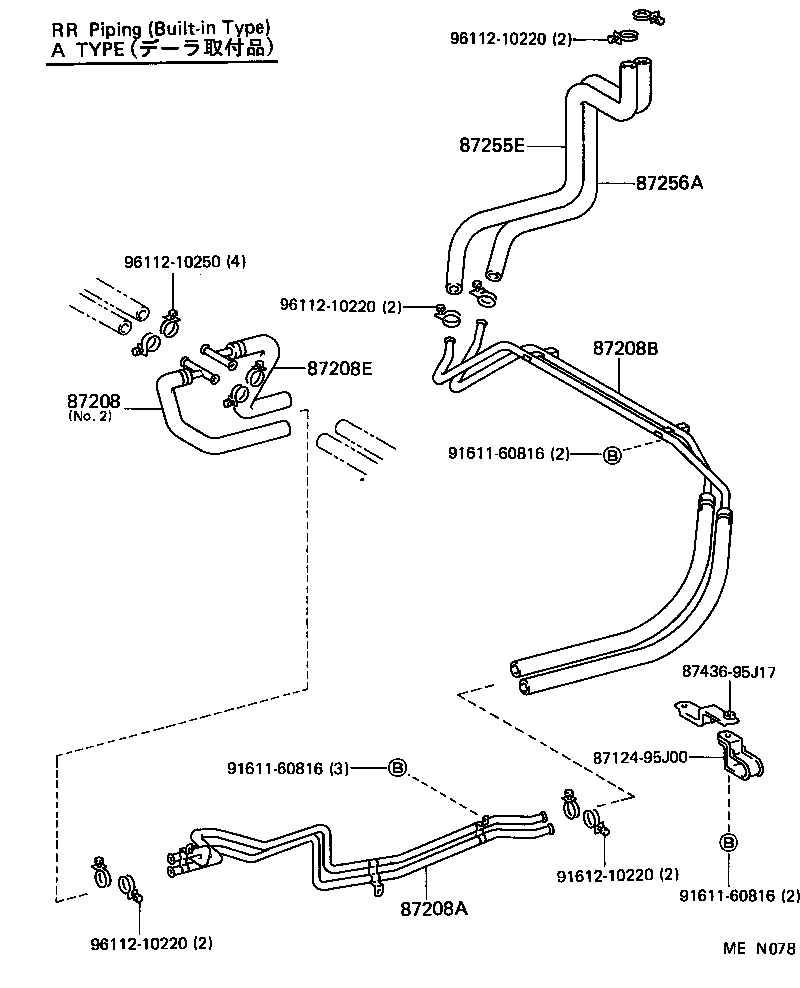

ILLUST NO. 2 OF 2(8708- )LH61..WT

Click highlighted areas on diagram

diagram 8712495J00 87208 87208A 87208B 87208E 87255E 87256A 8743695J17 9161160816 9161160816 9161160816 9161210220 9611210220 9611210220 9611210220 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87207-95J27

LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL)

NO.2

 1
87207-95J27

LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S)

NO.2

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J18

LH61..06S..WT

A TYPE

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87207-95J22

LH61..06S..WT

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87207-95J26

LH51..DX..09S;LH66..SGL..05S;LH51..V4D..(05S,06S);LH61,71..(V,WG)..(DX,GL,SGL)

 1
87207-95J26

LH51..DX..09S;LH66..SGL..05S;LH61..(V,WG)..(DX,GL,SGL);LH51,71..V4D..(05S,06S,09S)

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20490

LH61,YH61..06S..WT

*H,L=490

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20490

LH61,YH61..06S..WT;LH6#,YH61..V5D..(05S,06S)..ST

*H,L=490

 1
Common parts
87124-95J00
87436-95J17
91611-60816
91612-10220
96112-10220
96112-10250
