LH61V-SDTFE (1987)
Toyota Hiace Van,Wagon

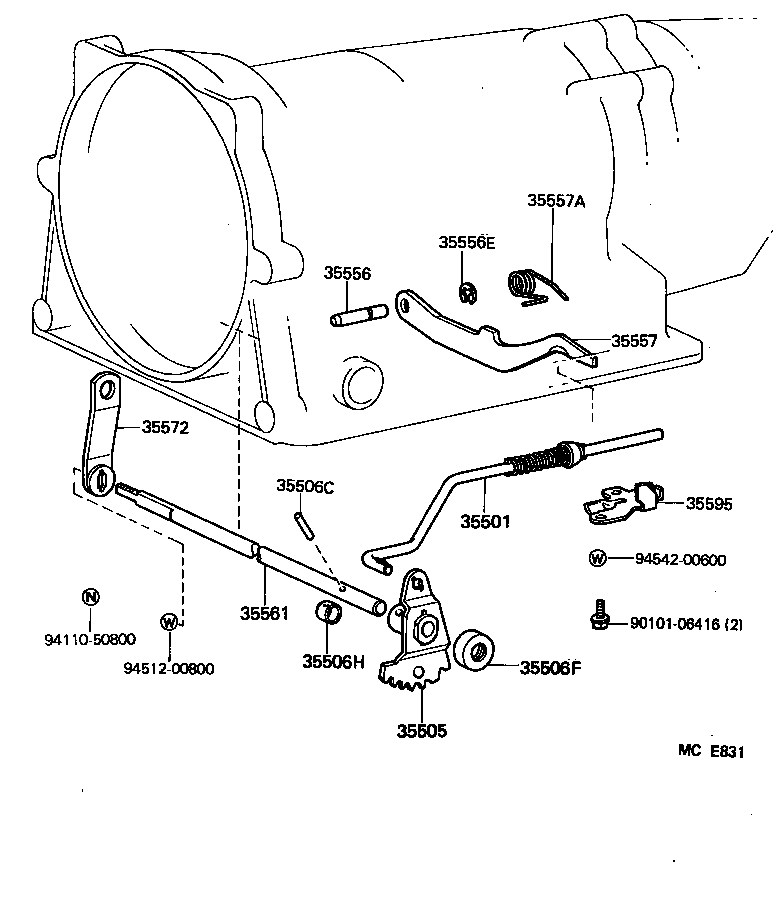

ILLUST NO. 1 OF 2(8708- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-26020 |
LH51,61,YH51,61..ATM |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-22040 |
LH51,61,YH51,61..ATM |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
LH51,61,YH51,61..ATM |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-11001 |
LH51,61,YH51,61..ATM |
2 | ||
| 35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90560-20003 |
LH51,61,YH51,61..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-26010 |
LH51,61,YH51,61..ATM |
1 | ||
| 35556E - RING, E (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90523-08021 |
LH51,61,YH51,61..ATM |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-26010 |
LH51,61,YH51,61..ATM |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-21001 |
LH51,61,YH51,61..ATM |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-40010 |
LH51,61,YH51,61..ATM |
1 | ||
| 35572 - LEVER, TRANSMISSION CONTROL SHAFT, RH | ||||
| 35572-26010 |
LH51,61,YH51,61..ATM |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-40010 |
LH51,61,YH51,61..ATM |
1 | ||
| Common parts | ||||
| 90101-06416 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94542-00600 | ||||

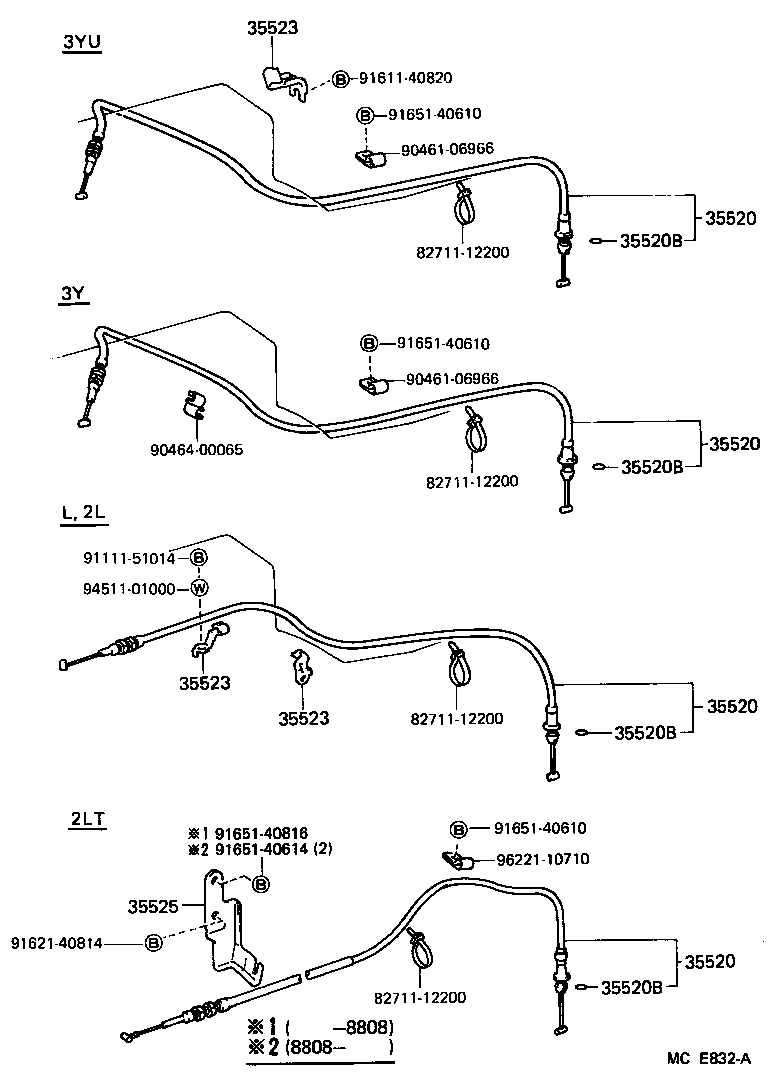

ILLUST NO. 2 OF 2(8708- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30022 |
LH51,61..ATM..DSL |
1 | ||
| 35520-30030 |
YH51,61..ATM |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30022 |
LH51,61..ATM..DSL |
1 | ||
| 35520-30030 |
YH51,61..ATM |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30022 |
LH51,61..ATM..DSL |
1 | ||
| 35520-30030 |
YH51,61..ATM |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-30022 |
LH51,61..ATM..DSL |
1 | ||
| 35520-30030 |
YH51,61..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
LH51,61,YH51,61..ATM |
1 | ||
| 90301-09012 |
LH51,61,YH51,61..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
LH51,61,YH51,61..ATM |
1 | ||
| 90301-09012 |
LH51,61,YH51,61..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
LH51,61,YH51,61..ATM |
1 | ||
| 90301-09012 |
LH51,61,YH51,61..ATM |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
LH51,61,YH51,61..ATM |
1 | ||
| 90301-09012 |
LH51,61,YH51,61..ATM |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-26010 |
LH51,61..ATM..DSL HOUSING SIDE |
1 | ||
| 35523-30010 |
LH51,61..ATM..DSL INTAKE MANIFOLD |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-26010 |
LH51,61..ATM..DSL HOUSING SIDE |
1 | ||
| 35523-30010 |
LH51,61..ATM..DSL INTAKE MANIFOLD |
1 | ||
| 35523 - CLAMP, THROTTLE CABLE | ||||
| 35523-26010 |
LH51,61..ATM..DSL HOUSING SIDE |
1 | ||
| 35523-30010 |
LH51,61..ATM..DSL INTAKE MANIFOLD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90461-06966 | ||||
| 90464-00065 | ||||
| 91111-51014 | ||||
| 91611-40820 | ||||
| 91621-40814 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 94511-01000 | ||||
| 96221-10710 | ||||
