LH61V-SDTFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ATM..CBR,DSL

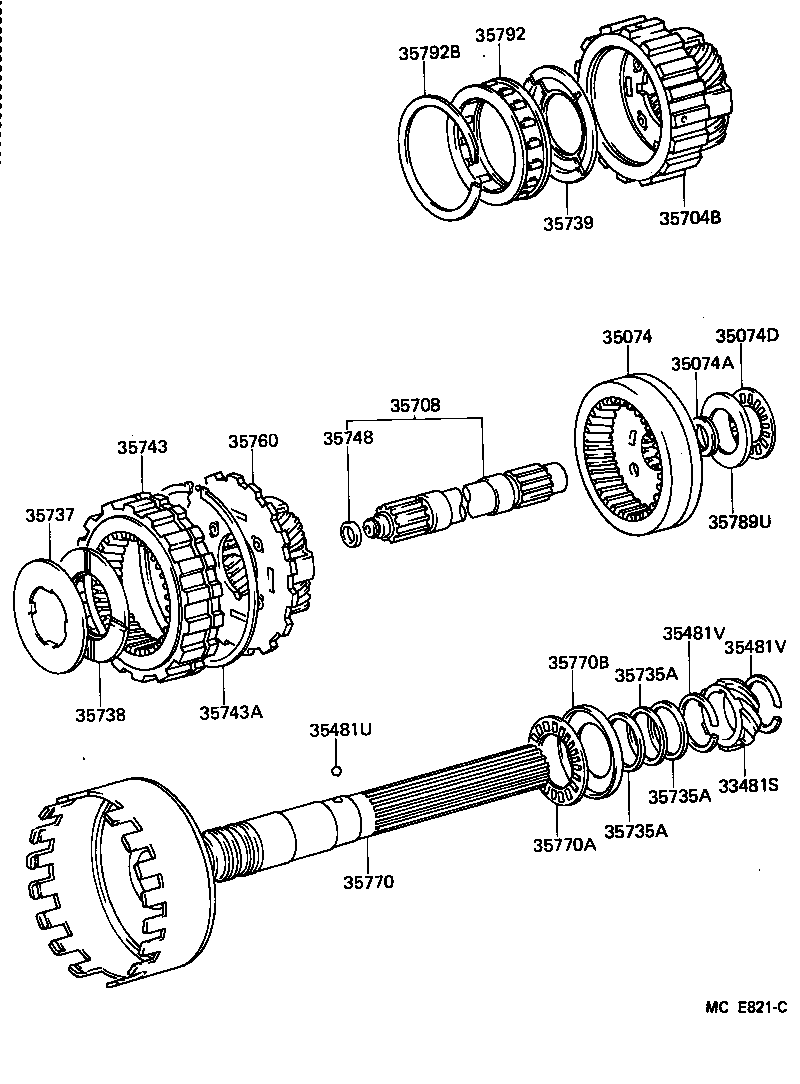

Click highlighted areas on diagram

A44DL,A45DL

diagram 33481S 35074 35074A 35074D 35481U 35481V 35481V 35704B 35708 35735A 35735A 35735A 35737 35738 35739 35743 35743A 35748 35760 35770 35770A 35770B 35789U 35792 35792B
Part # Description Qty Price
33481S - GEAR, SPEEDOMETER DRIVE (ATM)
33481-25021

LH51..ATM..TD;YH51,61..VSG..ATM

歯数=5,ﾏｰｸ 5X17−19

 1
33481-25011

LH51,61..ATM..DSL

歯数=4

 1
35074 - GEAR SUB-ASSY, REAR PLANETARY RING
35074-30030

LH51,61,YH51,61..ATM

 1
35074A - RING, SET (FOR REAR PLANETARY RING GEAR)
90522-20037

LH51,61,YH51,61..ATM

 1
35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR)
90374-28014

LH51,61,YH51,61..ATM

 1
35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM)
90360-06004

LH51,61,YH51,61..ATM

 1
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

LH51,61,YH51,61..ATM..(CBR,DSL)

厚さ=1.50,外径=33.8

 2
35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR)
90520-28009

LH51,61,YH51,61..ATM..(CBR,DSL)

厚さ=1.50,外径=33.8

 2
35704B - GEAR SUB-ASSY, FRONT PLANETARY
35704-30040

LH51,61,YH51,61..ATM

 1
35708 - SHAFT SUB-ASSY, INTERMEDIATE
35708-30041

LH51,61,YH51,61..ATM

 1
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LH51,61,YH51,61..ATM..(CBR,DSL)

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LH51,61,YH51,61..ATM..(CBR,DSL)

 3
35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL
35735-22010

LH51,61,YH51,61..ATM..(CBR,DSL)

 3
35737 - WASHER, PLANETARY CARRIER THRUST
35737-22010

LH51,61,YH51,61..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-30030

LH51,61,YH51,61..ATM

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-30020

LH51,61,YH51,61..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-30010

LH51,61,YH51,61..ATM

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99121

LH51,61,YH51,61..ATM

 1
35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL
35748-30010

LH51,61,YH51,61..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-30040

LH51,61,YH51,61..ATM

 1
35770 - SHAFT ASSY, OUTPUT
35770-30010

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
35770A - BEARING, THRUST (FOR OUTPUT SHAFT)
90374-38013

LH51,61,YH51,61..ATM

 1
35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT)
35789-22040

LH51,61,YH51,61..ATM

 1
35789U - RACE, THRUST BEARING
35789-22020

LH51,61,YH51,61..ATM

 1
35792 - CLUTCH, 1 WAY, NO.2
35792-30030

LH51,61,YH51,61..ATM

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-79148

LH51,61,YH51,61..ATM

 1
