LH61V-SDE (1987)
Toyota Hiace Van,Wagon

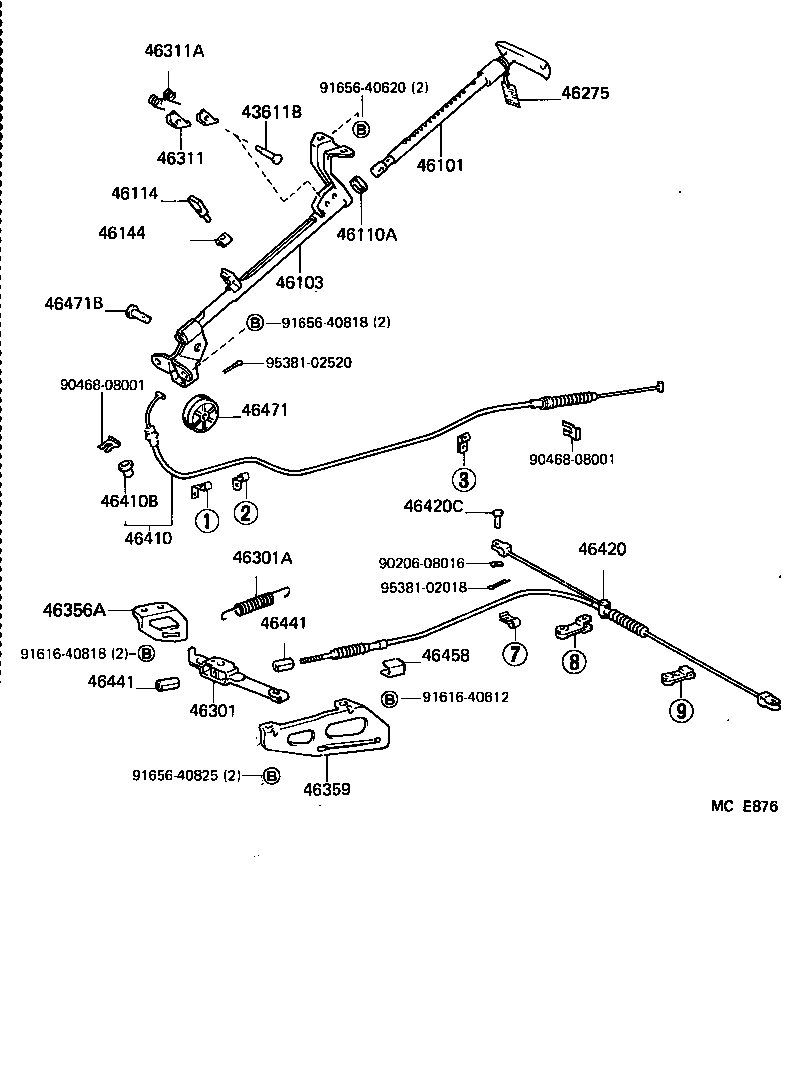

ILLUST NO. 1 OF 2(8708- )LH61,71,YH61..ST ; (8708- )LH51,YH50,51,52,62,71..COM,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43611B - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46120-26090 |
LH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26081 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-26021 |
LH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-20007 |
LH61,71,YH61;LH51,YH50,51,52,62,71..COM,V |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26040 |
LH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V |
1 | ||
| 46359 - GUIDE, PARKING BRAKE INTERMEDIATE LEVER | ||||
| 46359-26030 |
LH61,71,YH61..ST;LH51,YH50,51,52,62,71..COM,V |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26210 |
LH51,61,71,YH50,51,52,6#,71..ST |
1 | ||
| 46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90480-20004 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26091 |
LH61,YH6#..V..ST |
1 | ||
| 46420-26082 |
LH51,61,YH50,51,52..SRF..(03S,05S,06S)..ST |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-30041 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90206-08016 | ||||
| 90468-08001 | ||||
| 91616-40612 | ||||
| 91616-40818 | ||||
| 91656-40620 | ||||
| 91656-40818 | ||||
| 91656-40825 | ||||
| 95381-02018 | ||||
| 95381-02520 | ||||
ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
4 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
4 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
4 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
4 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-35020 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| 46420E - GROMMET(FOR PARKING BRAKE CABLE CLAMP) | ||||
| 90480-21518 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 46459 - GUIDE, CABLE | ||||
| 46459-30010 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
1 | ||
| 46469 - LEVER, CABLE GUIDE SUPPORT | ||||
| 46469-30020 |
LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S) |
2 | ||
| Common parts | ||||
| 90109-08022 | ||||
| 90179-08146 | ||||
| 90461-08028 | ||||
| 90461-08407 | ||||
| 90461-12159 | ||||
| 90461-12269 | ||||
| 90462-10069 | ||||
| 90462-10070 | ||||
| 90949-01062 | ||||
| 90949-01344 | ||||
| 90949-01345 | ||||
| 91611-40816 | ||||
| 91611-60816 | ||||
| 91616-40818 | ||||
| 91651-40816 | ||||
| 91651-60616 | ||||
| 94110-40600 | ||||
