LH61V-QNFE (1984)

Toyota Hiace Van,Wagon

Production Jan 1984 - Aug 1985
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8708)YH51..MRF..4FC..08S ; (8212- )YH51..MRF..07S,08S ; (8212- )YH51,61

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 8712495J12 8712495J12 87240A 87248C 87248D 87249B 87249B 87249D 87255A 87255B 87255C 87255E 87255E 87256A 87256A 87256C 87256E 8739895A00 8739895J01 8743695J07 8743695J07 8743695J22 89427D 9046022073 9046108258 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH61,YH61..V5D..06S

*H,L=130

 1
99556-20130

LH61,YH61..V5D..06S

*H,L=130

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=250

 1
99556-20250

LH61,YH61..V5D..06S..ST

*H,L=250

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=190

 1
99556-20190

LH61,YH61..V5D..06S..ST

*H,L=190

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=210

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=130

 1
99556-20140

LH61,YH61..V5D..06S..ST

*H,L=140

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=140

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20130

LH61..V5D..06S

*H,L=130

 1
99552-20200

LH61..V5D..06S

*H,L=130

 1
Common parts
87124-28040
87124-95J12
87398-95A00
87398-95J01
87436-95J07
87436-95J22
90460-22073
90461-08258
91611-60816
96112-10220

(8401- )LH61..V5D..ST

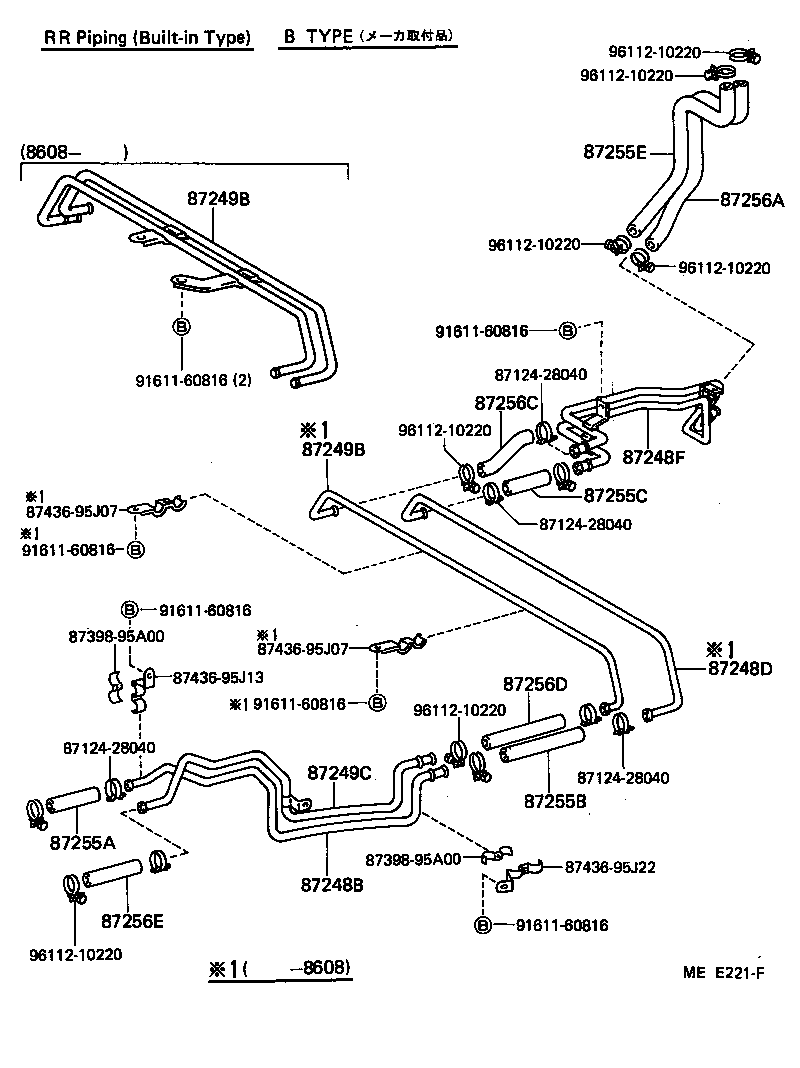

Click highlighted areas on diagram

diagram 8712428040 8712428040 8712428040 8712428040 87248B 87248D 87248F 87249B 87249B 87249C 87255A 87255B 87255C 87255E 87256A 87256C 87256D 87256E 8739895A00 8739895A00 8743695J07 8743695J07 8743695J13 8743695J22 9161160816 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-95J12

YH5#,6#,71..CTD,DLX,GL,STD

 1
87248-95J20

LH61..V5D..06S..ST

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-95J19

LH61..V5D..06S..ST

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99552-20200

LH61,YH61..V5D..06S

*H,L=130

 1
99556-20130

LH61,YH61..V5D..06S

*H,L=130

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=250

 1
99556-20250

LH61,YH61..V5D..06S..ST

*H,L=250

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=190

 1
99556-20190

LH61,YH61..V5D..06S..ST

*H,L=190

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=210

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=130

 1
99556-20140

LH61,YH61..V5D..06S..ST

*H,L=140

 1
99552-20200

LH61,YH61..V5D..06S..ST

*H,L=140

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20250

LH61,YH61..V5D..06S..ST

*H,L=250

 1
99552-20300

LH61,YH61..V5D..06S..ST

*H,L=250

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
99556-20130

LH61..V5D..06S

*H,L=130

 1
99552-20200

LH61..V5D..06S

*H,L=130

 1
Common parts
87124-28040
87398-95A00
87436-95J07
87436-95J13
87436-95J22
91611-60816
96112-10220

(8401-8508)LH61..V5D..ST

Click highlighted areas on diagram

diagram 87208 87208A 87208B 87208C 87208C 87208D 87208E 87255E 87256A 8743695J19 9161160816 9161160816 9161160816 9161160816 9161160816 9611210220 9611210220 9611210220 9611210220 9611210220 9611210220 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87207-95J27

LH61..V5D..06S

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-95J15

LH61..V5D..06S..ST

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87207-95J23

LH61,YH61..V5D..06S..ST

 1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87207-95J24

LH61,YH61..V5D..06S..ST

 2
87208C - PIPE SUB-ASSY, HEATER WATER, C
87207-95J24

LH61,YH61..V5D..06S..ST

 2
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-95J19

LH61,YH61..V5D..06S..ST

 1
87208E - PIPE SUB-ASSY, HEATER WATER, E
87207-95J26

LH61..V5D..06S

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=400

 1
99556-20400

LH61,YH61..V5D..06S..ST

*H,L=400

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20600

YH52,62;LH51,61,YH50,61..06S,09S

L=600,B TYPE

 1
99552-20500

LH61,YH61..V5D..06S..ST

*H,L=460

 1
99556-20460

LH61,YH61..V5D..06S..ST

*H,L=460

 1
Common parts
87436-95J19
91611-60816
96112-10220
96112-10250
