LH61V-QDTFE (1987)
Toyota Hiace Van,Wagon

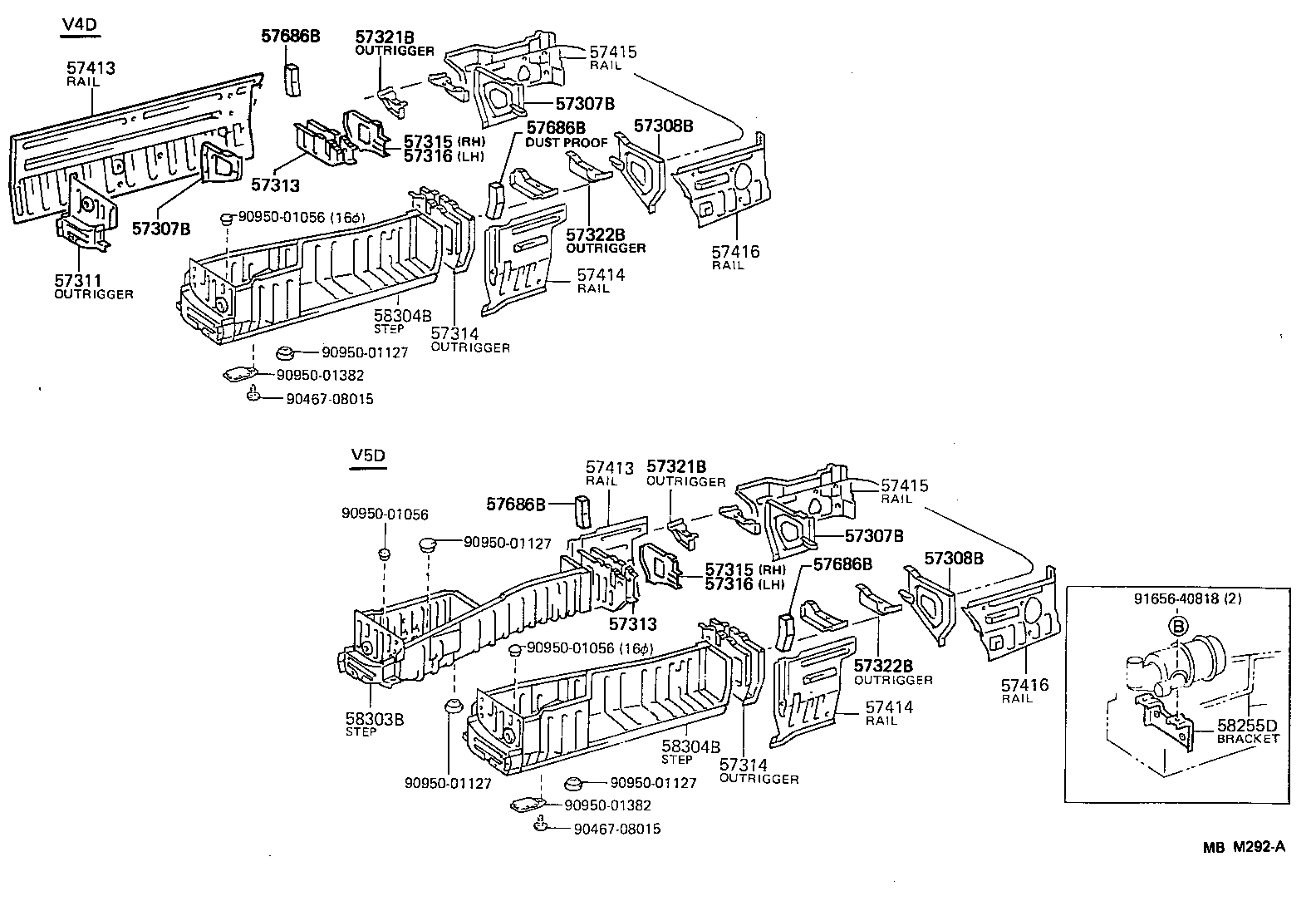

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57078 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER | ||||
| 57078-95J04 |
LH61,YH61..WT;LH51,YH51,57..WG |
1 | ||
| 57079 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER | ||||
| 57079-95J01 |
LH61,YH61..WT |
1 | ||
| 57361A - COVER, NO.2 OUTERIGGER HOLE | ||||
| 57361-95J00 |
LH61..V5D..WT;YH50,51,61..V5D |
2 | ||
| 57361-95J00 |
LH5#,6#,YH50,51,61..V5D |
2 | ||
| 57362A - PACKING, NO.2 OUTRIGGER HOLE COVER | ||||
| 57362-95J00 |
LH61..V5D..WT;YH50,51,61..V5D |
2 | ||
| 57362-95J00 |
LH5#,6#,YH50,51,61..V5D |
2 | ||
| 57419A - PLATE, REAR SEAT LOCK | ||||
| 57419-95J01 |
LH51,61,YH50,51,61..(DX,GL)..(05S,06S) |
1 | ||
| 58032 - PANEL SUB-ASSY, HEADER | ||||
| 58032-95N12 |
LH61..V5D..WT *** |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J03 |
LH61..WT |
1 | ||
| 58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE | ||||
| 58207-95J03 |
LH61..WT |
1 | ||
| 58209B - COVER SUB-ASSY, BATTERY SERVICE HOLE | ||||
| 58209-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58315-95J26 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58315-95J25 |
LH61,YH61..V5D..WT |
1 | ||
| 58315-95J26 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58315-95J26 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58315-95J25 |
LH61,YH61..V5D..WT |
1 | ||
| 58315-95J26 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 58444A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58444-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58445B - PAD, BATTERY SERVICE HOLE COVER | ||||
| 58445-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58451B - COVER, AIR CLEANER SERVICE HOLE | ||||
| 58405-95J00 |
LH61,YH61..WT |
1 | ||
| 58457D - PACKING, AIR CLEANER SERVICE HOLE COVER | ||||
| 58457-95J00 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J01 |
LH61,YH61..WT |
1 | ||
| 58465B - PACKING, TRANSMISSION SERVICE HOLE COVER | ||||
| 58465-95J01 |
LH61,YH61..WT |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J01 |
LH61,YH61..WT |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J01 |
LH61,YH61..WT |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J01 |
LH61,YH61..WT |
1 | ||
| 58466E - SILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1 | ||||
| 58327-95J01 |
LH61,YH61..WT |
1 | ||
| 58475B - PACKING, INSPECTION HOLE COVER | ||||
| 58475-95J00 |
LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL |
1 | ||
| 59209A - COVER SUB-ASSY, INSPECTION HOLE | ||||
| 59209-95J00 |
LH66..05S;LH51..MRF..TD;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CBR,DSL |
1 | ||
| 66311 - HOOK, ROPE | ||||
| 66311-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,61,71..VSG..(DX,GL)..(05S,06S,09S) |
4 | ||
| Common parts | ||||
| 90119-10049 | ||||
| 90119-10099 | ||||
| 90122-06010 | ||||
| 90468-04079 | ||||
| 90950-01004 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01038 | ||||
| 90950-01056 | ||||
| 90950-01126 | ||||
| 90950-01181 | ||||
| 90950-01234 | ||||
| 90950-01383 | ||||
| 91631-40618 | ||||
| 91661-40816 | ||||
| 93240-16012 | ||||
| 93540-44012 | ||||
ILLUST NO. 2 OF 2(8708- )WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-95J09 |
LH61,YH61..V5D..WT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-95J09 |
LH61,YH61..V5D..WT |
1 | ||
| 57307B - OUTRIGGER SUB-ASSY, NO.4 RH | ||||
| 57307-95J09 |
LH61,YH61..V5D..WT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J08 |
LH61,YH61..WT |
1 | ||
| 57308B - OUTRIGGER SUB-ASSY, NO.4 LH | ||||
| 57308-95J08 |
LH61,YH61..WT |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57303-95J25 |
LH61,YH61..V5D..WT |
1 | ||
| 57313 - OUTRIGGER, NO.2 RH | ||||
| 57303-95J25 |
LH61,YH61..V5D..WT |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J34 |
LH61,YH61..WT |
1 | ||
| 57314 - OUTRIGGER, NO.2 LH | ||||
| 57304-95J34 |
LH61,YH61..WT |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-95J01 |
LH61,YH61..WT |
1 | ||
| 57315 - OUTRIGGER, NO.3 RH | ||||
| 57315-95J01 |
LH61,YH61..WT |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-95J01 |
LH61,YH61..WT |
1 | ||
| 57316 - OUTRIGGER, NO.3 LH | ||||
| 57316-95J01 |
LH61,YH61..WT |
1 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57321-95J00 |
LH61,YH61..WT |
2 | ||
| 57321B - OUTRIGGER, NO.5, RH | ||||
| 57321-95J00 |
LH61,YH61..WT |
2 | ||
| 57322B - OUTRIGGER, NO.5, LH | ||||
| 57322-95J00 |
LH61,YH61..WT |
2 | ||
| 57322B - OUTRIGGER, NO.5, LH | ||||
| 57322-95J00 |
LH61,YH61..WT |
2 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95J49 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 57413-95J04 |
LH61,YH61..V5D..WT |
1 | ||
| 57413-95J49 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 57413 - RAIL, FLOOR SIDE, CENTER RH | ||||
| 57413-95J49 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 57413-95J04 |
LH61,YH61..V5D..WT |
1 | ||
| 57413-95J49 |
LH61,YH61..V5D..WT ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J04 |
LH61,YH61..WT |
1 | ||
| 57414 - RAIL, FLOOR SIDE, CENTER LH | ||||
| 57414-95J04 |
LH61,YH61..WT |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J02 |
LH61,YH61..WT |
1 | ||
| 57415 - RAIL, FLOOR SIDE, REAR RH | ||||
| 57047-95J02 |
LH61,YH61..WT |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J02 |
LH61,YH61..WT |
1 | ||
| 57048-95J16 |
LH61,YH61..WT |
1 | ||
| 57416 - RAIL, FLOOR SIDE, REAR LH | ||||
| 57416-95J02 |
LH61,YH61..WT |
1 | ||
| 57048-95J16 |
LH61,YH61..WT |
1 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH61..06S..WT;LH61..V5D..(05S,06S)..ST ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
8 | ||
| 57686-95J01 |
LH61,YH61..WT |
2 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH61..06S..WT;LH61..V5D..(05S,06S)..ST ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
8 | ||
| 57686-95J01 |
LH61,YH61..WT |
2 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH61..06S..WT;LH61..V5D..(05S,06S)..ST ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
8 | ||
| 57686-95J01 |
LH61,YH61..WT |
2 | ||
| 57686B - DUST PROOF, OUTRIGGER, NO.2 | ||||
| 57686-95J00 |
LH61..06S..WT;LH61..V5D..(05S,06S)..ST ｱﾘ(ﾋﾞﾙﾄｲﾝ ﾀｲﾌﾟ ﾘﾔ ﾋ-ﾀ) |
8 | ||
| 57686-95J01 |
LH61,YH61..WT |
2 | ||
| 58255D - BRACKET, AIR CLEANER, FRONT | ||||
| 58255-95J01 |
LH61,YH61..WT |
1 | ||
| 58303B - STEP SUB-ASSY, REAR FLOOR, RH | ||||
| 58303-95J08 |
LH61,YH61..V5D..WT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58303-95J00 |
LH61,YH61..V5D..WT |
1 | ||
| 58303-95J08 |
YH61..V5D..WT;LH61..V5D..5H..WT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J37 |
LH61,YH61..WT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58304-95J33 |
LH61,YH61..WT |
1 | ||
| 58304-95J37 |
LH61,YH61..WT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 58304B - STEP SUB-ASSY, REAR FLOOR, LH | ||||
| 58304-95J37 |
LH61,YH61..WT ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 58304-95J33 |
LH61,YH61..WT |
1 | ||
| 58304-95J37 |
LH61,YH61..WT ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90467-08015 | ||||
| 90950-01056 | ||||
| 90950-01127 | ||||
| 90950-01382 | ||||
| 91656-40818 | ||||
