LH61V-QBF (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2L

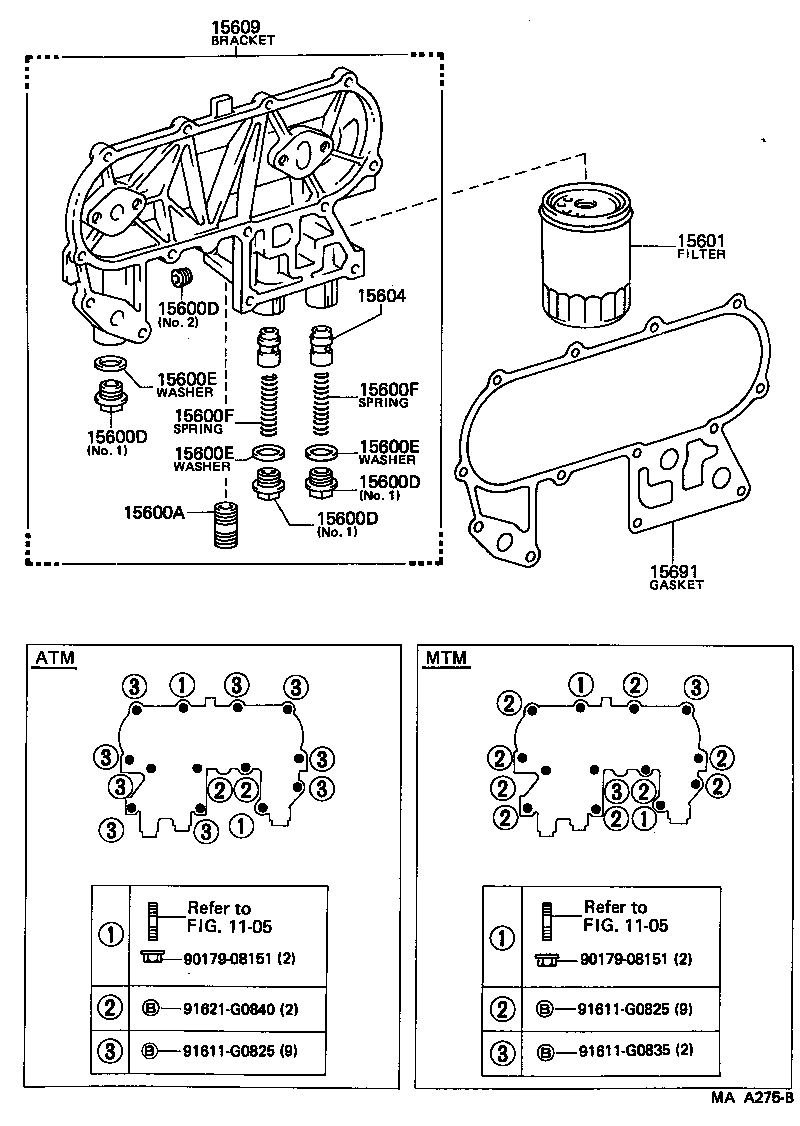

Click highlighted areas on diagram

diagram 1105 1105 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15609 15691 9017908151 9017908151 91611G0825 91611G0825 91611G0835 91621G0840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54010

2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 1
15116-54010

2L#..LH51,71..(HRF,MRF)..(4FC,5H);2L..LH5#,6#..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LH51,71..(HRF,MRF)..(4FC,5H);2L..LH5#,6#..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 3
90341-18015

2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LH51,71..(HRF,MRF)..(4FC,5H);2L..LH5#,6#..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 3
90341-18015

2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LH51,71..(HRF,MRF)..(4FC,5H);2L..LH5#,6#..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 3
90341-18015

2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LH51,71..(HRF,MRF)..(4FC,5H);2L..LH5#,6#..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 3
90341-18015

2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 3
15600E - WASHER(FOR OIL FILTER)
90430-18011

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

2L..LH66..(DX,SGL)..08S;2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S)

 1
15600-41010

2L#..LH51,71..(HRF,MRF)..(4FC,5H);2L..LH5#,6#..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54012

2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 1
15609-54013

2L..LH5#,6#,71..(COM,V)..(03S,05S,06S,09S,15S);2L..LH51,66..(4HC,5F)..(CTM,DX,SGL)..(08S,09S)

 1
15691 - GASKET, OIL FILTER
15692-54030

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
15692-54020

2L..LH66..05S;2L#..LH5#,61,71;2L..LH66..(DX,SGL)..08S

 1
Common parts
90179-08151
91611-G0825
91611-G0835
91621-G0840
Linked diagrams
1105
