LH61V-QB (1987)
Toyota Hiace Van,Wagon
(8708- )MRF,SRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

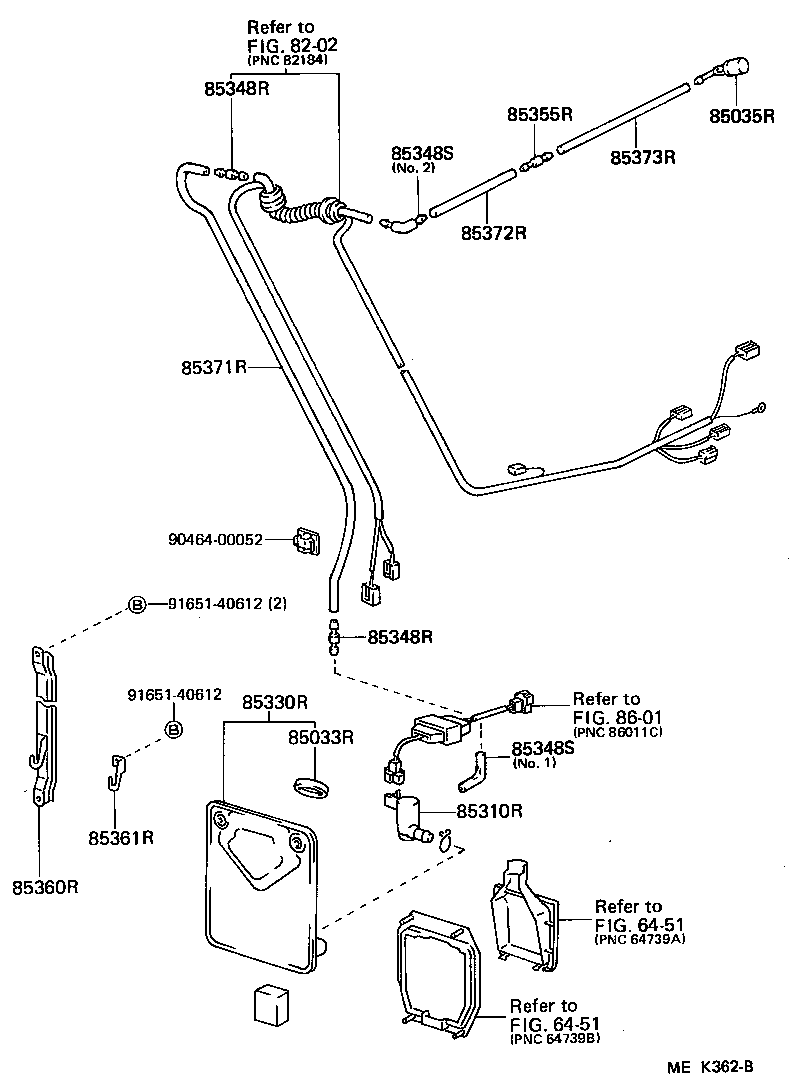

| 85033R - CAP ASSY, REAR WASHER | ||||
| 85332-20070 |
LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX) |
1 | ||
| 85332-20070 |
YH50,52,6#,71..VSG..(CD,DX) |
1 | ||
| 85332-20070 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85332-20070 |
LH66..V5D..DX;LH5#,71..V..(CD,DX);LH6#..(CD,DX)..(03S,06S,08S,09S,15S) |
1 | ||
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85035-95J00 |
LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX) |
1 | ||
| 85035-95J00 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85035-95J00 |
YH50,52,6#,71..VSG..(CD,DX) |
1 | ||
| 85035-95J00 |
LH66..V5D..DX;LH5#,71..V..(CD,DX);LH6#..(CD,DX)..(03S,06S,08S,09S,15S) |
1 | ||
| 85310R - MOTOR ASSY, REAR WASHER | ||||
| 85310-22080 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85310-22080 |
LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX) |
1 | ||
| 85310-22080 |
LH66..V5D..DX;LH5#,71..V..(CD,DX);LH6#..(CD,DX)..(03S,06S,08S,09S,15S) |
1 | ||
| 85310-22080 |
YH50,52,6#,71..VSG..(CD,DX) |
1 | ||
| 85330R - JAR ASSY, REAR WASHER | ||||
| 85330-95J03 |
YH50,52,6#,71..VSG..(CD,DX) |
1 | ||
| 85330-95J03 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85330-95J03 |
LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX) |
1 | ||
| 85330-95J03 |
LH66..V5D..DX;LH5#,71..V..(CD,DX);LH6#..(CD,DX)..(03S,06S,08S,09S,15S) |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
LH5#,6#..(COM,V)..SRF..(CD,DX) |
2 | ||
| 85349-89122 |
YH50,52,6#..SRF..VSG..(CD,DX) |
2 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
LH5#,6#..(COM,V)..SRF..(CD,DX) |
2 | ||
| 85349-89122 |
YH50,52,6#..SRF..VSG..(CD,DX) |
2 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
YH50,52,6#..SRF..VSG..(CD,DX) NO.1 |
1 | ||
| 85355-14481 |
LH5#,6#..(COM,V)..SRF..(CD,DX) NO.1 |
1 | ||
| 85355-20200 |
YH50,52,6#..SRF..VSG..(CD,DX) NO.2 |
1 | ||
| 85355-20200 |
LH5#,6#..(COM,V)..SRF..(CD,DX) NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-14481 |
YH50,52,6#..SRF..VSG..(CD,DX) NO.1 |
1 | ||
| 85355-14481 |
LH5#,6#..(COM,V)..SRF..(CD,DX) NO.1 |
1 | ||
| 85355-20200 |
YH50,52,6#..SRF..VSG..(CD,DX) NO.2 |
1 | ||
| 85355-20200 |
LH5#,6#..(COM,V)..SRF..(CD,DX) NO.2 |
1 | ||
| 85355R - VALVE, REAR WASHER HOSE | ||||
| 85031-12250 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85031-12250 |
LH66..V5D..DX;LH5#,71..V..(CD,DX);LH6#..(CD,DX)..(03S,06S,08S,09S,15S) |
1 | ||
| 85031-12250 |
LH66..V5D..DX;LH66..DX..08S;LH5#,61,71..(COM,V)..(CD,DX) |
1 | ||
| 85031-12250 |
YH50,52,6#,71..VSG..(CD,DX) |
1 | ||
| 85360R - BRACKET ASSY, REAR WASHER | ||||
| 85307-95J00 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85307-95J00 |
LH5#,6#,71..(COM,V)..(CD,DX) |
1 | ||
| 85361R - HOLDER, REAR WASHER | ||||
| 85361-95J00 |
YH50,52,6#,71..(4HC,5H)..(CD,DX) |
1 | ||
| 85361-95J00 |
LH5#,6#,71..(COM,V)..(CD,DX) |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
YH50,52,6#..SRF..VSG..(CD,DX) |
1 | ||
| 90446-07001 |
LH5#,6#..(COM,V)..SRF..(CD,DX) |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-33435 |
LH5#,6#..(COM,V)..SRF..(CD,DX) *H,L=280 |
1 | ||
| 90099-33435 |
YH50,52,6#..SRF..VSG..(CD,DX) *H,L=280 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33434 |
LH5#,6#..(COM,V)..SRF..(CD,DX) *H,L=550 |
1 | ||
| 90099-33434 |
YH50,52,6#..SRF..VSG..(CD,DX) *H,L=550 |
1 | ||
| Common parts | ||||
| 90464-00052 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 6451 | ||||
| 8202 | ||||
| 8601 | ||||
