LH61V-PNFE (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

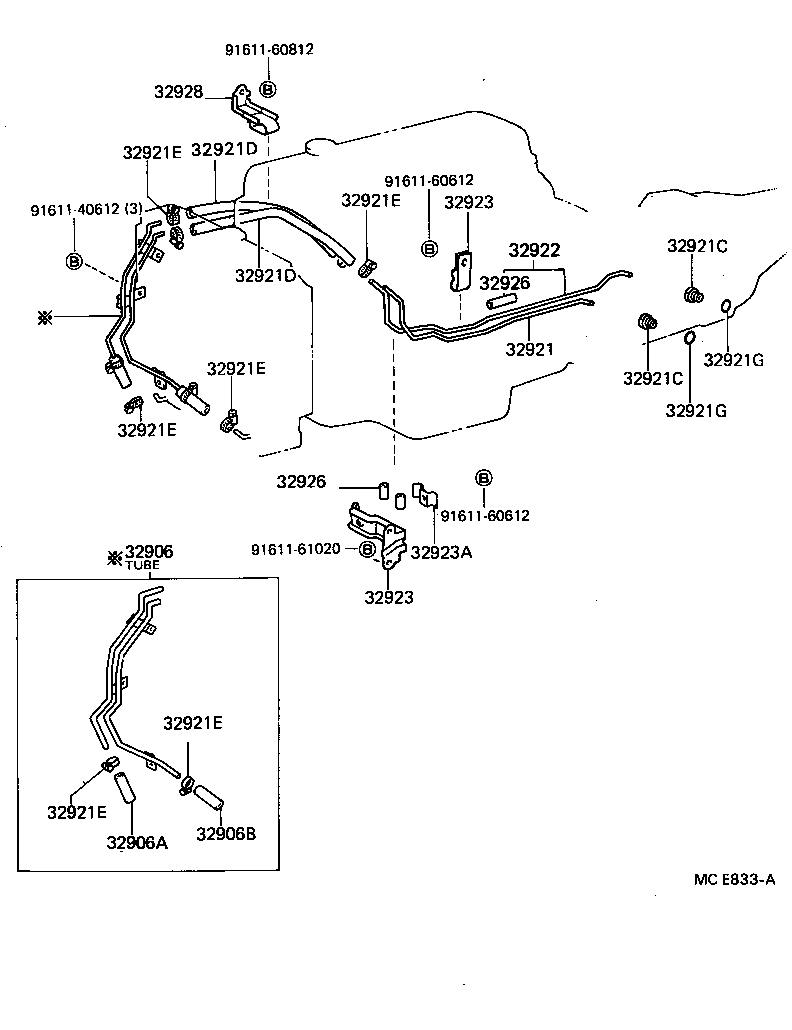

(8708- )YH51,61..ATM

Click highlighted areas on diagram

diagram 32906 32906A 32906B 32921 32921C 32921C 32921D 32921D 32921E 32921E 32921E 32921E 32921E 32921E 32921G 32921G 32922 32923 32923 32923A 32926 32926 32928 9161140612 9161160612 9161160612 9161160812 9161161020
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26030

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-16029

LH51,61,YH51,61..ATM

 1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-16029

LH51,61,YH51,61..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26040

YH51,61..ATM

 1
32922-26070

LH51,61..SRF..ATM

 1
32921-26041

YH51,61..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

LH51,61..ATM..DSL

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

LH51,61..ATM..DSL

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-26030

YH51,61..ATM

 2
90445-16035

LH51,61..ATM..DSL

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-26030

YH51,61..ATM

 2
90445-16035

LH51,61..ATM..DSL

 2
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH51,61,YH51,61..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH51,61,YH51,61..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32921-26070

LH51,61..SRF..ATM

 1
32922-26040

YH51,61..ATM

 1
32922-26041

YH51,61..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-26020

YH51,61..ATM

ｴﾝｼﾞﾝ側

 1
90461-08628

YH51,61..ATM

HOUSING SIDE

 1
32923-26040

LH51,61..ATM..DSL

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-26020

YH51,61..ATM

ｴﾝｼﾞﾝ側

 1
90461-08628

YH51,61..ATM

HOUSING SIDE

 1
32923-26040

LH51,61..ATM..DSL

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12044

LH51,61..ATM..DSL

 3
90462-12044

YH51,61..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

YH51,61..ATM

長さ=35,内径=10

 2
32926-30020

LH51,61..ATM

長さ=35,内径=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

YH51,61..ATM

長さ=35,内径=10

 2
32926-30020

LH51,61..ATM

長さ=35,内径=10

 6
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-26010

LH51,61..ATM..DSL

 1
90949-01215

YH51,61..ATM

 1
Common parts
91611-40612
91611-60612
91611-60812
91611-61020

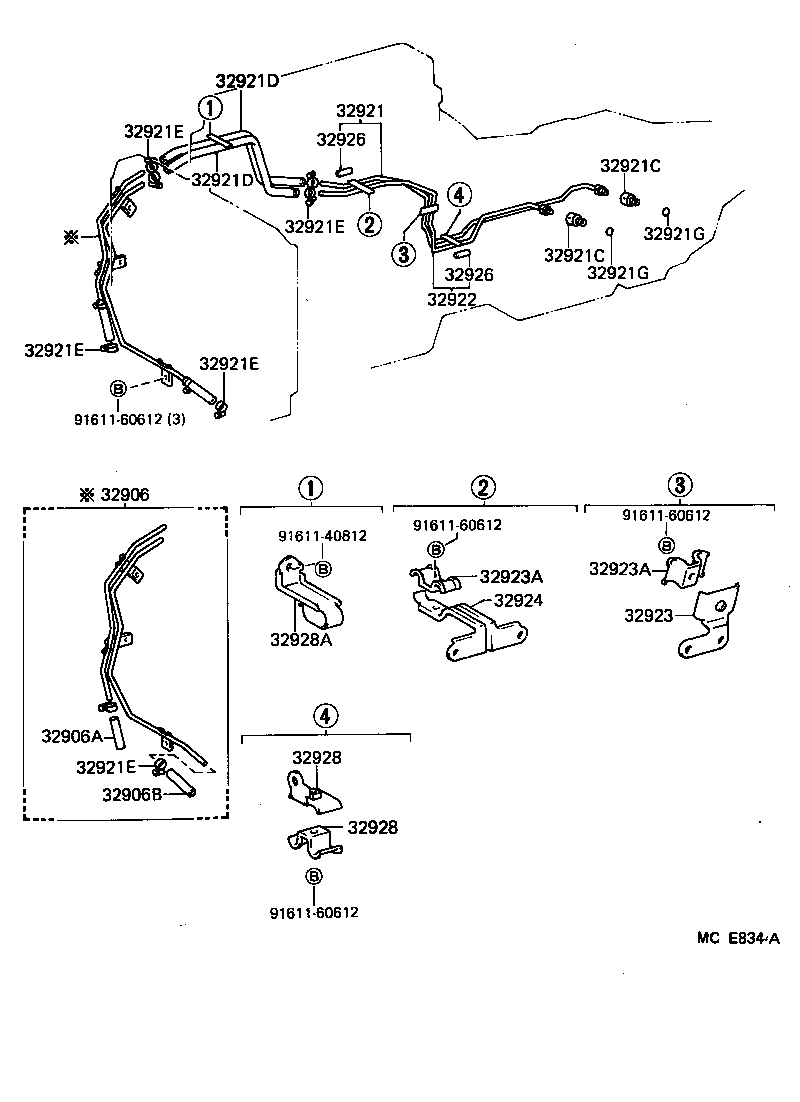

(8708- )ATM..DSL

Click highlighted areas on diagram

diagram 32906 32906A 32906B 32921 32921C 32921C 32921D 32921D 32921E 32921E 32921E 32921E 32921E 32921G 32921G 32922 32923 32923A 32923A 32924 32926 32926 32928 32928 32928A 9161140812 9161160612 9161160612 9161160612 9161160612
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26030

LH51,61,YH51,61..ATM..(CBR,DSL)

 1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-16029

LH51,61,YH51,61..ATM

 1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-16029

LH51,61,YH51,61..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26040

YH51,61..ATM

 1
32922-26070

LH51,61..SRF..ATM

 1
32921-26041

YH51,61..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

LH51,61..ATM..DSL

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

LH51,61..ATM..DSL

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-26030

YH51,61..ATM

 2
90445-16035

LH51,61..ATM..DSL

 2
32921D - HOSE(FOR OIL COOLER INLET)
32941-26030

YH51,61..ATM

 2
90445-16035

LH51,61..ATM..DSL

 2
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-18002

LH51,61,YH51,61..ATM

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH51,61,YH51,61..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

LH51,61,YH51,61..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32921-26070

LH51,61..SRF..ATM

 1
32922-26040

YH51,61..ATM

 1
32922-26041

YH51,61..ATM

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-26020

YH51,61..ATM

ｴﾝｼﾞﾝ側

 1
90461-08628

YH51,61..ATM

HOUSING SIDE

 1
32923-26040

LH51,61..ATM..DSL

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12044

LH51,61..ATM..DSL

 3
90462-12044

YH51,61..ATM

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12044

LH51,61..ATM..DSL

 3
90462-12044

YH51,61..ATM

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-26040

LH51,61..ATM..DSL

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

YH51,61..ATM

長さ=35,内径=10

 2
32926-30020

LH51,61..ATM

長さ=35,内径=10

 6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

YH51,61..ATM

長さ=35,内径=10

 2
32926-30020

LH51,61..ATM

長さ=35,内径=10

 6
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-26010

LH51,61..ATM..DSL

 1
90949-01215

YH51,61..ATM

 1
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-26010

LH51,61..ATM..DSL

 1
90949-01215

YH51,61..ATM

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90949-01215

LH51,61..ATM..DSL

 1
Common parts
91611-40812
91611-60612
