LH61V-MNFE (1987)
Toyota Hiace Van,Wagon
ILLUST NO. 1 OF 2(8708- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33501-26192 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-2005234 |
LH61,YH61..5F;LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,YH50,51,57..5F..(GL,SCM) BLUE,TRIM8# |
1 | ||
| 33504-2005234 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..5F..(GL,SCM) BLUE,TRIM8# |
1 | ||
| 33530E - SPRING, TENSION (FOR SELECT RETURN) | ||||
| 90508-35016 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33535-26051 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33535H - COLLAR (FOR CONTROL SELECT LEVER) | ||||
| 90387-10004 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33535H - COLLAR (FOR CONTROL SELECT LEVER) | ||||
| 90387-10004 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT) | ||||
| 90386-13192 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
2 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33553 - SEAT, SHIFT LEVER SPRING | ||||
| 33553-28010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-28010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33556F - SEAT, TRANSMISSION SHIFT LEVER BALL | ||||
| 33556-27010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-28010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33574F - RETAINER, DUST SEAL (FOR FLOOR SHIFT) | ||||
| 33574-28010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
4 | ||
| 33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33575-26041 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33644G - BUSH (FOR GEAR SELECTING SHAFT) | ||||
| 90386-15110 |
LH51,61,71,YH50,51,61..5F |
2 | ||
| 33644G - BUSH (FOR GEAR SELECTING SHAFT) | ||||
| 90386-15110 |
LH51,61,71,YH50,51,61..5F |
2 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33671-26090 |
LH51,61,71,YH50,51,61..5F 内側 |
1 | ||
| 33673-26080 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F 外側 |
1 | ||
| 33671F - SUPPORT, CONTROL ROD, NO.1 | ||||
| 33671-26090 |
LH51,61,71,YH50,51,61..5F 内側 |
1 | ||
| 33673-26080 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F 外側 |
1 | ||
| 33710 - ROD ASSY, GEAR SHIFTING, NO.1 | ||||
| 33710-26131 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM..(CBR,DSL) |
1 | ||
| 33731F - ROD, GEAR SELECTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33720-26042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33740F - END ASSY, CONNECTING ROD, NO.1(FOR FLOOR SHIFT) | ||||
| 33740-26010 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
1 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 90480-17177 |
LH51,61,71,YH50,51,61..5F |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 90480-17177 |
LH51,61,71,YH50,51,61..5F |
3 | ||
| 33744F - LEVER, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33744-26120 |
LH51,61,71,YH50,51,61..5F |
1 | ||
| 33745F - LEVER, GEAR SHIFTING, NO.2 (FOR FLOOR SHIFT) | ||||
| 33745-26102 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
1 | ||
| 33750F - END, CONNECTING ROD, NO.2 (FOR FLOOR SHIFT) | ||||
| 33750-26010 |
LH51,61,71,YH50,51,61..5F..(CBR,DSL) |
1 | ||
| 33770H - CROSS SHAFT ASSY (FOR FLOOR SHIFT) | ||||
| 33770-26032 |
LH51,61,71,YH50,51,61..5F |
1 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
4 | ||
| 33772F - BUSH, CROSS SHAFT SUPPORT, NO.1 (FOR FLOOR SHIFT) | ||||
| 33772-20010 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
4 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..4FC,5F |
2 | ||
| 33773H - RING, SNAP (FOR CROSS SHAFT SUPPORT SNAP) | ||||
| 96151-01600 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..4FC,5F |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F 外側 |
2 | ||
| 33789-36030 |
LH51,61,71,YH50,51,61..5F 内側 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F 外側 |
2 | ||
| 33789-36030 |
LH51,61,71,YH50,51,61..5F 内側 |
2 | ||
| 33775F - COVER, CROSS SHAFT DUST, NO.1 (FOR FLOOR SHIFT) | ||||
| 33775-28040 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F 外側 |
2 | ||
| 33789-36030 |
LH51,61,71,YH50,51,61..5F 内側 |
2 | ||
| Common parts | ||||
| 90170-08052 | ||||
| 90179-08146 | ||||
| 90389-08005 | ||||
| 90468-14004 | ||||
| 91121-51070 | ||||
| 91121-70840 | ||||
| 91651-40820 | ||||
| 91661-40825 | ||||
| 93381-16012 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94613-10800 | ||||

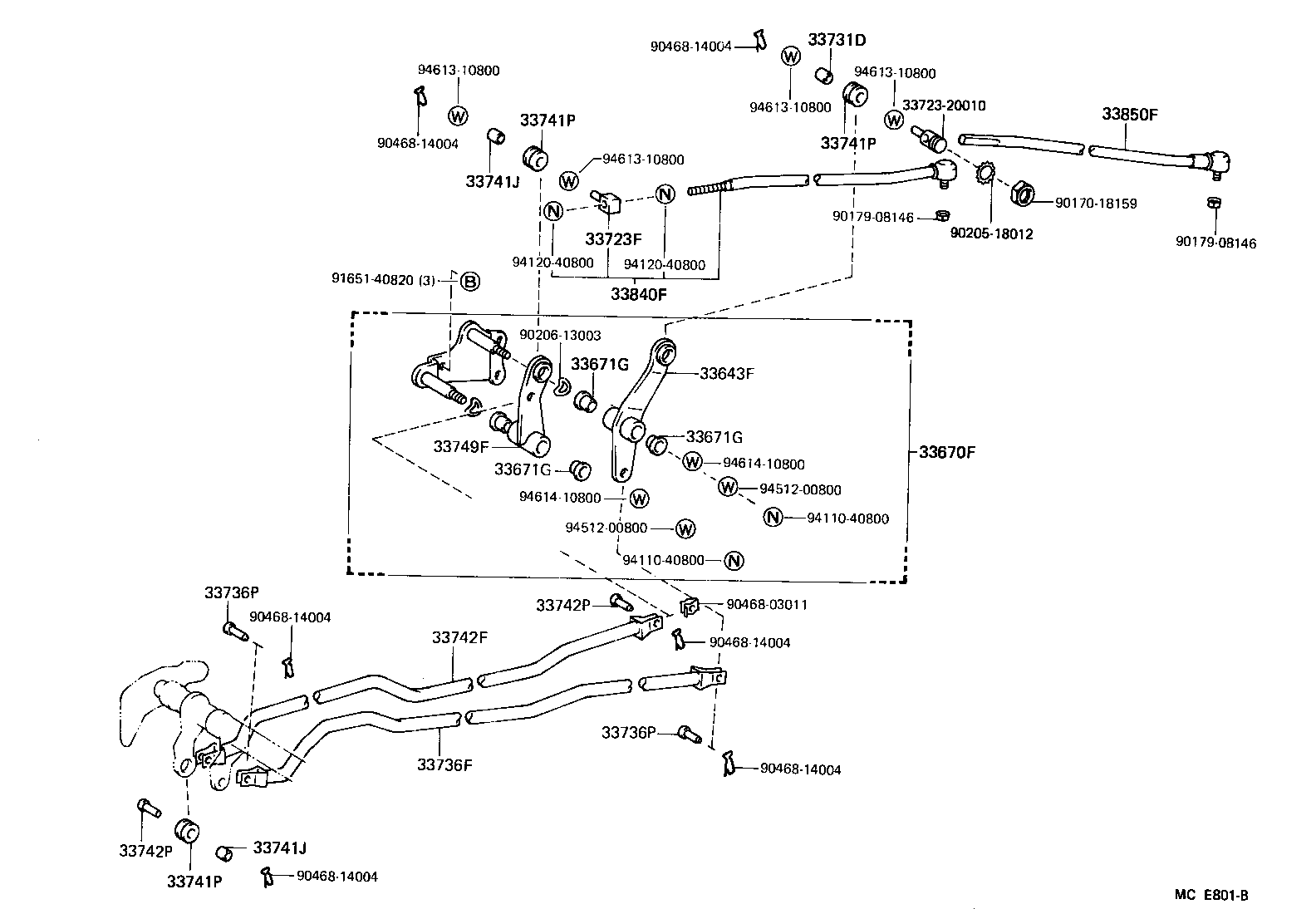

ILLUST NO. 2 OF 2(8708- )LH51,61,71,YH50,51,61..5F..CBR,DSL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33643F - LEVER, GEAR SELECTING, NO.3 | ||||
| 33643-26081 |
LH51,61,71,YH50,61..5F..(05S,10S) |
1 | ||
| 33670F - SUPPORT ASSY, CONTROL ROD (FOR FLOOR SHIFT) | ||||
| 33680-26011 |
LH51,61,71,YH50,61..5F..(05S,10S) |
1 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH50,61..5F..(05S,10S) |
2 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH50,61..5F..(05S,10S) |
2 | ||
| 33671G - BUSH (FOR CONTROL ROD SUPPORT) | ||||
| 90386-13192 |
LH51,61,71,YH50,61..5F..(05S,10S) |
2 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-10020 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..MTM..(CBR,DSL) |
1 | ||
| 33731D - BUSH (FOR GEAR SELECTING ROD) | ||||
| 90389-08005 |
LH51,61,71,YH50,51,61..5F..(CBR,DSL) |
3 | ||
| 33736F - ROD, GEAR SELECTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33736-26151 |
LH51,61,71,YH50,51,61..5F..(CBR,DSL) |
1 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
2 | ||
| 33736P - PIN, W/HOLE(FOR GEAR SELECTING NO.2 ROD) | ||||
| 90240-08042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 33741J - BUSH, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90389-08005 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 90480-17177 |
LH51,61,71,YH50,51,61..5F |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 90480-17177 |
LH51,61,71,YH50,51,61..5F |
3 | ||
| 33741P - GROMMET, NO.2 (FOR SHIFTING OR SELECTING ROD) | ||||
| 90480-17177 |
LH51..4FC..TD;LH51,61,71,YH50,51,61..(4FC,5F)..(CBR,DSL) |
2 | ||
| 90480-17177 |
LH51,61,71,YH50,51,61..5F |
3 | ||
| 33742F - ROD, GEAR SHIFTING, NO.2(FOR FLOOR SHIFT) | ||||
| 33742-26132 |
LH51,61,71,YH50,51,61..5F..(CBR,DSL) |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F ﾌﾛﾝﾄ |
1 | ||
| 90240-08042 |
LH51,61,71,YH50,51,61..5F ﾘﾔ |
1 | ||
| 33742P - PIN, W/HOLE | ||||
| 90240-08034 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH50,51,57,61..5F ﾌﾛﾝﾄ |
1 | ||
| 90240-08042 |
LH51,61,71,YH50,51,61..5F ﾘﾔ |
1 | ||
| 33749F - LEVER, GEAR SHIFT, NO.3 (FOR FLOOR SHIFT) | ||||
| 33749-26081 |
LH51,61,71,YH50,51,52,6#,71..MTM..(CBR,DSL) |
1 | ||
| 33840F - ROD ASSY, GEAR SHIFTING, NO.3 | ||||
| 33840-26091 |
LH51,61,71,YH50,51,61..5F..(CBR,DSL) |
1 | ||
| 33850F - ROD ASSY, GEAR SELECTING, NO.3 | ||||
| 33850-26031 |
LH51,61,71,YH50,51,61..5F..(CBR,DSL) |
1 | ||
| Common parts | ||||
| 33723-20010 | ||||
| 90170-18159 | ||||
| 90179-08146 | ||||
| 90205-18012 | ||||
| 90206-13003 | ||||
| 90468-03011 | ||||
| 90468-14004 | ||||
| 91651-40820 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| 94614-10800 | ||||
