LH61V-MNE (1987)
Toyota Hiace Van,Wagon
(8708- )LH51,61,71,YH50,51,52,6#,71..CD,CTM,DX,GL

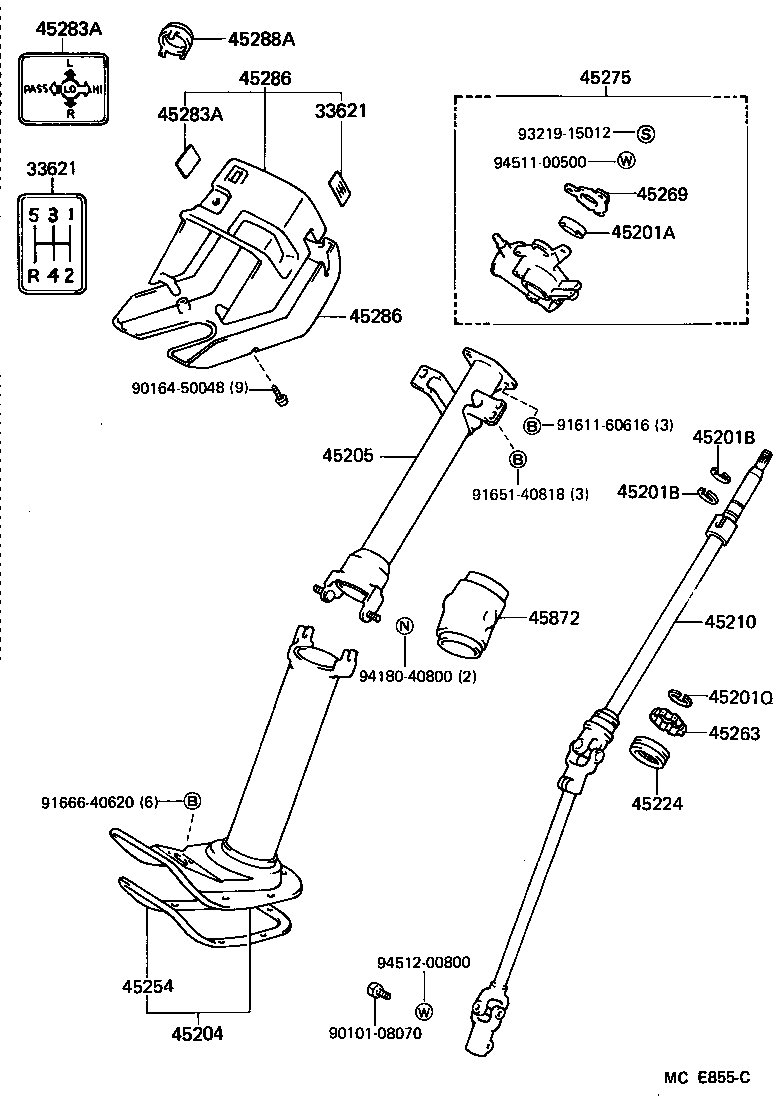

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 90520-17269 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 90520-17269 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 厚さ=1.20 |
1 | ||
| 45201Q - RING(FOR STEERING COLUMN RING) | ||||
| 96152-00300 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-26010 |
LH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S) |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-26081 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-26020 |
LH51,61,71,YH50,51,61,71..CTM,DX,GL,SCL,SCM,SGL |
1 | ||
| 45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45225-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 長さ=16 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-26050 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45263 - RING, STEERING COLUMN, NO.1 | ||||
| 45263-32010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45307-26081 |
LH66..(DX,SGL)..08S;LH5#,61,71,YH50..CD,CTM,DX,GL,SCM,SGL;LH66,YH51,61,71..VSG..(03S,05S,06S,09S) |
1 | ||
| 45307-26071 |
YH5#,6#,71..CD,CTM,DX,GL,SCM |
1 | ||
| 45307-26081 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2618104 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..(GL,SCM,SGL)..(05S,08S) BLUE,TRIM8#,上側 |
1 | ||
| 45287-2611104 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..(GL,SCM,SGL)..(05S,08S) BLUE,TRIM8#,下側 |
1 | ||
| 45287-2611104 |
LH66..SGL..08S;LH61,YH61..05S,10S;LH66..(GL,SGL)..05S;LH5#,YH50,51,57..GL,SCM,SGL BLUE,TRIM8#,下側 |
1 | ||
| 45286-2618104 |
LH66..SGL..08S;LH61,YH61..05S,10S;LH66..(GL,SGL)..05S;LH5#,YH50,51,57..GL,SCM,SGL BLUE,TRIM8#,上側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-2618104 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..(GL,SCM,SGL)..(05S,08S) BLUE,TRIM8#,上側 |
1 | ||
| 45287-2611104 |
LH66..SGL..08S;LH66..(GL,SGL)..05S;LH5#,61,YH50,51,57,61..(GL,SCM,SGL)..(05S,08S) BLUE,TRIM8#,下側 |
1 | ||
| 45287-2611104 |
LH66..SGL..08S;LH61,YH61..05S,10S;LH66..(GL,SGL)..05S;LH5#,YH50,51,57..GL,SCM,SGL BLUE,TRIM8#,下側 |
1 | ||
| 45286-2618104 |
LH66..SGL..08S;LH61,YH61..05S,10S;LH66..(GL,SGL)..05S;LH5#,YH50,51,57..GL,SCM,SGL BLUE,TRIM8#,上側 |
1 | ||
| 45288A - SPACER, COLUMN COVER | ||||
| 45288-32020 |
LH66..DX..08S;LH5#,6#,71,YH50,51,61..(DX,GL)..(05S,10S) |
1 | ||
| 45872 - COVER, STEERING COLUMN TUBE | ||||
| 45872-26010 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90164-50048 | ||||
| 91611-60616 | ||||
| 91651-40818 | ||||
| 91666-40620 | ||||
| 93219-15012 | ||||
| 94180-40800 | ||||
| 94511-00500 | ||||
| 94512-00800 | ||||
