LH61G-MD (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(8708- )

Click highlighted areas on diagram

diagram 5517395J02 82001 82001 82046A 82111 82112 82113 82121 82121 82122 82123 82124 82125 82131 82132 82151 82152 82210C 82221 82241C 82345 82615A 82670 82701 9011908063 9011908063 9011908103 9011908103 9011908103 9011908116 9015950068 9017906158 9017908146 9018305014 9161160816 9161160816 9161161014 9162140814 9165140616 9165140816 9338216014
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07274

YH50,51,52,6#,71

NO.2

 1
82001 - CABLE, BOND, NO.1
90980-07274

YH50,51,52,6#,71

NO.2

 1
82046A - WIRE SUB-ASSY, BODY GROUND, NO.1
82046-95J01

YH5#,6#,71

 1
82046-95J00

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
82111 - WIRE, ENGINE ROOM MAIN
82115-95N05

YH51,61..WG..DX

 1
82115-95N24

LH51,61,71..WG..DX

 1
82111-95P44

LH51,61,71..WG..DX

 1
82115-95N84

YH51,61..WG..DX

 1
82115-95N24

LH51,61,71..WG..DX

 1
82121 - WIRE, ENGINE
82121-95J12

LH51,61,71..WG..MTM

 1
82121-95J12

LH51,61,71..WG

 1
82121-95J03

YH51,61..WG

 1
82121 - WIRE, ENGINE
82121-95J12

LH51,61,71..WG..MTM

 1
82121-95J12

LH51,61,71..WG

 1
82121-95J03

YH51,61..WG

 1
82122 - WIRE, ENGINE, NO.2
82122-95J33

LH51,61,71..WG..MTM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82122-95J34

LH51,61,71..WG..MTM

 1
82122-95J33

LH51,61,71..WG..MTM

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
82123 - WIRE, ENGINE, NO.3
82123-95J02

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

 1
82125 - WIRE, TRANSMISSION
82125-95J00

YH51..MRF..5F;LH51,61,71,YH52,62..MTM;YH51,61,71..(COM,WG)..DX

 1
82125-95J00

YH51..DX;YH51..MRF..5F;LH51,61,71,YH50,52,6#,71..MTM

 1
82131 - WIRE, COWL
82135-95J14

YH51,61..WG..(09S,10S)

 1
82135-95J23

LH51,61,71..WG..MTM..(09S,10S)

 1
82210C - FUSIBLE LINK
90982-08253

LH66..05S;LH5#,61,71;LH66..(DX,SGL)..08S

80A,ｵｽ端子,黒

 1
90982-08202

YH51,61,71..VSG;LH66..(DX,SGL)..08S;LH5#,6#,71,YH50..03S,05S,06S,09S,10S,15S

60A,ｵｽ端子,黄

 1
90982-08202

YH51,61..VSG;LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,52,62,71..03S,05S,06S,09S,10S,15S

60A,ｵｽ端子,黄

 1
90982-08189

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

40A,ﾒｽ端子,緑

 1
90982-08189

LH66..(DX,SGL)..08S;LH66,YH71..05S,06S,09S;LH5#,61,71,YH50,51,57,61

40A,ﾒｽ端子,緑

 1
90982-08228

YH51,57,61..WG

50A,ｵｽ端子,赤

 1
90982-08188

YH51,57,61..WG

30A,ﾒｽ端子,ﾋﾟﾝｸ

 1
90982-08246

YH51,57,61..WG

100A,ｵｽ端子,青

 1
82701 - BRACKET SUB-ASSY, WIRE HARNESS
82701-95J02

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
82701-95J02

LH66..(DX,SGL)..08S;LH66,YH71..05S,06S,09S;LH5#,61,71,YH50,51,57,61

 1
Common parts
55173-95J02
90119-08063
90119-08103
90119-08116
90159-50068
90179-06158
90179-08146
90183-05014
91611-60816
91611-61014
91621-40814
91651-40616
91651-40816
93382-16014

ILLUST NO. 2 OF 4(8708- )

Click highlighted areas on diagram

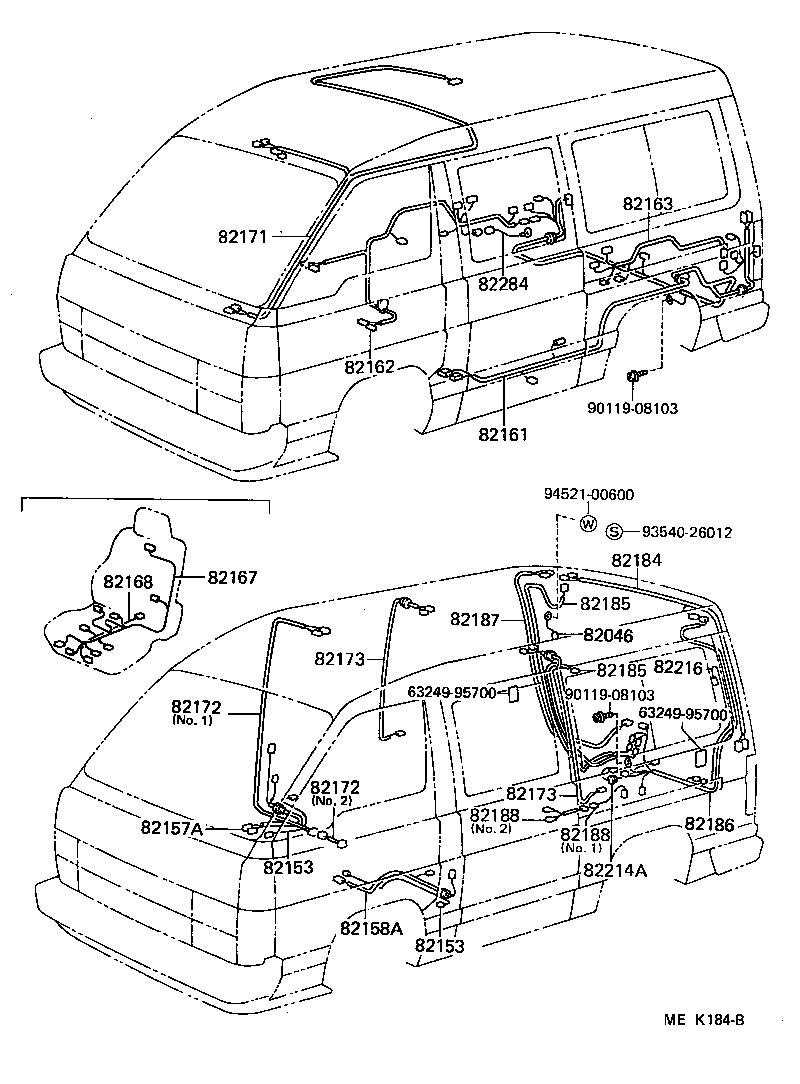

diagram 6324995700 6324995700 82046 82153 82153 82157A 82158A 82161 82162 82163 82167 82168 82171 82172 82172 82173 82173 82184 82185 82185 82186 82187 82188 82188 82214A 82216 82284 9011908103 9011908103 9354026012 9452100600
Part # Description Qty Price
82046 - WIRE SUB-ASSY, REAR WINDOW DEFOGGER EARTH
82046-95701

LH51,61,YH51,61..WG..DX

 1
82046-95701

LH51,61,YH51,61..WG..DX

 1
82157A - WIRE, STEP PANEL, RH
82157-95J06

LH51,61,71,YH51,61..WG..DX

 1
82157-95J06

LH51,61,YH51,61..WG..DX

 1
82161 - WIRE, FLOOR
82161-95J70

LH61..10S

ﾖｳｼﾞ ﾊﾞｽ OR ｶﾝﾚｲﾁ ｼﾖｳ & ﾖｳｼﾞ ﾊﾞｽ

 1
82161-95J69

LH61..10S

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82161-95J68

LH61,YH6#..(CD,DX)..ST

 1
82161-95J70

LH61..10S

ﾖｳｼﾞ ﾊﾞｽ OR ｶﾝﾚｲﾁ ｼﾖｳ & ﾖｳｼﾞ ﾊﾞｽ OR ﾕｷｸﾞﾆ ｼﾖｳ & ﾖｳｼﾞ ﾊﾞｽ

 1
82161-95J69

LH61..10S

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ

 1
82171 - WIRE, ROOF, NO.1
82171-95J14

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,YH5#,6#..SRF

 1
82171-95J00

LH61..10S

ﾅｼ(ｸﾛﾂｸ)

 1
82184 - WIRE, BACK DOOR, NO.1
82184-95J04

LH51,61,YH51,61..WG..DX

ｶﾝﾚｲﾁ ｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵｶﾞ)

 1
82184-95J02

LH5#,6#,YH50,51,52,6#..SRF..(CD,DX)

 1
82184-95J04

LH51,61,YH51,61..WG..DX

ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞｳ ﾃﾞﾌｵｶﾞ)

 1
82188 - WIRE, FUEL TANK
82188-95J08

LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)

NO.1;NO.2

 1
82188-95J08

LH61,71..ST;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH66,YH61..(DX,SGL)..(08S,10S);LH5#,66,YH51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)

NO.1

 1
82188 - WIRE, FUEL TANK
82188-95J08

LH61,71,YH61..ST;LH66..(DX,SGL)..08S;LH5#,66,YH50,51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)

NO.1;NO.2

 1
82188-95J08

LH61,71..ST;YH61..HRF..ST;YH50,61..CD,GL;YH61..V5D..06S..ST;LH66,YH61..(DX,SGL)..(08S,10S);LH5#,66,YH51,52,62,71..(COM,V)..(03S,05S,06S,09S,15S)

NO.1

 1
82214A - WIRE, LAMP
82214-95J00

LH66..SGL;LH6#..DX..(08S,10S,15S);LH61..V4D..(4FC,5H)..(05S,09S);LH71,YH51,57,61,71..07S,08S,09S,10S,15S;LH51..(CTM,DX,SCL,SCM,SGL)..(05S,07S,08S,09S)

 1
82216 - WIRE, REAR WINDOW DEFOGGER
82186-95J00

LH51,61,YH51,61..WG..DX

 1
82186-95J00

LH51,61,YH51,61..WG..DX

 1
Common parts
63249-95700
90119-08103
93540-26012
94521-00600

ILLUST NO. 3 OF 4(8708- )

Click highlighted areas on diagram

diagram 3996795660 8281995J02 8281995J03 9048015007 9048030320 9095001038 9095001380
Part # Description Qty Price
Common parts
39967-95660
82819-95J02
82819-95J03
90480-15007
90480-30320
90950-01038
90950-01380

ILLUST NO. 4 OF 4(8708- )

Click highlighted areas on diagram

diagram 8271112200 8271114560 8271117181 827111A210 8271122510 8271122710 8271130700 8271140020 8271140030 8271195413 8271195709 8271195710 8271195A02 8271195J04 8271195J05 8271195J06 8271195J09 9046106645 9046108183 9046108202 9046108214 9046108514 9046110247 9046110275 9046304035
Part # Description Qty Price
Common parts
82711-12200
82711-14560
82711-17181
82711-1A210
82711-22510
82711-22710
82711-30700
82711-40020
82711-40030
82711-95413
82711-95709
82711-95710
82711-95A02
82711-95J04
82711-95J05
82711-95J06
82711-95J09
90461-06645
90461-08183
90461-08202
90461-08214
90461-08514
90461-10247
90461-10275
90463-04035

ILLUST NO. 4 OF 4(8708- )

Click highlighted areas on diagram

diagram 8271130570 9046310336 9046310337 9046310338 9046310521 9046313003 9046315439 9046400052 9046400073 9046400102 9046400108 9046400165 9046400166
Part # Description Qty Price
Common parts
82711-30570
90463-10336
90463-10337
90463-10338
90463-10521
90463-13003
90463-15439
90464-00052
90464-00073
90464-00102
90464-00108
90464-00165
90464-00166
