LH61G-MD (1987)
Toyota Hiace Van,Wagon
(8708- )LH71 ; (8708- )LH5#,6#,YH50,51,52,6#,71..CD,DX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95J0806 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71150-95J00 |
LH51,61,71,YH51,61,71..(COM,WG)..(DX,GL) |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71160-95J10 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-95J5006 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-95J5706 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-95N1306 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-95N2706 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0016 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71274 - KNOB, FRONT SEAT HINGE | ||||
| 71274-95J0016 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71280A - HINGE ASSY, FRONT SEAT BACK, LH | ||||
| 71280-95J00 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71361 - BRACKET, FRONT SEAT SET, NO.1 | ||||
| 71361-95J01 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71364 - BRACKET, FRONT SEAT SET, NO.4 | ||||
| 71364-95J00 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-95J3506 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-95J4106 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71401-95N0806 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71402-95N1106 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-95J00 |
LH66..(DX,SGL)..08S;LH5#,6#,71,YH50,51,52,6#,71..03S,05S,06S,09S,10S,15S |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-95J02 |
LH66..DX..08S;LH5#,6#,71,YH50,51,52,6#,71..(CD,CTM,DX,GL)..(03S,05S,06S,09S,10S,15S) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95J00 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-95J03 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J0106 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH61..10S ﾖｳｼﾞ ﾊﾞｽ |
33 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH61..10S ﾖｳｼﾞ ﾊﾞｽ |
33 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH61..10S ﾖｳｼﾞ ﾊﾞｽ |
33 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH61..10S ﾖｳｼﾞ ﾊﾞｽ |
33 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
LH61..10S ﾖｳｼﾞ ﾊﾞｽ |
33 | ||
| 90468-18071 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX |
66 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J0016 |
LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
1 | ||
| 71832C - COVER, FRONT LH SEAT HINGE | ||||
| 71832-95J0006 |
LH71;LH5#,6#,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-95J02 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-95J01 |
LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..CD,CTM,DX,GL,SCM,SGL |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-95J0006 |
LH5#,6#,71,YH50,51,52,6#,71..CD,DX BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-95J0016 |
LH71;LH5#,6#,YH5#,6#,71..CD,DX,SCL,SCM BROWN,TRIM4# |
1 | ||
| 81917 - WASHER, LEATHER | ||||
| 81917-95J0026 |
LH51,61,71,YH51,61,71..(COM,WG)..(DX,GL) BROWN,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-08086 | ||||
| 90119-08356 | ||||
| 90119-10116 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90183-04046 | ||||
| 90386-12018 | ||||
| 90523-08001 | ||||
| 91611-60818 | ||||
| 91611-61020 | ||||
| 91655-61020 | ||||
| Linked diagrams | ||||
| 5855 | ||||

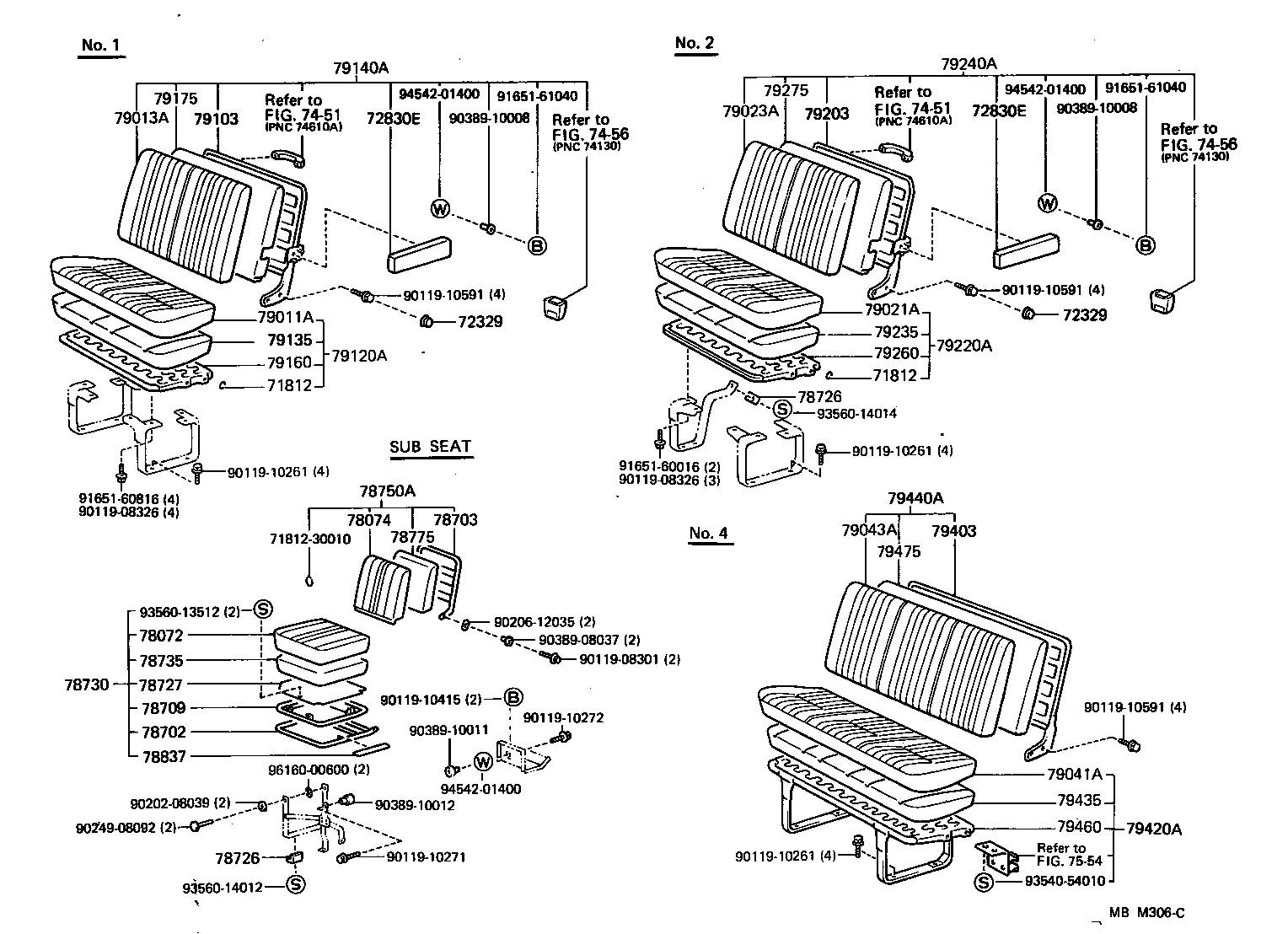

(8708- )10S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH61,71,YH61..10S |
3 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 71812-30010 |
LH61,71,YH61..10S |
3 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH61,71,YH61..10S |
4 | ||
| 72329 - COVER, SEAT ADJUSTER BOLT | ||||
| 72329-87001 |
LH61,71,YH61..10S |
4 | ||
| 72830E - ARMREST ASSY, FRONT SEAT | ||||
| 72830-95J1006 |
LH61,71,YH61..10S BROWN,TRIM4#,8# |
2 | ||
| 72830E - ARMREST ASSY, FRONT SEAT | ||||
| 72830-95J1006 |
LH61,71,YH61..10S BROWN,TRIM4#,8# |
2 | ||
| 78072 - COVER SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78072-95J0906 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 78074 - COVER SUB-ASSY, SUB SEAT BACK, LH | ||||
| 78073-95J0606 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 78702 - FRAME SUB-ASSY, SUB SEAT CUSHION, LH | ||||
| 78702-95J0106 |
LH61,71,YH61,71..10S,15S BROWN,TRIM4# |
1 | ||
| 78703 - FRAME SUB-ASSY, SUB SEAT BACK | ||||
| 78703-95J0006 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 78709 - PANEL SUB-ASSY, SUB SEAT CUSHION | ||||
| 78709-95J0006 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH61,YH61..10S |
3 | ||
| 78726 - CUSHION, SUB SEAT CUSHION FRAME | ||||
| 78726-90C00 |
LH61,YH61..10S |
3 | ||
| 78727 - BOARD, SUB SEAT CUSHION | ||||
| 78727-90C00 |
LH61,71,YH61..10S |
1 | ||
| 78730 - CUSHION ASSY, SUB SEAT, LH | ||||
| 78730-95J0906 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 78735 - PAD, SUB SEAT CUSHION | ||||
| 78735-90C00 |
LH61,71,YH61..10S |
1 | ||
| 78750A - BACK ASSY, SUB SEAT, LH | ||||
| 78740-95J0606 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 78775 - PAD, SUB SEAT BACK | ||||
| 78775-90B00 |
LH61,71,YH61..10S |
1 | ||
| 78837 - PAD, SUB SEAT CUSHION SAFETY | ||||
| 78837-90C01 |
LH61,71,YH61,71..10S,15S |
3 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-95J6506 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-95J4906 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79011-95J6506 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79013-95J4906 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79041A - COVER SUB-ASSY, NO.4 SEAT CUSHION | ||||
| 79041-95J0306 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79043A - COVER SUB-ASSY, NO.4 SEAT BACK | ||||
| 79043-95J0606 |
LH61,71,YH61,71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK | ||||
| 79103-95J1006 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-95J7406 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79035-90B00 |
LH61,71,YH61..10S |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-95J7106 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-95J31 |
LH61,71,YH61..10S |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79175-90C00 |
LH61,71,YH61..10S |
1 | ||
| 79203 - FRAME SUB-ASSY, NO.2 SEAT BACK | ||||
| 79103-95J1006 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79120-95J7406 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79035-90B00 |
LH61,71,YH61..10S |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79140-95J7106 |
LH61,71,YH61..10S BROWN,TRIM4# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79160-95J31 |
LH61,71,YH61..10S |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79175-90C00 |
LH61,71,YH61..10S |
1 | ||
| 79403 - FRAME SUB-ASSY, NO.4 SEAT BACK | ||||
| 79403-95J0006 |
LH61,YH61..10S;LH71,YH71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 79420A - CUSHION ASSY, NO.4 SEAT | ||||
| 79420-95J0606 |
LH61,YH61..10S BROWN,TRIM4# |
1 | ||
| 79435 - PAD, NO.4 SEAT CUSHION | ||||
| 79045-90C00 |
LH61,71,YH61,71..10S,15S |
1 | ||
| 79440A - BACK ASSY, NO.4 SEAT | ||||
| 79440-95J1006 |
LH61,YH61..10S;LH71,YH71..DX..(10S,15S) BROWN,TRIM4# |
1 | ||
| 79460 - SPRING ASSY, NO.4 SEAT CUSHION | ||||
| 79460-95J03 |
LH61,YH61..10S |
1 | ||
| 79475 - PAD, NO.4 SEAT BACK | ||||
| 79475-90C01 |
LH61,71,YH61,71..DX..(10S,15S) |
1 | ||
| Common parts | ||||
| 71812-30010 | ||||
| 90119-08301 | ||||
| 90119-08326 | ||||
| 90119-10261 | ||||
| 90119-10271 | ||||
| 90119-10272 | ||||
| 90119-10415 | ||||
| 90119-10591 | ||||
| 90202-08039 | ||||
| 90206-12035 | ||||
| 90249-08092 | ||||
| 90389-08037 | ||||
| 90389-10008 | ||||
| 90389-10011 | ||||
| 90389-10012 | ||||
| 91651-60016 | ||||
| 91651-60816 | ||||
| 91651-61040 | ||||
| 93540-54010 | ||||
| 93560-13512 | ||||
| 93560-14012 | ||||
| 93560-14014 | ||||
| 94542-01400 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||
| 7554 | ||||
