LH61G-MD (1987)

Toyota Hiace Van,Wagon

Production Aug 1987 - Aug 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

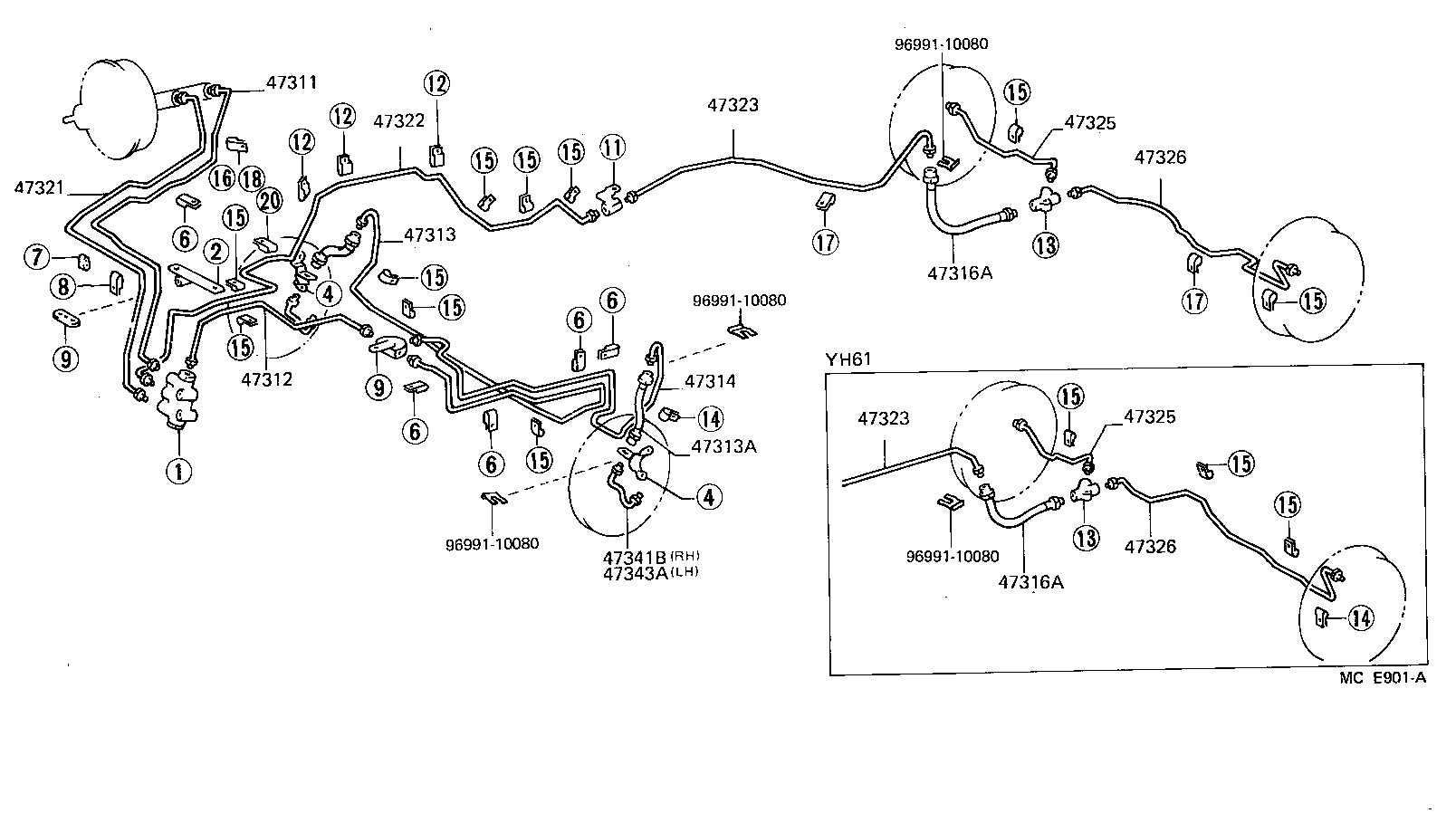

ILLUST NO. 1 OF 3(8708- )LH51,61,YH51,61..WG

Click highlighted areas on diagram

diagram 47311 47312 47313 47313A 47314 47316A 47316A 47321 47322 47323 47323 47325 47325 47326 47326 47341B 47343A 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-26202

LH51,61,71,YH51,61..WG

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-26181

LH51,61,71,YH51,61..WG

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26091

LH51,61,71,YH50,51,52,6#,71

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02477

LH51,61,71,YH50,51,52,6#,71

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-26081

LH51,61,71,YH50,51,52,6#,71

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33205

LH51,61,71,YH50,51,52,6#,71..ST

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-33205

LH51,61,71,YH50,51,52,6#,71..ST

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-26112

LH51,61,71,YH51,61..WG

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-26112

LH51,61,71,YH51,61..WG

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26221

LH61,YH61..10S

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26221

LH61,YH61..10S

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26151

LH61,71,YH61..10S

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26151

LH61,71,YH61..10S

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26131

LH61,71,YH61..10S

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26131

LH61,71,YH61..10S

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-26060

LH51,61,71,YH50,51,52,6#,71

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-26060

LH51,61,71,YH50,51,52,6#,71

 1
Common parts
96991-10080

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 47190 47311B 47311B 47312E 47321D 47322B 47351 47351 47352 47352 9046108567 9046108593 9046112328 9046112328 9046112328 9046112329 9046206011 9048001069 9048001069 9048001071 9048001122 9048001193 9048001194 9048001196 9048001219 9161140812 9161140814 9161140814 9161140814 9161140814 9161140816 9161140816 9161140820 9161140820 9161140840 9161160814 9161160814 9161160814 9161160816 9161160816 9161160816 9161160816 9161160828 9165160614 9622120906 9622130905 9622130905
Part # Description Qty Price
47190 - VALVE ASSY, PROPORTIONING & BY-PASS
47190-27020

LH51,61,71,YH51,61..WG

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12007

LH51,61,71,YH51,57,61..WG..MTM

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-12007

LH51,61,71,YH51,57,61..WG..MTM

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10137

LH51,61,71,YH50,51,52,6#,71

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10103

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71..ST

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10147

LH66..05S;LH66..(DX,SGL)..08S;LH5#,61,71,YH5#,6#,71

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

LH51,61,71,YH50,51,52,6#,71

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-26070

LH51,61,71,YH50,51,52,6#,71

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

LH51,61,71,YH50,51,52,6#,71

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-26070

LH51,61,71,YH50,51,52,6#,71

 1
Common parts
90461-08567
90461-08593
90461-12328
90461-12329
90462-06011
90480-01069
90480-01071
90480-01122
90480-01193
90480-01194
90480-01196
90480-01219
91611-40812
91611-40814
91611-40816
91611-40820
91611-40840
91611-60814
91611-60816
91611-60828
91651-60614
96221-20906
96221-30905
