LH60V-QNFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212-8508)LH6#,YH61..GL

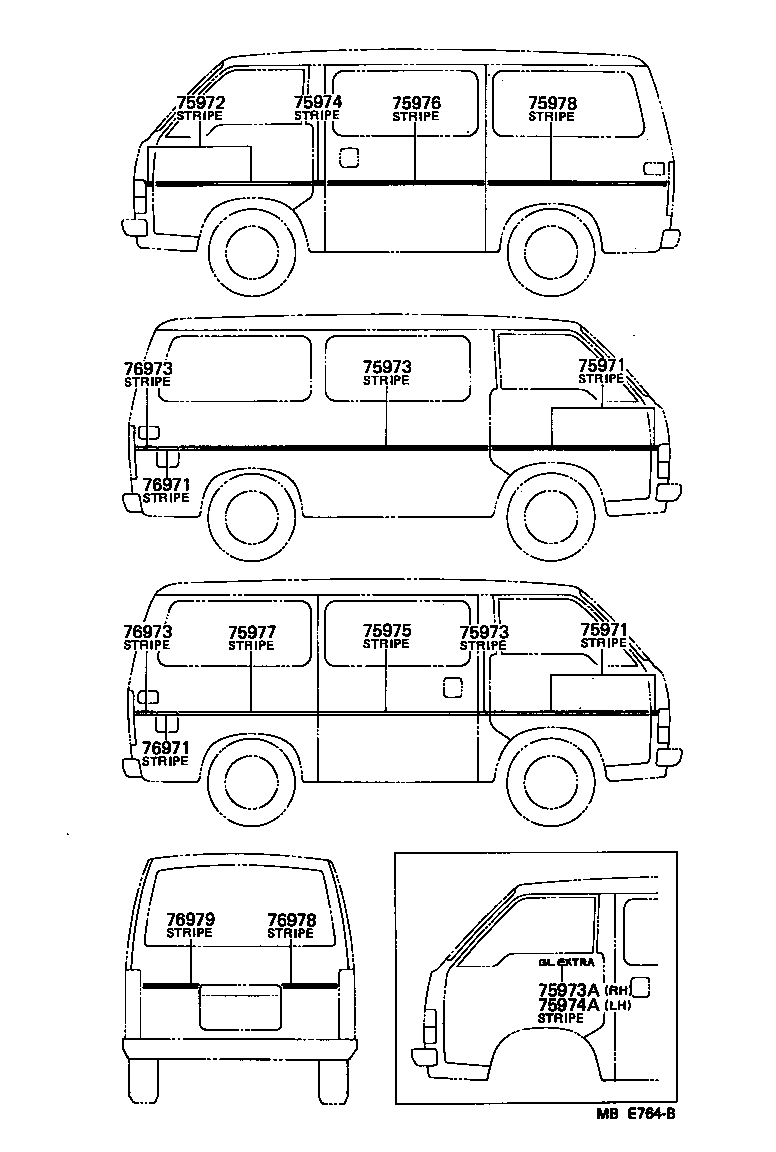

Click highlighted areas on diagram

diagram 75971 75971 75972 75973 75973 75973A 75974 75974A 75975 75976 75977 75978 76971 76971 76973 76973 76978 76979
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75985-95J00

LH6#,YH61..V..SRF

 1
75971 - STRIPE, SIDE, RH NO.1
75985-95J00

LH6#,YH61..V..SRF

 1
75972 - STRIPE, SIDE, LH NO.1
75986-95J00

LH6#,YH61..V..SRF

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J00

LH6#,YH61..SRF..V5D

 1
75973 - STRIPE, SIDE, RH NO.2
75941-95J00

LH6#,YH61..SRF..V5D

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75941-95J00

LH6#,YH61..V..SRF

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75983-95J00

LH6#,YH61..SRF..V5D

 1
75976 - STRIPE, SIDE, LH UPR
75983-95J00

LH6#,YH61..V..SRF

 1
75977 - STRIPE, SIDE, RH NO.4
75991-95J00

LH6#,YH61..SRF..V5D

 1
75978 - STRIPE, SIDE, LH NO.4
75992-95J00

LH6#,YH61..V..SRF

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J00

LH6#,YH61..V..SRF

 1
76971 - STRIPE, SIDE, RH NO.5
76993-95J00

LH6#,YH61..V..SRF

 1
76973 - STRIPE, SIDE, RH NO.6
75993-95J00

LH6#,YH61..V..SRF

 1
76973 - STRIPE, SIDE, RH NO.6
75993-95J00

LH6#,YH61..V..SRF

 1
76978 - STRIPE, REAR BODY BACK, RH
75946-95J00

LH6#,YH61..V..SRF

 1
76979 - STRIPE, REAR BODY BACK, LH
75947-95J00

LH6#,YH61..V..SRF

 1
