LH60V-QNFE (1982)
Toyota Hiace Van,Wagon

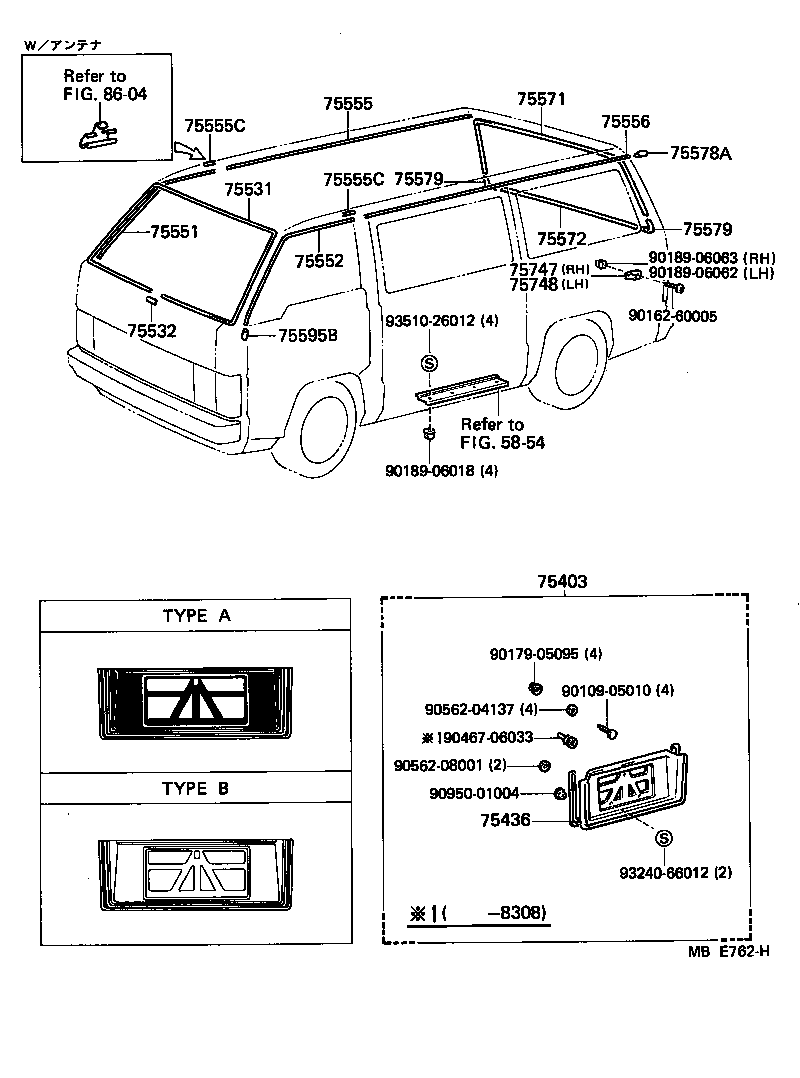

ILLUST NO. 1 OF 2(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-95J00 |
LH5#,6#,7#,YH50,51,61..GL |
1 | ||
| 75532 - MOULDING, WINDSHIELD, LOWER | ||||
| 75532-95J00 |
LH5#,6#,7#,YH50,51,61..GL |
1 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-95J00 |
LH5#,6#,7#,YH50,51,61..GL |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-95J00 |
LH5#,6#,7#,YH50,51,61..GL |
1 | ||
| 75555 - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-95J01 |
LH6#,YH61..GL |
1 | ||
| 75555C - CONNECTOR, ROOF DRIP MOULDING | ||||
| 75555-95J00 |
LH5#,6#,7#,YH50,51,61..GL |
2 | ||
| 75555C - CONNECTOR, ROOF DRIP MOULDING | ||||
| 75555-95J00 |
LH5#,6#,7#,YH50,51,61..GL |
2 | ||
| 75556 - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-95J01 |
LH6#,YH61..GL |
1 | ||
| 75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER | ||||
| 75571-95J00 |
LH5#,6#,7#,YH50,51,61..CTM,GL,SCM |
1 | ||
| 75572 - MOULDING, BACK WINDOW, LOWER | ||||
| 75575-95J00 |
LH5#,6#,7#,YH50,51,61..CTM,GL,SCM |
1 | ||
| 75579 - COVER, BACK WINDOW OUTSIDE MOULDING JOINT | ||||
| 75585-95J00 |
LH5#,6#,7#,YH50,51,61..CTM,GL,SCM |
2 | ||
| 75579 - COVER, BACK WINDOW OUTSIDE MOULDING JOINT | ||||
| 75585-95J00 |
LH5#,6#,7#,YH50,51,61..CTM,GL,SCM |
2 | ||
| 75747 - MOULDING, SLIDE DOOR END, RH | ||||
| 75747-95J00 |
LH5#,6#,YH50,51,61..V5D |
1 | ||
| 75748 - MOULDING, SLIDE DOOR END, LH | ||||
| 75748-95J00 |
LH51,61,71,YH50,51,6#,71 |
1 | ||
| Common parts | ||||
| 90109-05010 | ||||
| 90162-60005 | ||||
| 90179-05095 | ||||
| 90189-06018 | ||||
| 90189-06062 | ||||
| 90189-06063 | ||||
| 90467-06033 | ||||
| 90562-04137 | ||||
| 90562-08001 | ||||
| 90950-01004 | ||||
| 93240-66012 | ||||
| 93510-26012 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 8604 | ||||
ILLUST NO. 2 OF 2(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75061 - MOULDING SET, OUTSIDE | ||||
| 75805-95J10 |
LH6#,YH61..V5D..(DLX,GL) |
1 | ||
| 75061 - MOULDING SET, OUTSIDE | ||||
| 75805-95J10 |
LH6#,YH61..V5D..(DLX,GL) |
1 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75851-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75851-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75851-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75612B - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 75853-95J01 |
LH5#,6#,YH50,51,61..V5D..(CTD,DLX,GL) |
1 | ||
| 75612B - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 75853-95J01 |
LH5#,6#,YH50,51,61..V5D..(CTD,DLX,GL) |
1 | ||
| 75613B - MOULDING, SIDE PANEL, NO.3 RH | ||||
| 75855-95J02 |
LH5#,6#,YH50,51,61..V5D..(CTD,DLX,GL) |
1 | ||
| 75614B - MOULDING, SIDE PANEL, NO.4 RH | ||||
| 75651-95J04 |
LH6#,YH61..V5D |
1 | ||
| 75615B - MOULDING, SIDE PANEL, NO.5 RH | ||||
| 75653-95J04 |
LH6#,7#,YH6#,71..CTD,DLX,GL |
1 | ||
| 75615B - MOULDING, SIDE PANEL, NO.5 RH | ||||
| 75653-95J04 |
LH6#,7#,YH6#,71..CTD,DLX,GL |
1 | ||
| 75615B - MOULDING, SIDE PANEL, NO.5 RH | ||||
| 75653-95J04 |
LH6#,7#,YH6#,71..CTD,DLX,GL |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75852-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75852-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75622B - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 75854-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75622B - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 75854-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75623B - MOULDING, SIDE PANEL, NO.3 LH | ||||
| 75855-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75623B - MOULDING, SIDE PANEL, NO.3 LH | ||||
| 75855-95J02 |
LH5#,6#,7#,YH5#,6#,71..CTD,CTM,DLX,GL |
1 | ||
| 75624B - MOULDING, SIDE PANEL, NO.4 LH | ||||
| 75652-95J04 |
LH6#,YH6#..CTD,DLX,GL |
1 | ||
| 75624B - MOULDING, SIDE PANEL, NO.4 LH | ||||
| 75652-95J04 |
LH6#,YH6#..CTD,DLX,GL |
1 | ||
| 75625B - MOULDING, SIDE PANEL, NO.5 LH | ||||
| 75654-95J04 |
LH6#,7#,YH6#,71..CTD,DLX,GL |
1 | ||
| 75625B - MOULDING, SIDE PANEL, NO.5 LH | ||||
| 75654-95J04 |
LH6#,7#,YH6#,71..CTD,DLX,GL |
1 | ||
