LH60V-QNFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

Click highlighted areas on diagram

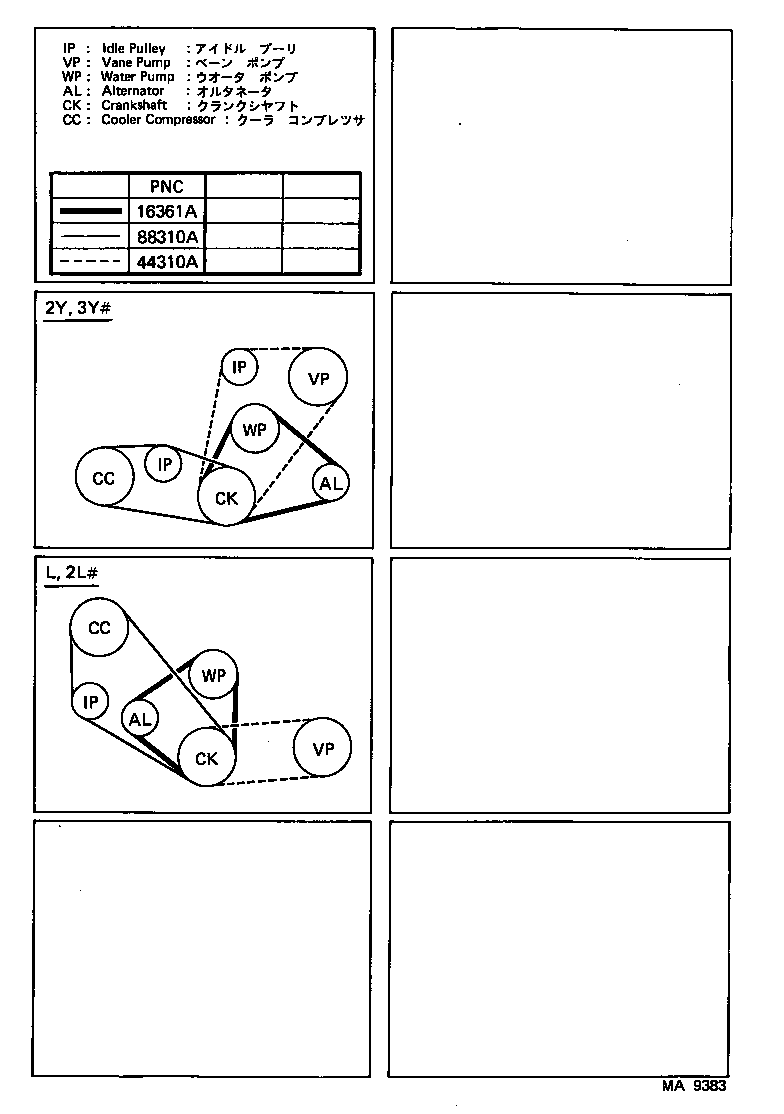

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02132

L,2L#..LH5#,6#,7#

DOUBLE V BELTS

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02080

LH5#,6#,7#

 1
99332-01055

YH51,52,6#,71

長さ=1055

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-01260

LH5#,6#,7#

IDLE PULLEY:OD=90

 1
99322-00910

YH50,52,6#,71..V

SINGLE AIR CON.,PULLEY:OD=90

 1
