LH60V-QNE (1982)
Toyota Hiace Van,Wagon

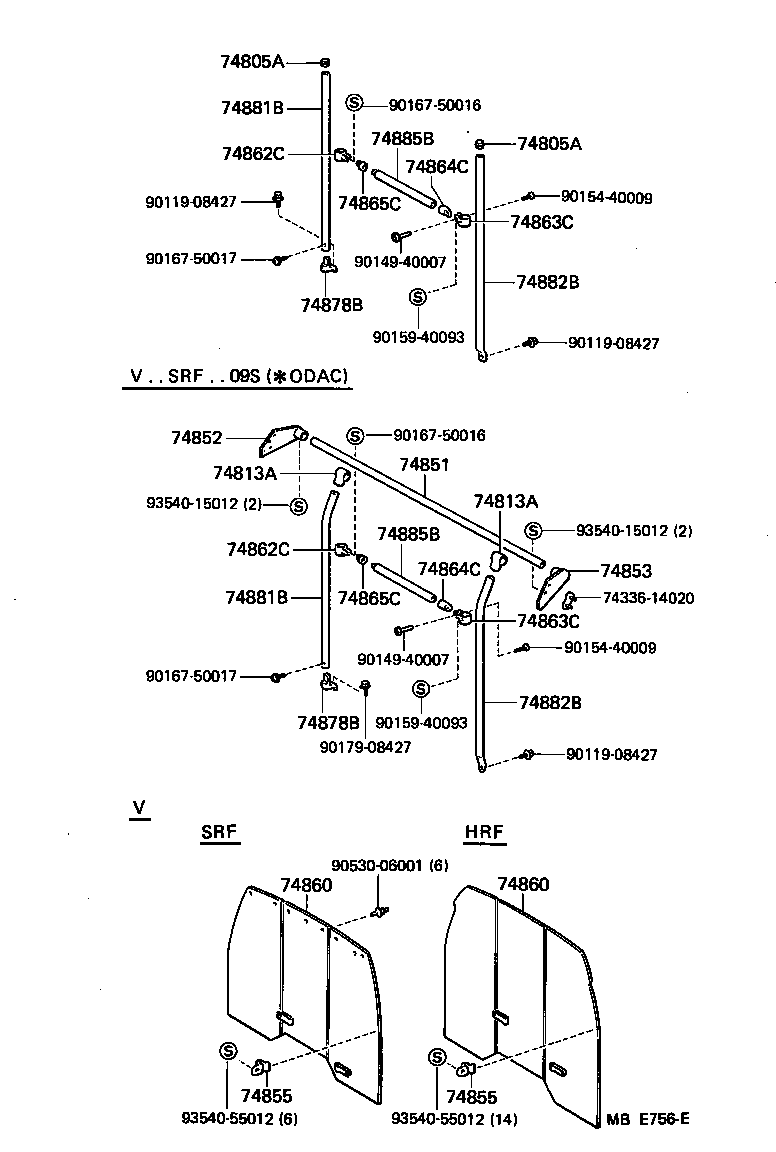

ILLUST NO. 1 OF 2(8212-8508)V ; (8303-8304)YH61..DLX..10S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74805A - GROMMET (FOR SEPARATOR) | ||||
| 90480-3200704 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
2 | ||
| 90480-3200705 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
2 | ||
| 74805A - GROMMET (FOR SEPARATOR) | ||||
| 90480-3200704 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
2 | ||
| 90480-3200705 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
2 | ||
| 74852 - BRACKET, SEPARATOR, RH | ||||
| 74855-95A0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74855-95A0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74853 - BRACKET, SEPARATOR, LH | ||||
| 74858-95A0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74858-95A0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74855 - PLATE, SEPARATOR CURTAIN SET | ||||
| 74862-95661 |
LH50,60,70,YH50,61,71..V |
14 | ||
| 74855 - PLATE, SEPARATOR CURTAIN SET | ||||
| 74862-95661 |
LH50,60,70,YH50,61,71..V |
14 | ||
| 74860 - CURTAIN ASSY, SEPARATE | ||||
| 74870-95J00 |
LH50,60,YH50,61..V |
1 | ||
| 74860 - CURTAIN ASSY, SEPARATE | ||||
| 74870-95J00 |
LH50,60,YH50,61..V |
1 | ||
| 74862C - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74862-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74862-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74862C - BRACKET, SEPARATOR BAR, NO.2 | ||||
| 74862-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74862-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74863C - BRACKET, SEPARATOR BAR, NO.3 | ||||
| 74863-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74863-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74863C - BRACKET, SEPARATOR BAR, NO.3 | ||||
| 74863-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74863-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74864C - BRACKET, SEPARATOR BAR, NO.4 | ||||
| 74864-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74864-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74864C - BRACKET, SEPARATOR BAR, NO.4 | ||||
| 74864-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74864-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74865C - BRACKET, SEPARATOR BAR, NO.5 | ||||
| 74865-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74865-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74865C - BRACKET, SEPARATOR BAR, NO.5 | ||||
| 74865-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74865-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74878B - BRACKET, SEPARATOR BAR, LOWER RH | ||||
| 74878-95J0105 |
LH5#,6#,7#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74878-95J0104 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74878B - BRACKET, SEPARATOR BAR, LOWER RH | ||||
| 74878-95J0105 |
LH5#,6#,7#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74878-95J0104 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74881B - BAR, SEPARATOR, NO.1 | ||||
| 74881-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74881-95J0005 |
LH5#,6#,YH50,52,6#..V..SRF BEIGE,BEIGE |
1 | ||
| 74881B - BAR, SEPARATOR, NO.1 | ||||
| 74881-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74881-95J0005 |
LH5#,6#,YH50,52,6#..V..SRF BEIGE,BEIGE |
1 | ||
| 74882B - BAR, SEPARATOR, NO.2 | ||||
| 74882-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74882-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74882B - BAR, SEPARATOR, NO.2 | ||||
| 74882-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74882-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74885B - BAR, SEPARATOR, NO.5 | ||||
| 74885-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74885-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| 74885B - BAR, SEPARATOR, NO.5 | ||||
| 74885-95J0004 |
LH5#,6#,YH50,61..GL BLUE GRAY,BLUE |
1 | ||
| 74885-95J0005 |
LH5#,6#,YH50,52,6#..V BEIGE,BEIGE |
1 | ||
| Common parts | ||||
| 74336-14020 | ||||
| 90119-08427 | ||||
| 90149-40007 | ||||
| 90154-40009 | ||||
| 90159-40093 | ||||
| 90167-50016 | ||||
| 90167-50017 | ||||
| 90179-08427 | ||||
| 90530-06001 | ||||
| 93540-15012 | ||||
| 93540-55012 | ||||

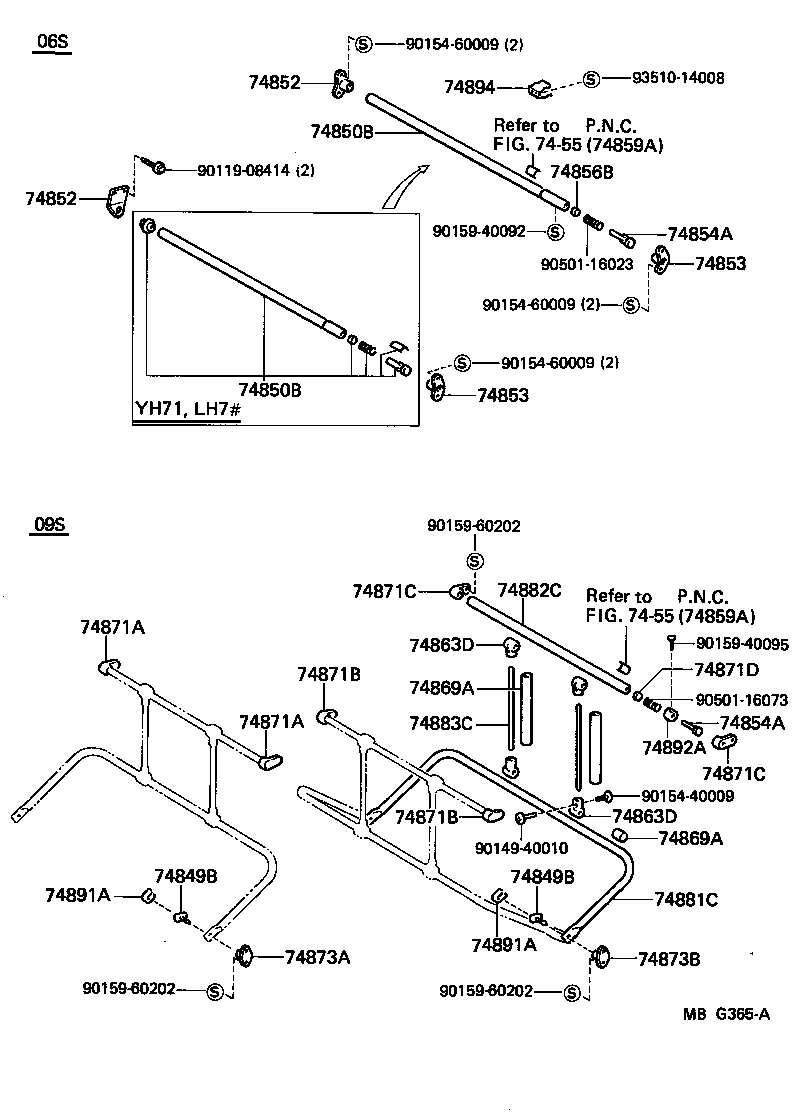

ILLUST NO. 2 OF 2(8212-8508)V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74850B - SEPARATOR SUB-ASSY, REAR | ||||
| 74855-95J0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74855-95J0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74850B - SEPARATOR SUB-ASSY, REAR | ||||
| 74855-95J0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74855-95J0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74852 - BRACKET, SEPARATOR, RH | ||||
| 74855-95A0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74855-95A0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74852 - BRACKET, SEPARATOR, RH | ||||
| 74855-95A0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74855-95A0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74853 - BRACKET, SEPARATOR, LH | ||||
| 74858-95A0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74858-95A0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74853 - BRACKET, SEPARATOR, LH | ||||
| 74858-95A0104 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74858-95A0105 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74854A - STOP, SEPARATOR | ||||
| 74854-95J0005 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74854-95J0004 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74854A - STOP, SEPARATOR | ||||
| 74854-95J0005 |
LH5#,6#,YH50,61..SRF..06S BEIGE,BEIGE |
1 | ||
| 74854-95J0004 |
LH5#,6#,YH50,61..GL..06S BLUE GRAY,BLUE |
1 | ||
| 74856B - PLATE, SPRING SET | ||||
| 74856-95A00 |
LH5#,6#,7#,YH50,61,71..06S |
1 | ||
| 74894 - SPRING, REAR SEPARATOR BAR STOPPER | ||||
| 74894-95J00 |
LH5#,6#,7#,YH50,61,71..06S |
1 | ||
| Common parts | ||||
| 90119-08414 | ||||
| 90149-40010 | ||||
| 90154-40009 | ||||
| 90154-60009 | ||||
| 90159-40092 | ||||
| 90159-40095 | ||||
| 90159-60202 | ||||
| 90501-16023 | ||||
| 90501-16073 | ||||
| 93510-14008 | ||||
| Linked diagrams | ||||
| 7455 | ||||
