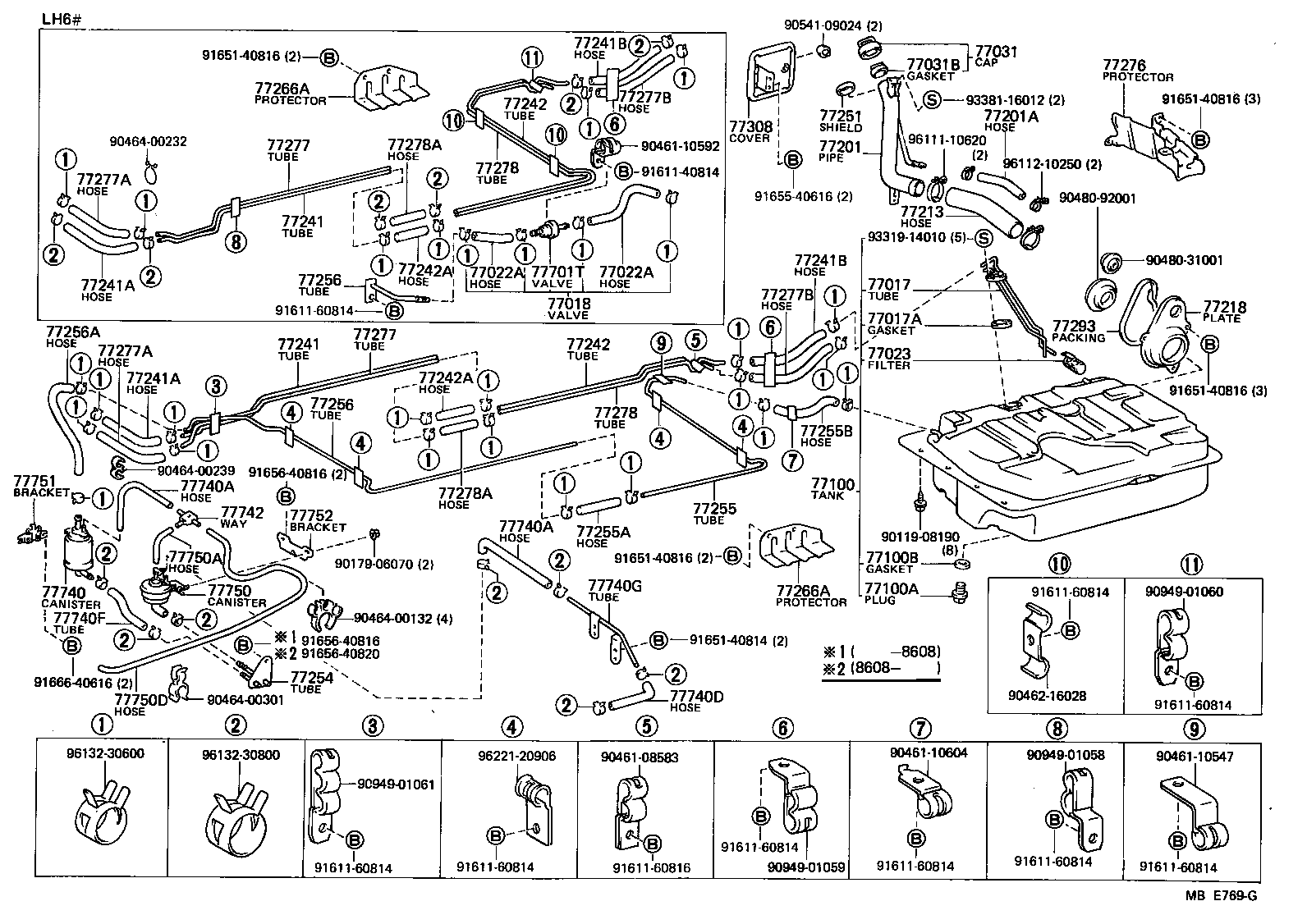

LH60V-QDTFE (1982)
Toyota Hiace Van,Wagon
(8212- )WT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-26040 |
LH60,61..WT |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-14020 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
LH60,61..WT *H,L=90 |
1 | ||
| 95332-06040 |
LH60,61..WT *H,L=340 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06010 |
LH60,61..WT *H,L=90 |
1 | ||
| 95332-06040 |
LH60,61..WT *H,L=340 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-22040 |
LH5#,6#,7# |
1 | ||
| 77023-12050 |
YH5#,6#,71 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
YH5#,6#,71 |
1 | ||
| 77310-35061 |
LH5#,6#,7# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-26070 |
LH6#..WT |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-26050 |
LH60,61,YH61..WT |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-24033 |
LH60,61,YH61..WT *H,L=455 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-26050 |
LH60,61,YH61..WT |
1 | ||
| 77218 - PLATE, FUEL INLET PIPE SET | ||||
| 77218-95J02 |
LH60,61,YH61..WT |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26250 |
LH60,61..WT |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26250 |
LH60,61..WT |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 95332-08030 |
LH5#,6#,7# *H,L=280,内径=7.6 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 95332-08030 |
LH5#,6#,7# *H,L=280,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LH60,61..WT *H,L=280,内径=7.6 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08030 |
LH60,61..WT *H,L=280,内径=7.6 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-26060 |
LH60,61..WT |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-26060 |
LH60,61..WT |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
LH60,61,YH61..WT *H,L=180 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
LH60,61,YH61..WT *H,L=180 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77263-26060 |
YH5#,6#,71 |
1 | ||
| 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) | ||||
| 95332-06020 |
YH5#,6#,71 *H,L=180 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-26040 |
LH60,61..WT |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-26040 |
LH60,61..WT |
1 | ||
| 77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3) | ||||
| 95332-06060 |
YH5#,6#,71 *H,L=500 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-26020 |
LH60,61,YH61..WT |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-26020 |
LH60,61,YH61..WT |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26060 |
LH60,61,YH61..WT |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-26130 |
LH60,61..WT |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-26130 |
LH60,61..WT |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-13001 |
LH5#,6#,7# L=460 |
1 | ||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-13001 |
LH5#,6#,7# L=460 |
1 | ||
| 95332-06040 |
YH5#,6#,71 *H,L=380 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LH5#,6#,7#,YH5#,6#,71..COM,V *H,L=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95332-06030 |
LH5#,6#,7#,YH5#,6#,71..COM,V *H,L=300 |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-26140 |
LH60,61..WT |
1 | ||
| 77278 - TUBE, FUEL RETURN, NO.2 | ||||
| 77256-26140 |
LH60,61..WT |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-08020 |
LH60,61..WT *H,L=180,内径=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95332-08020 |
LH60,61..WT *H,L=180,内径=7.6 |
1 | ||
| 77293 - PACKING, FUEL TANK, LOWER | ||||
| 77293-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77340-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
LH5#,6#,7# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-60050 |
YH5#,6#,71 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-14096 |
YH5#,6#,71 *H,L=490,TO FEED PIPE |
1 | ||
| 95411-10630 |
YH5#,6#,71 *H,L=100,ﾏｰｸ=#6,3 WAY |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-14096 |
YH5#,6#,71 *H,L=490,TO FEED PIPE |
1 | ||
| 95411-10630 |
YH5#,6#,71 *H,L=100,ﾏｰｸ=#6,3 WAY |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 90445-14102 |
YH5#,6#,71 *H,L=60 |
1 | ||
| 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 95332-08060 |
YH5#,6#,71 *H,L=440 |
1 | ||
| 77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 23818-72010 |
YH5#,6#,71 |
1 | ||
| 77742 - WAY, 3(FOR CANISTER) | ||||
| 90413-04005 |
YH5#,6#,71 |
1 | ||
| 77750 - CANISTER ASSY, CHARCOAL | ||||
| 77740-26050 |
YH5#,6#,71 |
1 | ||
| 77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER) | ||||
| 95411-10630 |
YH5#,6#,71 *H,L=200 |
1 | ||
| 77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER) | ||||
| 90445-08224 |
YH5#,6#,71 *H,L=1300 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-32010 |
YH5#,6#,71 |
1 | ||
| 77752 - BRACKET, CHARCOAL CANISTER SUPPORT | ||||
| 77752-26010 |
YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90179-06070 | ||||
| 90461-08583 | ||||
| 90461-10547 | ||||
| 90461-10592 | ||||
| 90461-10604 | ||||
| 90462-16028 | ||||
| 90464-00132 | ||||
| 90464-00232 | ||||
| 90464-00239 | ||||
| 90464-00301 | ||||
| 90480-31001 | ||||
| 90480-92001 | ||||
| 90541-09024 | ||||
| 90949-01058 | ||||
| 90949-01059 | ||||
| 90949-01060 | ||||
| 90949-01061 | ||||
| 91611-40814 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91655-40616 | ||||
| 91656-40816 | ||||
| 91656-40820 | ||||
| 91666-40616 | ||||
| 93319-14010 | ||||
| 93381-16012 | ||||
| 96111-10620 | ||||
| 96112-10250 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
| 96221-20906 | ||||
