LH60V-QDTFE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

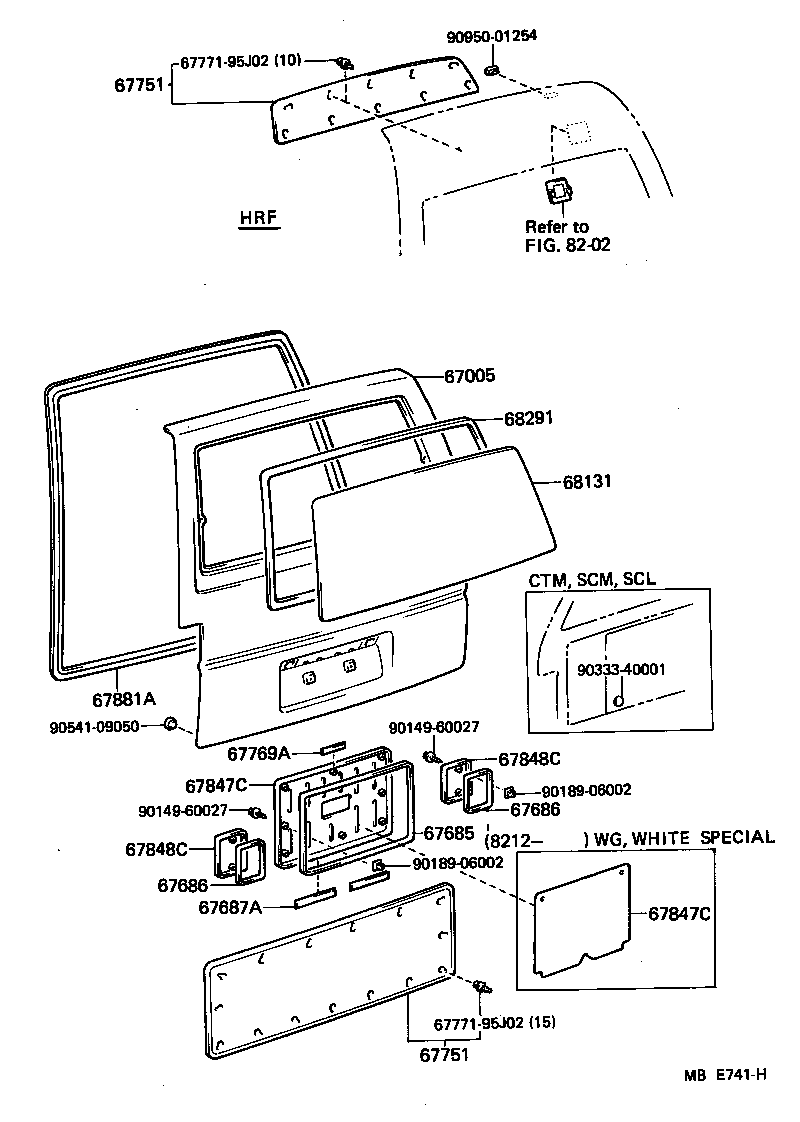

Click highlighted areas on diagram

diagram 67005 67685 67686 67686 67687A 67751 67751 67769A 6777195J02 6777195J02 67847C 67847C 67848C 67848C 67881A 68131 68291 8202 9014960027 9014960027 9018906002 9018906002 9033340001 9054109050 9095001254
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-95J01

LH5#,6#,YH50,52,6#..(COM,V)..SRF..(DLX,GL)

W/*RWD,*RW

 1
67005-95J00

LH5#,6#,YH50,52,6#..(COM,V)..SRF..(CTD,DLX,STD)

 1
67005-95J02

LH5#,6#,YH5#,6#..(COM,V)..SRF..(CTD,DLX,GL)

W/*RUM,*RWD,*RW

 1
67685 - PACKING, BACK DOOR SERVICE HOLE, NO.1
67685-95J00

YH61..STD;LH5#,6#,7#,YH5#,6#,71..COM,V

 2
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67519-95A00

YH61..STD;LH5#,6#,7#,YH50,52,6#,71..COM,V

 2
67686 - PACKING, BACK DOOR SERVICE HOLE, NO.2
67519-95A00

YH61..STD;LH5#,6#,7#,YH50,52,6#,71..COM,V

 2
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J00

LH50,60,70,YH50,61,71..COM,V

 1
67847C - COVER, BACK DOOR SERVICE HOLE, NO.1
67847-95J00

LH50,60,70,YH50,61,71..COM,V

 1
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-95J00

YH61..STD;LH5#,6#,7#,YH5#,6#,71..COM,V

 2
67848C - COVER, BACK DOOR SERVICE HOLE, NO.2
67848-95J00

YH61..STD;LH5#,6#,7#,YH5#,6#,71..COM,V

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-95J00

LH5#,6#,YH5#,6#..MRF,SRF

 1
68131 - GLASS, BACK DOOR
68131-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,DLX,STD

*TEM,厚さ=4.0,*TEM,T=4.0

 1
68131-95J01

LH50,51,60,61,7#,YH5#,6#,71..(V,WG)..(CTD,DLX,GL)

*EHT,厚さ=4.0,*EHT,T=4.0

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-95J00

YH61..STD;LH5#,6#,7#,YH50,52,6#,71..(COM,V)..(CTD,DLX,STD)

 1
Common parts
67771-95J02
90149-60027
90189-06002
90333-40001
90541-09050
90950-01254
Linked diagrams
8202
