LH60V-QDF (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )LH60,61,YH61..ST ; (8212- )LH5#,66,7#,YH5#,62,71..COM,V

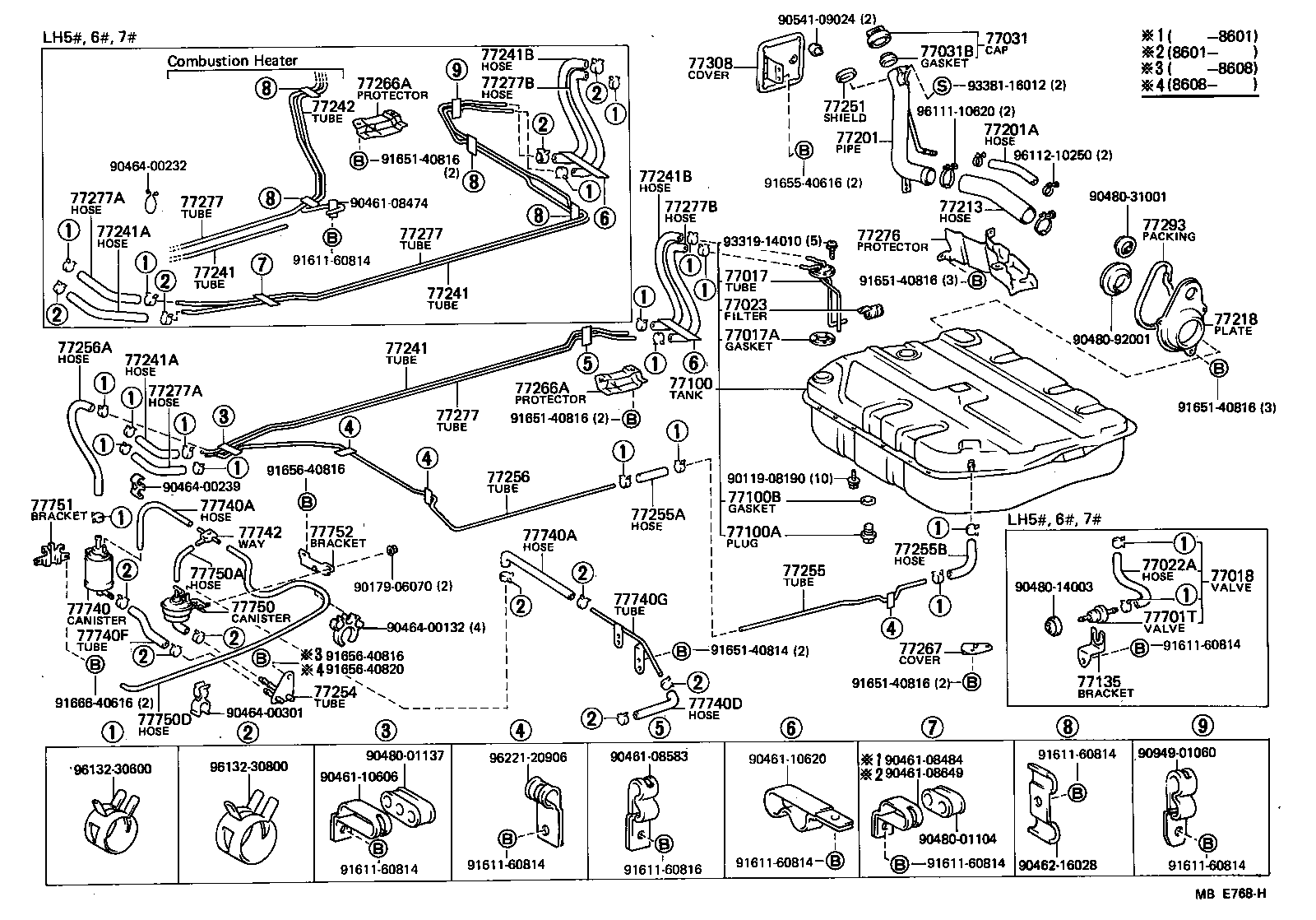

Click highlighted areas on diagram

diagram 77017 77017A 77018 77022A 77023 77031 77031B 77100 77100A 77100B 77135 77201 77201A 77213 77218 77241 77241 77241 77241A 77241A 77241B 77241B 77242 77251 77254 77255 77255A 77255B 77256 77256A 77266A 77266A 77267 77276 77277 77277 77277 77277A 77277A 77277B 77277B 77293 77308 77701T 77740 77740A 77740A 77740D 77740F 77740G 77742 77750 77750A 77750D 77751 77752 9011908190 9017906070 9046108474 9046108484 9046108583 9046108649 9046110606 9046110620 9046216028 9046400132 9046400232 9046400239 9046400301 9048001104 9048001137 9048014003 9048031001 9048092001 9054109024 9094901060 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160814 9161160816 9165140814 9165140816 9165140816 9165140816 9165140816 9165140816 9165540616 9165640816 9165640816 9165640820 9166640616 9331914010 9338116012 9611110620 9611210250 9613230600 9613230800 9622120906
Part # Description Qty Price
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-26020

LH5#,6#,7#..(COM,V)..ST

 1
77017A - GASKET, FUEL TANK VENT
77169-14020

LH5#,6#,7#,YH5#,6#,71

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-26080

LH5#,6#,7#..(COM,V)..ST

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
90923-01274

LH5#,6#,7#..(COM,V)..ST

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-22040

LH5#,6#,7#

 1
77023-12050

YH5#,6#,71

 1
77031 - CAP ASSY, FUEL TANK
77310-12100

YH5#,6#,71

 1
77310-35061

LH5#,6#,7#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

LH5#,6#,7#,YH5#,6#,71

 1
77100 - TANK ASSY, FUEL
77100-26110

YH50,52,6#,71..ST

 1
77100-26120

LH5#,6#,7#..(COM,V)..ST

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

LH5#,6#,7#,YH5#,6#,71

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

LH5#,6#,7#,YH5#,6#,71

 1
77135 - BRACKET, CHECK VALVE
77135-26010

LH5#,6#,7#..ST

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-26040

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
90445-24012

LH5#,6#,7#,YH5#,6#,71..ST

*H,L=340

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-26040

LH5#,6#,7#,YH50,52,6#,71..(COM,V)..ST

 1
77218 - PLATE, FUEL INLET PIPE SET
77218-95J00

LH5#,6#,7#,YH5#,61,71..(COM,V)..ST

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-26190

LH6#..ST

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-26190

LH6#..ST

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-26190

LH6#..ST

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06040

YH5#,6#,71

*H,L=380

 1
95332-08030

LH5#,6#,7#

*H,L=280,内径=7.6

 1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
95332-06040

YH5#,6#,71

*H,L=380

 1
95332-08030

LH5#,6#,7#

*H,L=280,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

LH60..ST;LH5#,61,66,7#..(COM,V)..ST

*H,L=300,内径=7.6

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
95332-08030

LH60..ST;LH5#,61,66,7#..(COM,V)..ST

*H,L=300,内径=7.6

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-10010

LH5#,6#,7#,YH5#,6#,71

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-26060

YH5#,6#,71

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

YH5#,6#,71

*H,L=180

 1
77256 - TUBE, FUEL EMISSION, NO.3
77263-26030

YH5#,6#,71..ST

 1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95332-06060

YH5#,6#,71

*H,L=500

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-26010

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-26010

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
77267 - COVER, FUEL EVAPORATIVE TUBE
77267-26020

LH5#,6#,7#,YH5#,6#,71..(COM,V)..ST

 1
77276 - PROTECTOR, FUEL HOSE
77276-26050

LH5#,6#,7#,YH5#,6#,71..ST

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-26050

LH6#..ST

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-26050

LH6#..ST

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-26050

LH6#..ST

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-13001

LH5#,6#,7#

L=460

 1
95332-06040

YH5#,6#,71

*H,L=380

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
90447-13001

LH5#,6#,7#

L=460

 1
95332-06040

YH5#,6#,71

*H,L=380

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

LH5#,6#,7#,YH5#,6#,71..COM,V

*H,L=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

LH5#,6#,7#,YH5#,6#,71..COM,V

*H,L=300

 1
77293 - PACKING, FUEL TANK, LOWER
77293-95J00

LH5#,6#,7#,YH5#,6#,71

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77340-95J00

LH5#,6#,7#,YH5#,6#,71

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

LH5#,6#,7#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-60050

YH5#,6#,71

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-14096

YH5#,6#,71

*H,L=490,TO FEED PIPE

 1
95411-10630

YH5#,6#,71

*H,L=100,ﾏｰｸ=#6,3 WAY

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
90445-14096

YH5#,6#,71

*H,L=490,TO FEED PIPE

 1
95411-10630

YH5#,6#,71

*H,L=100,ﾏｰｸ=#6,3 WAY

 1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
90445-14102

YH5#,6#,71

*H,L=60

 1
77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95332-08060

YH5#,6#,71

*H,L=440

 1
77740G - TUBE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23818-72010

YH5#,6#,71

 1
77742 - WAY, 3(FOR CANISTER)
90413-04005

YH5#,6#,71

 1
77750 - CANISTER ASSY, CHARCOAL
77740-26050

YH5#,6#,71

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95411-10630

YH5#,6#,71

*H,L=200

 1
77750D - HOSE, FUEL, NO.4 (FOR CHARCOAL CANISTER)
90445-08224

YH5#,6#,71

*H,L=1300

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-32010

YH5#,6#,71

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77752-26010

YH5#,6#,71

 1
Common parts
90119-08190
90179-06070
90461-08474
90461-08484
90461-08583
90461-08649
90461-10606
90461-10620
90462-16028
90464-00132
90464-00232
90464-00239
90464-00301
90480-01104
90480-01137
90480-14003
90480-31001
90480-92001
90541-09024
90949-01060
91611-60814
91611-60816
91651-40814
91651-40816
91655-40616
91656-40816
91656-40820
91666-40616
93319-14010
93381-16012
96111-10620
96112-10250
96132-30600
96132-30800
96221-20906
