LH60V-QDE (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )HRF,SRF

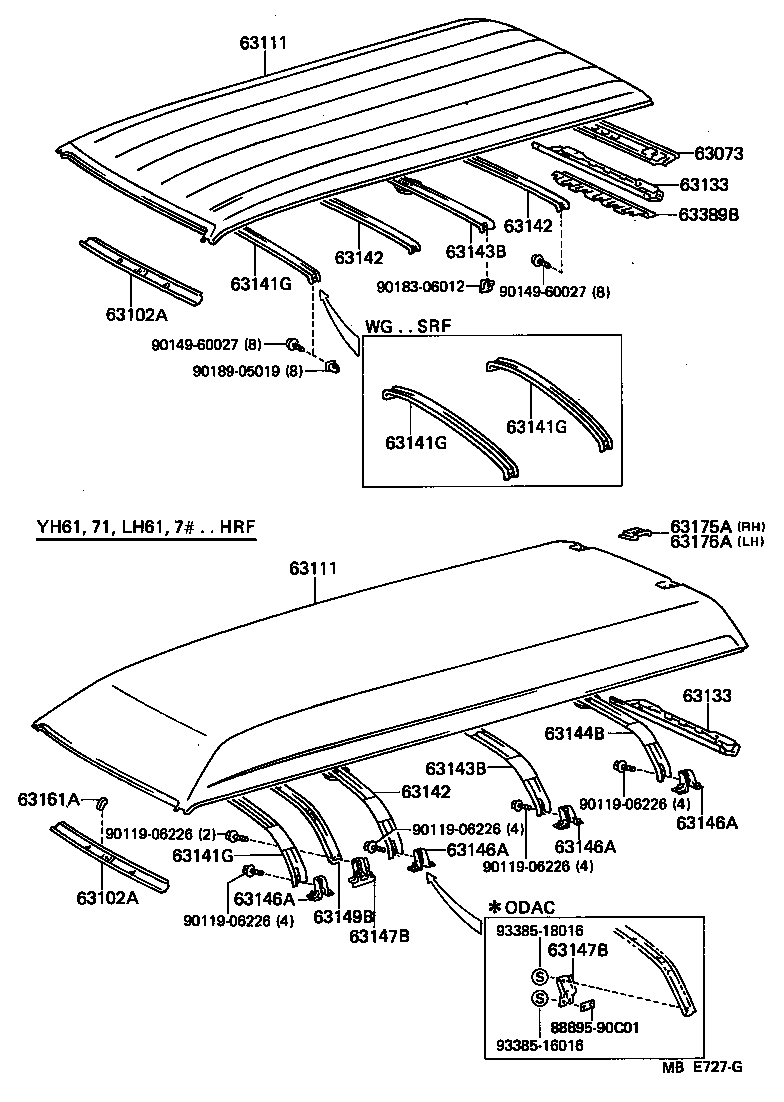

Click highlighted areas on diagram

diagram 63073 63102A 63102A 63111 63111 63133 63133 63141G 63141G 63141G 63141G 63142 63142 63142 63143B 63143B 63144B 63146A 63146A 63146A 63146A 63147B 63147B 63149B 63161A 63175A 63176A 63389B 8889590C01 9011906226 9011906226 9011906226 9011906226 9011906226 9014960027 9014960027 9018306012 9018905019 9338516016 9338518016
Part # Description Qty Price
63073 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER OUTER
63073-95J00

LH5#,6#,YH5#,6#..SRF

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95J00

LH5#,6#,7#,YH5#,6#,71..CTD,DLX,GL,STD

 1
63111 - PANEL, ROOF
63111-95J01

LH6#,YH6#..SRF

 1
63111 - PANEL, ROOF
63111-95J01

LH6#,YH6#..SRF

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-95J00

LH5#,6#,YH5#,6#..SRF..(CTD,DLX,GL,STD)

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-95J00

LH5#,6#,YH5#,6#..SRF..(CTD,DLX,GL,STD)

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95J01

LH5#,6#,YH50,52,6#..V..SRF

 1
63141-95J04

LH5#,6#,YH50,52,6#..V..SRF

W/CARTAIN SEPARATOR

 1
63141-95J04

LH50,60,70,YH50,61,71..03S,06S

W/CURTAIN SEPARATOR

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95J01

LH5#,6#,YH50,52,6#..V..SRF

 1
63141-95J04

LH5#,6#,YH50,52,6#..V..SRF

W/CARTAIN SEPARATOR

 1
63141-95J04

LH50,60,70,YH50,61,71..03S,06S

W/CURTAIN SEPARATOR

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95J01

LH5#,6#,YH50,52,6#..V..SRF

 1
63141-95J04

LH5#,6#,YH50,52,6#..V..SRF

W/CARTAIN SEPARATOR

 1
63141-95J04

LH50,60,70,YH50,61,71..03S,06S

W/CURTAIN SEPARATOR

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95J01

LH5#,6#,YH50,52,6#..V..SRF

 1
63141-95J04

LH5#,6#,YH50,52,6#..V..SRF

W/CARTAIN SEPARATOR

 1
63141-95J04

LH50,60,70,YH50,61,71..03S,06S

W/CURTAIN SEPARATOR

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J00

LH5#,6#,YH5#,6#..SRF

 2
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J00

LH5#,6#,YH5#,6#..SRF

 2
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J00

LH5#,6#,YH5#,6#..SRF

 2
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63105-95J00

LH5#,6#,YH50,52,6#..V..SRF

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63105-95J00

LH5#,6#,YH50,52,6#..V..SRF

 1
Common parts
88895-90C01
90119-06226
90149-60027
90183-06012
90189-05019
93385-16016
93385-18016
