LH60V-QDB (1982)
Toyota Hiace Van,Wagon

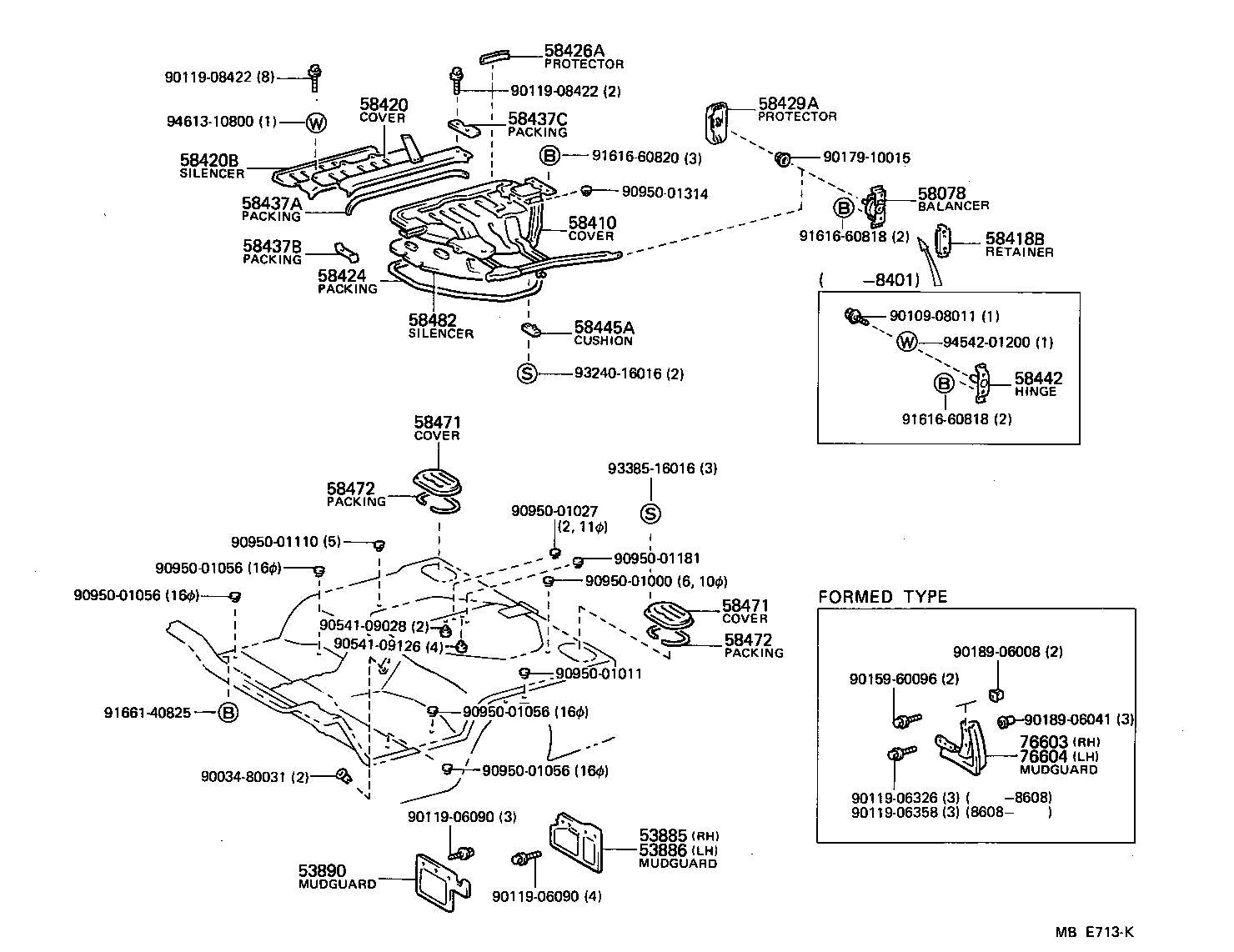

ILLUST NO. 1 OF 2(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53885 - MUDGUARD, FRONT RH | ||||
| 53881-95J00 |
LH5#,6#,7#,YH5#,6#,71..(CTD,CTM,DLX,GL,STD)..ST |
1 | ||
| 53886 - MUDGUARD, FRONT LH | ||||
| 53882-95J00 |
LH5#,6#,7#,YH5#,6#,71..(CTD,CTM,DLX,GL,STD)..ST |
1 | ||
| 53890 - MUDGUARD, FENDER APRON, INNER | ||||
| 53887-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
2 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-95J00 |
LH50,60,70,YH5#,61,71..(V,WG)..(4H,4HC,5H) |
1 | ||
| 58401-95J01 |
LH50,60,70,YH5#,61,71..4H,4HC,5H |
1 | ||
| 58418B - RETAINER, ENGINE COVER HINGE, SIDE | ||||
| 58418-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 58420 - COVER ASSY, ENGINE SERVICE HOLE, NO.2 | ||||
| 58402-95J00 |
LH50,60,70..V,WG |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58468-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58435-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58437A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1 | ||||
| 58477-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58437B - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.2 | ||||
| 58478-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58437C - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.3 | ||||
| 58479-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 58442 - HINGE, ENGINE COVER REAR FEMALE | ||||
| 58428-95J01 |
LH50,60,YH50,61..03S |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
LH5#,6#,7#,YH5#,6#,71 |
2 | ||
| 58471 - COVER, SEAT FLOOR SERVICE HOLE | ||||
| 58407-95J00 |
LH5#,6#,7#,YH5#,6#,71 RH |
1 | ||
| 58471-95J01 |
LH5#,6#,7#,YH5#,6#,71 LH |
1 | ||
| 58471 - COVER, SEAT FLOOR SERVICE HOLE | ||||
| 58407-95J00 |
LH5#,6#,7#,YH5#,6#,71 RH |
1 | ||
| 58471-95J01 |
LH5#,6#,7#,YH5#,6#,71 LH |
1 | ||
| 58472 - PACKING, SEAT FLOOR SERVICE HOLE | ||||
| 58457-95J00 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 58472 - PACKING, SEAT FLOOR SERVICE HOLE | ||||
| 58457-95J00 |
LH5#,6#,71,YH5#,6#,71 |
2 | ||
| 58482 - SILENCER, ENGINE COVER | ||||
| 58467-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76603-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76604-95J00 |
LH5#,6#,7#,YH5#,6#,71..ST |
1 | ||
| Common parts | ||||
| 90034-80031 | ||||
| 90109-08011 | ||||
| 90119-06090 | ||||
| 90119-06326 | ||||
| 90119-06358 | ||||
| 90119-08422 | ||||
| 90159-60096 | ||||
| 90179-10015 | ||||
| 90189-06008 | ||||
| 90189-06041 | ||||
| 90541-09028 | ||||
| 90541-09126 | ||||
| 90950-01000 | ||||
| 90950-01011 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01110 | ||||
| 90950-01181 | ||||
| 90950-01314 | ||||
| 91616-60818 | ||||
| 91616-60820 | ||||
| 91661-40825 | ||||
| 93240-16016 | ||||
| 93385-16016 | ||||
| 94542-01200 | ||||
| 94613-10800 | ||||

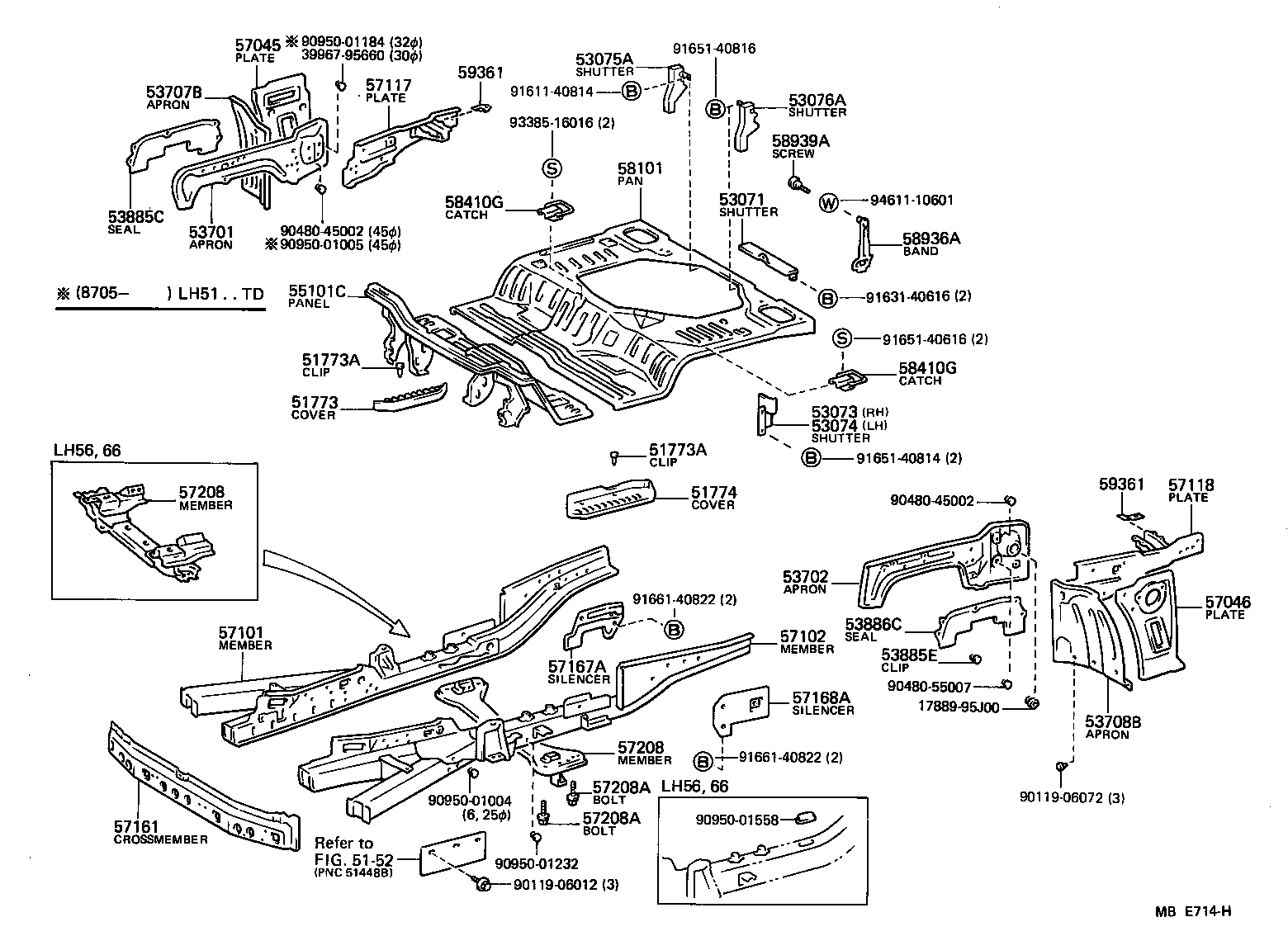

ILLUST NO. 2 OF 2(8212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51773 - COVER, STEP PLATE, OUTER RH | ||||
| 51773-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-08008 |
LH5#,6#,7#,YH5#,6#,71 |
4 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-08008 |
LH5#,6#,7#,YH5#,6#,71 |
4 | ||
| 51774 - COVER, STEP PLATE, OUTER LH | ||||
| 51774-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 53071 - SHUTTER SUB-ASSY, HOT AIR, UPPER | ||||
| 53071-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 53073 - SHUTTER SUB-ASSY, HOT AIR SIDE, RH | ||||
| 53073-95J01 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 53074 - SHUTTER SUB-ASSY, HOT AIR SIDE, LH | ||||
| 53074-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95J02 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95J00 |
YH5#,6#,71 COLD SPEC |
1 | ||
| 53702-95J01 |
LH50,51,60,61,7# |
1 | ||
| 53702-95J02 |
YH5#,6#,71..COM,V |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-95J02 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-95J01 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 53885E - CLIP, FRONT APRON MUDGUARD | ||||
| 90467-07040 |
LH5#,6#,7#,YH5#,6#,71 |
10 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-95J00 |
LH50,51,60,61,7#,YH5#,6#,71 |
1 | ||
| 55101C - PANEL SUB-ASSY, TOE BOARD | ||||
| 55101-95J00 |
LH50,60,70,YH5#,61,71 |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-95J00 |
LH70,YH51,71;LH50,60,YH50,61..V4D;LH50,60,YH61..COM,WG |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-95J02 |
LH70,YH71..VSG;LH50,60,YH5#,61..SRF W/*EL |
1 | ||
| 57046-95J01 |
LH50,60,70,YH5#,61,71..HRF,SRF |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-95J00 |
LH50,60,70,YH5#,61,71..ST |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-95J03 |
LH50,60,70,YH50,61,71..(COM,V)..ST |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57107-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(03S,06S)..ST |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57108-95J00 |
LH5#,6#,7#,YH50,52,6#,71..(03S,06S)..ST |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-95J00 |
LH5#,6#,7#,YH50,52,6#,71..COM,V |
1 | ||
| 57208 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51021-95J00 |
YH5#,6#,71 |
1 | ||
| 51021-95J01 |
LH50,51,60,61,7# |
1 | ||
| 57208 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51021-95J00 |
YH5#,6#,71 |
1 | ||
| 51021-95J01 |
LH50,51,60,61,7# |
1 | ||
| 57208A - BOLT, ENGINE FRONT MOUNTING MEMBER | ||||
| 90105-14019 |
LH50,51,60,61,7#,YH5#,6#,71 L=173 |
4 | ||
| 90105-14018 |
LH50,51,60,61,7#,YH5#,6#,71 L=56 |
2 | ||
| 57208A - BOLT, ENGINE FRONT MOUNTING MEMBER | ||||
| 90105-14019 |
LH50,51,60,61,7#,YH5#,6#,71 L=173 |
4 | ||
| 90105-14018 |
LH50,51,60,61,7#,YH5#,6#,71 L=56 |
2 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95J00 |
LH50,60,70,YH5#,61,71..4H,4HC,5H |
1 | ||
| 58410G - CATCH, ENGINE SERVICE HOLE COVER | ||||
| 71901-95709 |
LH50,60,70,YH5#,61,71 CENTER |
1 | ||
| 71902-95J00 |
LH50,60,70,YH5#,61,71 LH |
1 | ||
| 58410G - CATCH, ENGINE SERVICE HOLE COVER | ||||
| 71901-95709 |
LH50,60,70,YH5#,61,71 CENTER |
1 | ||
| 71902-95J00 |
LH50,60,70,YH5#,61,71 LH |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-95J0005 |
LH50,60,70,YH5#,61,71..DLX,GL,STD BEIGE,BEIGE |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
LH5#,6#,7#,YH5#,6#,71 |
1 | ||
| Common parts | ||||
| 17889-95J00 | ||||
| 39967-95660 | ||||
| 90119-06012 | ||||
| 90119-06072 | ||||
| 90480-45002 | ||||
| 90480-55007 | ||||
| 90950-01004 | ||||
| 90950-01005 | ||||
| 90950-01184 | ||||
| 90950-01232 | ||||
| 90950-01558 | ||||
| 91611-40814 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91661-40822 | ||||
| 93385-16016 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 5152 | ||||
