LH60G-QD (1982)

Toyota Hiace Van,Wagon

Production Dec 1982 - Jan 1984
Engine L
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8212- )

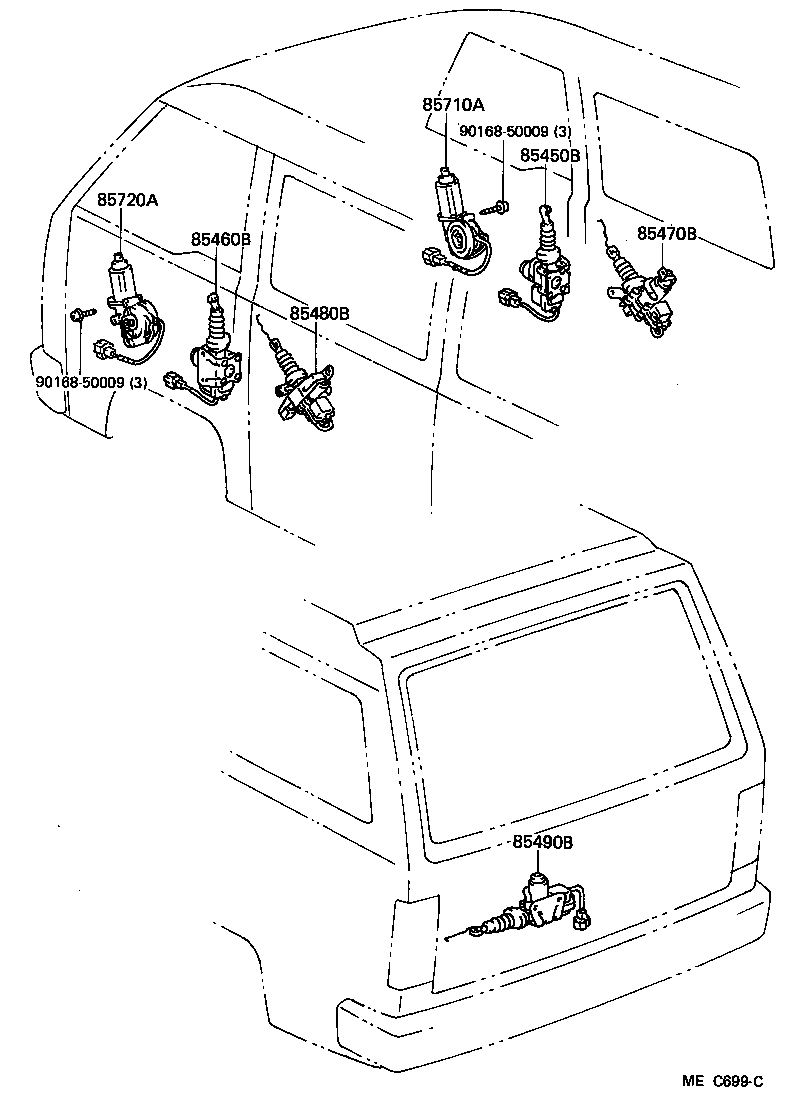

Click highlighted areas on diagram

diagram 85450B 85460B 85470B 85480B 85490B 85710A 85720A 9016850009 9016850009
Part # Description Qty Price
85450B - MOTOR ASSY, DOOR CONTROL, FRONT RH
85450-95J00

LH50,60,YH51,61..WG..(CTM,DLX,SCM)

 1
85460B - MOTOR ASSY, DOOR CONTROL, FRONT LH
85460-95J00

LH50,60,YH51,61..WG..(CTM,DLX,SCM)

 1
85480B - MOTOR ASSY, DOOR CONTROL, REAR LH
85480-95J00

LH50,60,YH51,61..WG..(CTM,DLX,SCM)

 1
85490B - MOTOR ASSY, BACK DOOR CONTROL
85490-95J00

LH50,60,YH51,61..WG..(CTM,DLX,SCM)

 1
Common parts
90168-50009
